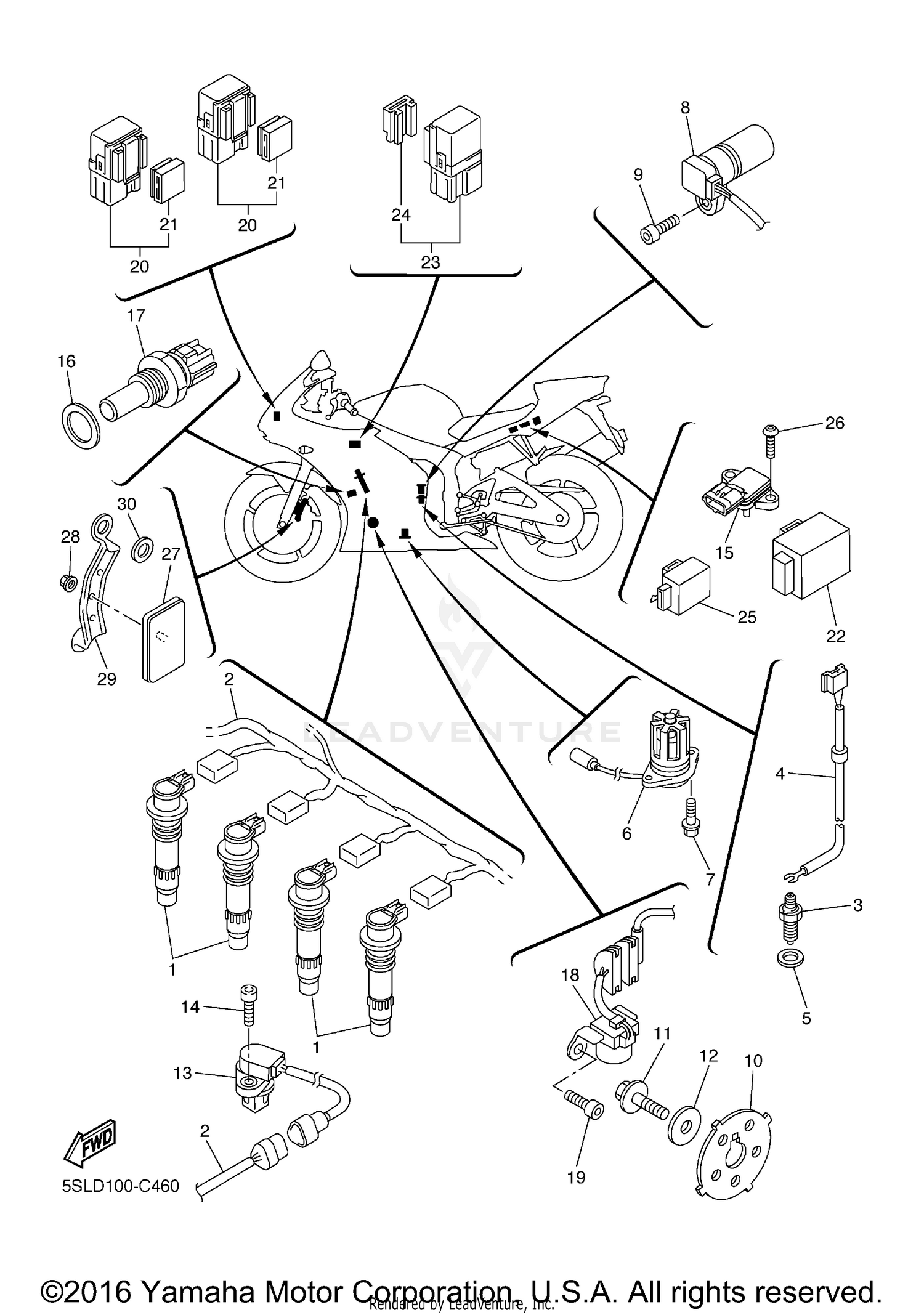

Electrical 1 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
IGNITION COIL ASSY
5SL-82310-20-00
|
$131.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
WIRE, SUB LEAD
5SL-82309-12-00
|
$108.99 | ||
|
Unavailable |
|||
|
#3
NEUTRAL SWITCH ASSY
3GB-82540-01-00
|
$55.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
WIRE, LEAD
5SL-82541-00-00
Superseded by 2C0-82541-00-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
GASKET
90430-10148-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
OIL LEVEL GAUGE ASSY
5SL-85720-01-00
|
$216.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT, FLANGE
95027-06016-00
Superseded by 90105-06696-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
SENSOR, SPEED
5EB-83755-01-00
Superseded by 5EB-83755-02-00
|
$137.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT (4MY)
91317-06016-00
|
$1.15 | ||
|
Available to order. Add to View Price |
|||
|
#10
ROTOR
5SL-81673-00-00
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, FLANGE
90105-08386-00
Superseded by 90105-08113-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER, PLATE
90201-08753-00
Superseded by 90201-081R9-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
SENSOR, CAM POSITION
5PW-85896-10-00
Superseded by 5PW-85896-12-00
|
$119.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT
90110-06117-00
Superseded by 91317-06020-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
SENSOR, PRESSURE
5VX-82380-00-00
|
$220.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER, PLATE
90201-12790-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
THERMOSENSOR ASSY
8CC-85790-01-00
|
$91.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
PICK-UP ASSY
5SL-81670-00-00
|
$186.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT (4MY)
90110-06125-00
Superseded by 91317-06016-00
|
$1.15 | ||
|
Unavailable |
|||
|
#20
RELAY ASSY (5JJ-20)
5JJ-81950-20-00
|
$55.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
HOLDER, RELAY
5JJ-81952-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
RELAY ASSY (G8R-30Y-W4)
5VK-81950-40-00
Superseded by 5VK-81950-43-00
|
$62.99 | ||
|
Unavailable |
|||
|
#23
RELAY ASSY (5EA-02)
5EA-81950-20-00
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
HOLDER, RELAY
5EA-81952-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
FLASHER RELAY ASSY
4MY-83350-01-00
Superseded by 4MY-83350-03-00
|
$49.99 | ||
|
Unavailable |
|||
|
#26
BOLT, BUTTON HEAD
92017-05016-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
REFLECTOR ASSY
20G-85110-00-00
Superseded by 23V-85110-00-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
NUT, FLANGE
95707-05500-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
BRACKET, REFLECTOR 1
5SL-85112-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
WASHER, PLATE
90201-08759-00
|
$3.05 | ||
|
Available to order. Add to View Price |
|||
