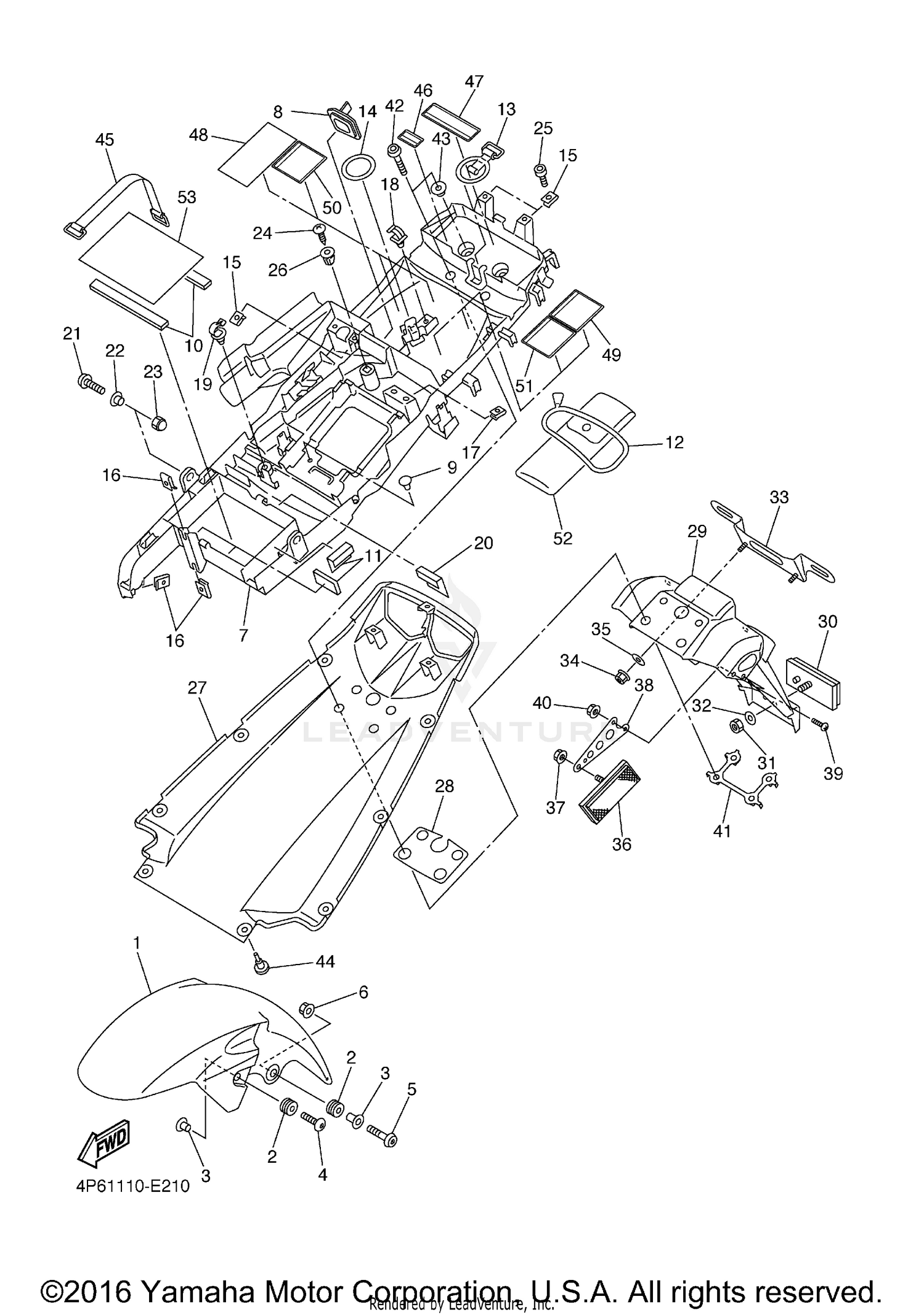

Fender Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FENDER, FRONT
5SL-21511-00-P1
|
$196.99 | ||
|
Available to order. Add to View Price |
|||
|
#
FENDER, FRONT
5SL-21511-00-P4
|
$178.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
GROMMET
90480-14003-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
COLLAR
90387-06057-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT, HEX. SOCKET BUTTON
90111-06040-00
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT, BUTTON HEAD
92014-06025-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
NUT, FLANGE
95707-06500-00
|
$1.15 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOX, BATTERY 1
5SL-8212B-01-00
|
$169.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
COVER, TAILLIGHT
5MT-2172X-00-00
|
$4.65 | ||
|
Available to order. Add to View Price |
|||
|
#9
PLUG
90338-06018-00
Superseded by 90338-07180-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
DAMPER 3
1AE-2834E-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
DAMPER, SEAT
3KJ-24723-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
BAND, TOOL
3YX-21376-00-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
BAND
5SL-21646-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
BAND
5SL-21647-00-00
|
$1.95 | ||
|
Available to order. Add to View Price |
|||
|
#15
NUT, SPRING
90183-05076-00
Superseded by 90183-050A6-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
NUT, SPRING
90183-06053-00
Superseded by 90183-06069-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
NUT, SPRING
90183-04039-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
CLAMP
90464-07259-00
|
$3.05 | ||
|
Available to order. Add to View Price |
|||
|
#19
CLAMP
90464-13249-00
|
$3.25 | ||
|
Available to order. Add to View Price |
|||
|
#20
DAMPER
5JW-2139X-00-00
|
$2.25 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT, BUTTON HEAD
90111-06007-00
Superseded by 92017-06016-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
COLLAR
90387-06022-00
Superseded by 90387-06106-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
NUT, CROWN
90176-06055-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
SCREW, TAPPING
97707-60020-00
|
$0.35 | ||
|
Available to order. Add to View Price |
|||
|
#25
BOLT
91317-05012-00
|
$2.40 | ||
|
Available to order. Add to View Price |
|||
|
#26
PLUG
90338-08226-00
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
|
#27
FENDER, REAR
5SL-21611-00-P4
|
$174.99 | ||
|
Available to order. Add to View Price |
|||
|
#
FENDER, REAR
5SL-21611-00-P1
|
$127.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
SEAL
5SL-21669-00-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
GUARD, MUD
5SL-21629-11-00
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
REAR REFLECTOR ASSY
3Y6-85130-02-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
NUT, U
95607-05100-00
Superseded by 95617-05100-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#32
WASHER, PLATE
90201-05725-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#33
BRACKET, LICENSE
5MT-84751-00-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#34
NUT, U
95607-06100-00
Superseded by 95617-06100-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#35
WASHER, PLATE
90201-06057-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#36
REAR REFLECTOR ASSY
3Y6-85130-02-00
|
$27.99 | ||
|
Unavailable |
|||
|
#37
NUT, FLANGE
95707-05500-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#38
BRACKET, REAR STAY
5PW-21688-00-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#39
SCREW, ROUND HEAD
90150-04041-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#40
NUT, U
95607-04100-00
Superseded by 95617-04100-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#41
BRACKET 6
5PW-2161G-00-00
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#42
BOLT, BUTTON HEAD
92017-06020-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#43
COLLAR
90387-065G0-00
Superseded by 90387-07391-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#44
RIVET
90269-07077-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#45
BAND, BATTERY
5JJ-82131-00-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#46
LABEL, CAUTION
3TB-24877-A0-00
Superseded by 3TB-24877-A1-00
|
$5.49 | ||
|
Unavailable |
|||
|
#47
LABEL, CAUTION
3JJ-28446-A1-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#48
PLATE, EPA (NON CALIFORNIA)
4P6-2179W-00-00
|
$3.65 | ||
|
Unavailable |
|||
|
#
PLATE, EPA 2 (CALIFORNIA)
4P6-2179R-00-00
|
$7.14 | ||
|
Unavailable |
|||
|
#49
PLATE, ROUTING
5SL-21684-00-00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#50
PLATE, ROUTING 2
5SL-21686-00-00
|
$3.00 | ||
|
Available to order. Add to View Price |
|||
|
#51
LABEL
5SL-2178A-00-00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#52
TOOL KIT
5SL-28100-00-00
|
$119.99 | ||
|
Available to order. Add to View Price |
|||
|
#53
MAT 1
5EB-14733-00-00
|
$25.99 | ||
|
Unavailable |
|||
