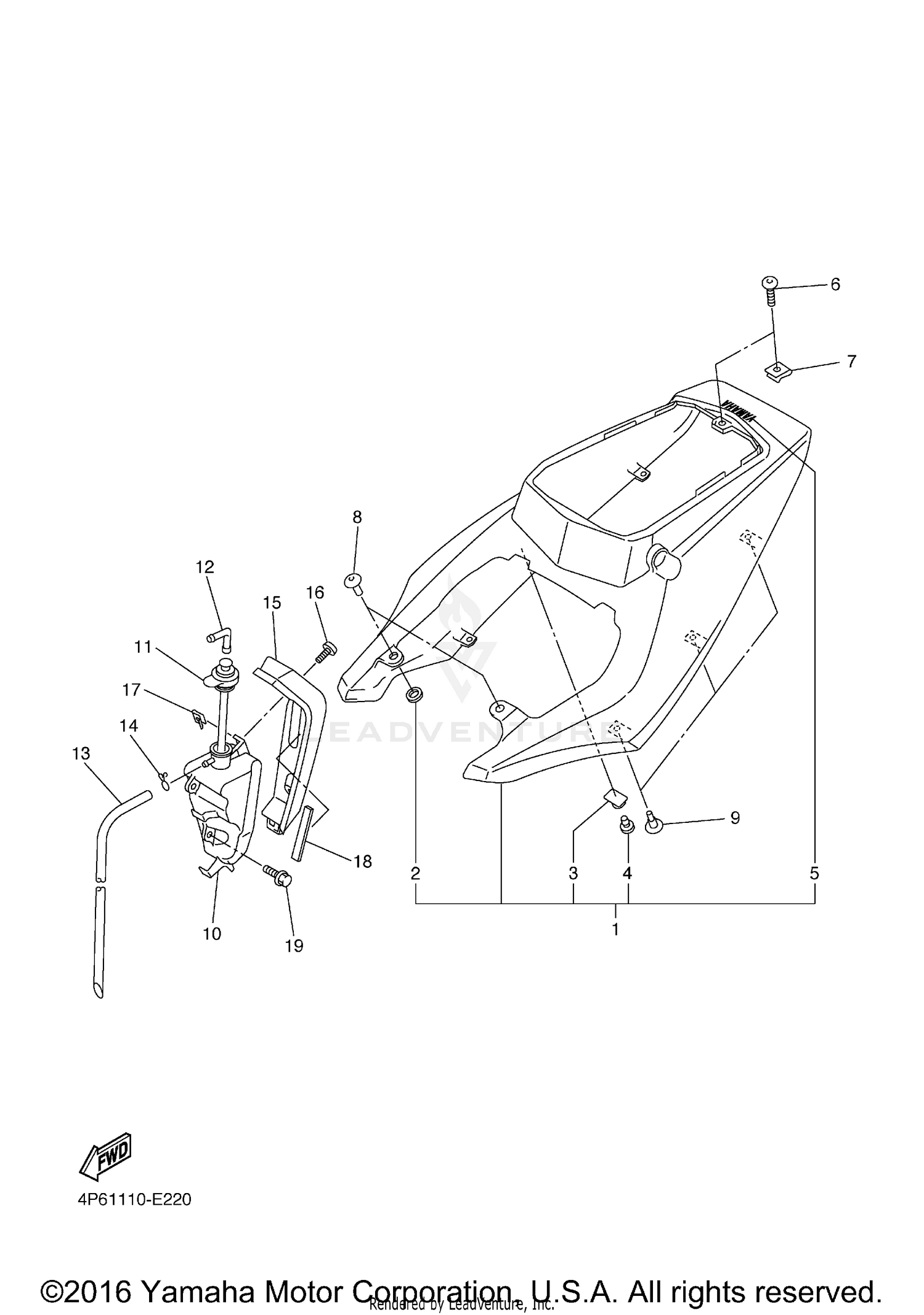

Side Cover Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COVER, SIDE 1
5SL-Y2171-50-P4
|
$569.99 | ||
|
Available to order. Add to View Price |
|||
|
#
COVER, SIDE 1
5SL-Y2171-G0-P1
|
$433.99 | ||
|
Unavailable |
|||
|
#2
DAMPER
5PW-2174X-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
STAY, SIDE COVER 1
5SL-2172E-00-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
PLUG
90338-06018-00
Superseded by 90338-07180-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
EMBLEM, YAMAHA
99247-00080-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#
EMBLEM, YAMAHA
99241-00080-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT,HEX. SOCKET BUT
90110-05201-00
Superseded by 90111-05059-00
|
$2.00 | ||
|
Available to order. Add to View Price |
|||
|
#7
NUT, SPRING
90183-05076-00
Superseded by 90183-050A6-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
RIVET
90269-07076-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
RIVET
90269-07010-00
|
$4.10 | ||
|
Available to order. Add to View Price |
|||
|
#10
TANK, RECOVERY
5SL-21871-00-00
|
$52.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
CAP
4NK-21875-00-00
Superseded by 1B7-21875-00-00
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
ELBOW
26H-21828-00-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
HOSE
90445-08376-00
Superseded by 90445-08684-00
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#14
CLIP
90467-08003-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
COVER
5SL-2172W-00-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, HEX. SOCKET BUTTON
90111-05002-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
NUT, SPRING
90183-050A0-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
DAMPER
5SL-21746-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, WITH WASHER
90119-06059-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
