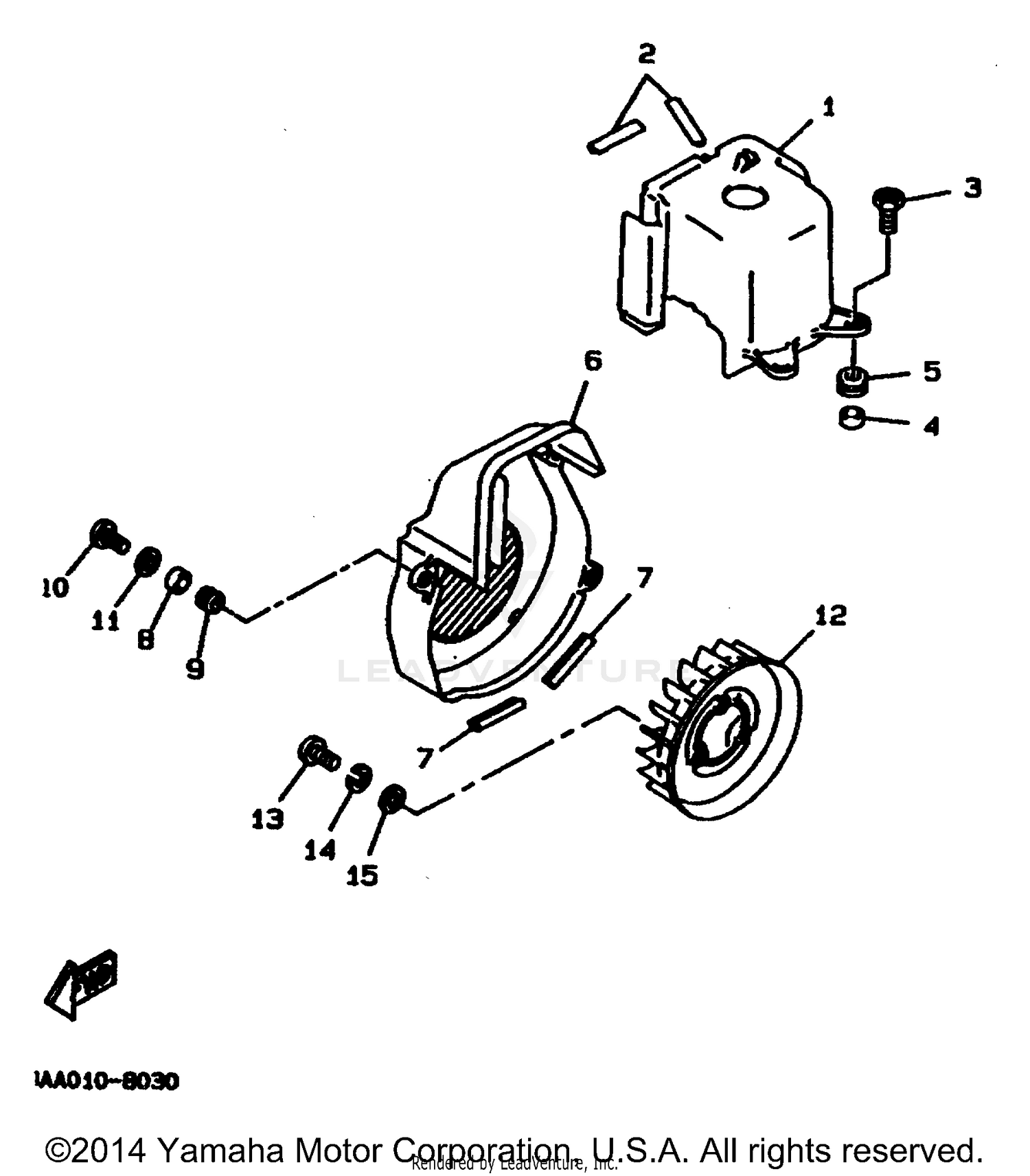

Air Shroud Fan Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
AIR SHROUD, CYLINDER
3VL-E2651-00-00
|
$40.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
DAMPER, AIR SHROUD 1
3VL-E2658-00-00
|
$3.90 | ||
|
Available to order. Add to View Price |
|||
|
#3
SCREW, HEXAGON
90153-06022-00
|
$0.30 | ||
|
Available to order. Add to View Price |
|||
|
#4
COLLAR
90387-06023-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
GROMMET
90480-12237-00
|
$2.40 | ||
|
Available to order. Add to View Price |
|||
|
#6
AIR SHROUD, CYLINDER
3VL-E2653-00-00
|
$57.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
DAMPER, AIR SHROUD 1
3VL-E2658-00-00
|
$3.90 | ||
|
Unavailable |
|||
|
#8
COLLAR
90387-067T6-00
Superseded by 90387-06023-00
|
$8.49 | ||
|
Unavailable |
|||
|
#9
GROMMET
90480-12237-00
|
$2.40 | ||
|
Unavailable |
|||
|
#10
SCREW,PAN HEAD
98517-06020-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER, PLATE
92907-06600-00
|
$2.55 | ||
|
Available to order. Add to View Price |
|||
|
#12
FAN
3VL-E2611-00-00
Superseded by 3VL-E2611-01-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
SCREW, PAN HEAD
98580-06016-00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER, PLATE
92990-06600-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
