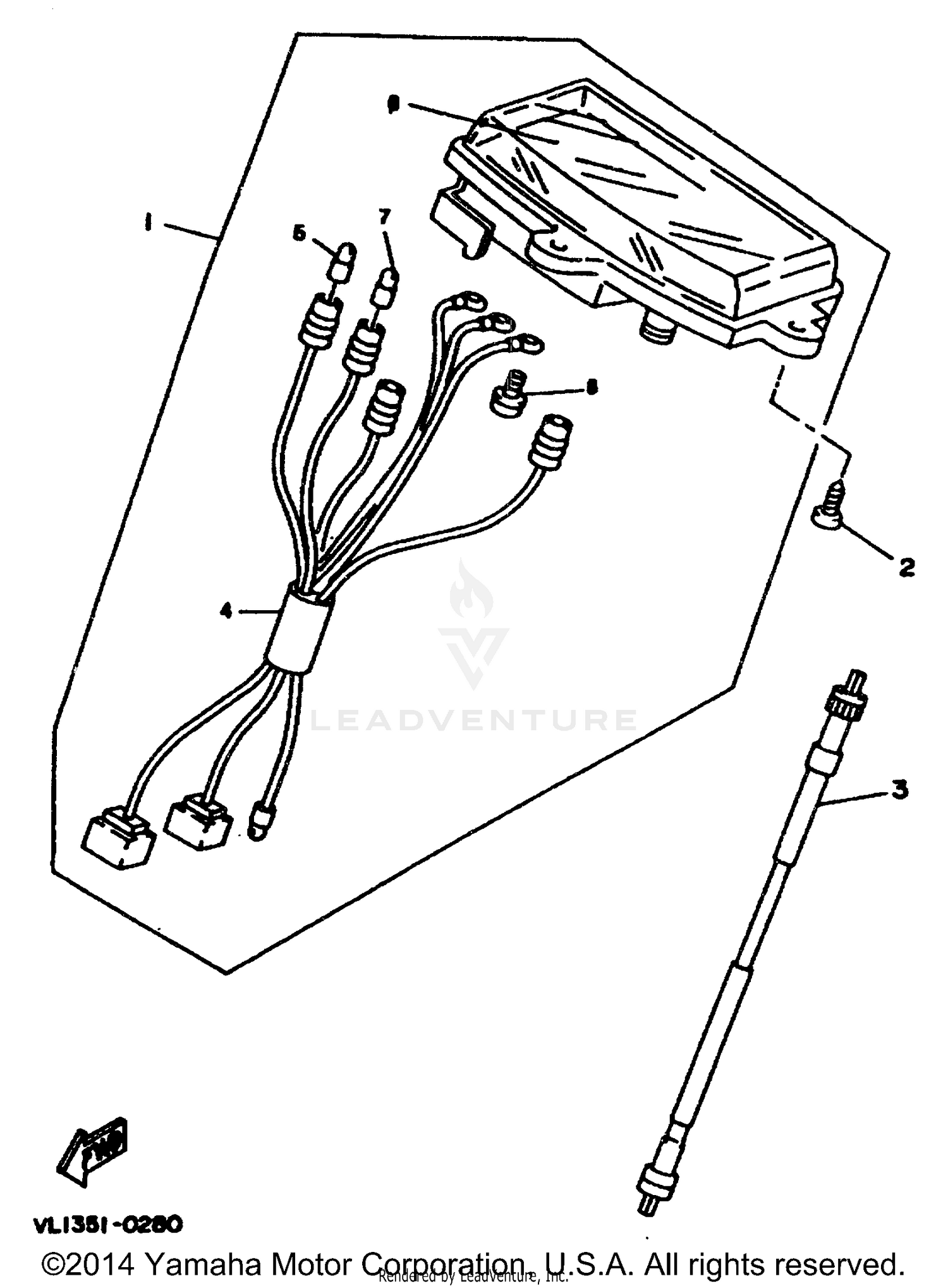

Meter Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SPEEDOMETER ASSY
3ES-83510-00-00
|
$282.99 | ||
|
Unavailable |
|||
|
#2
SCREW, TRUSS HEAD TAPPING
97707-50016-00
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
|
#3
SPEEDOMETER CABLE
3VL-H3550-00-00
|
$35.99 | ||
|
Unavailable |
|||
|
#4
SOCKET CORD ASSY
3ES-83509-00-00
|
$47.99 | ||
|
Unavailable |
|||
|
#5
BULB (12V-1.7W)
3GM-83517-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
LENS SPEEDOMETER
4CU-H3511-00-00
|
$12.49 | ||
|
Unavailable |
|||
|
#7
BULB (12V-3.4W T10)
3UP-H4347-00-00
Superseded by 4G1-84744-00-XX
|
$4.80 | ||
|
Available to order. Add to View Price |
|||
|
#8
SCREW, WITH WASHER
90159-03102-00
|
$1.45 | ||
|
Available to order. Add to View Price |
|||
