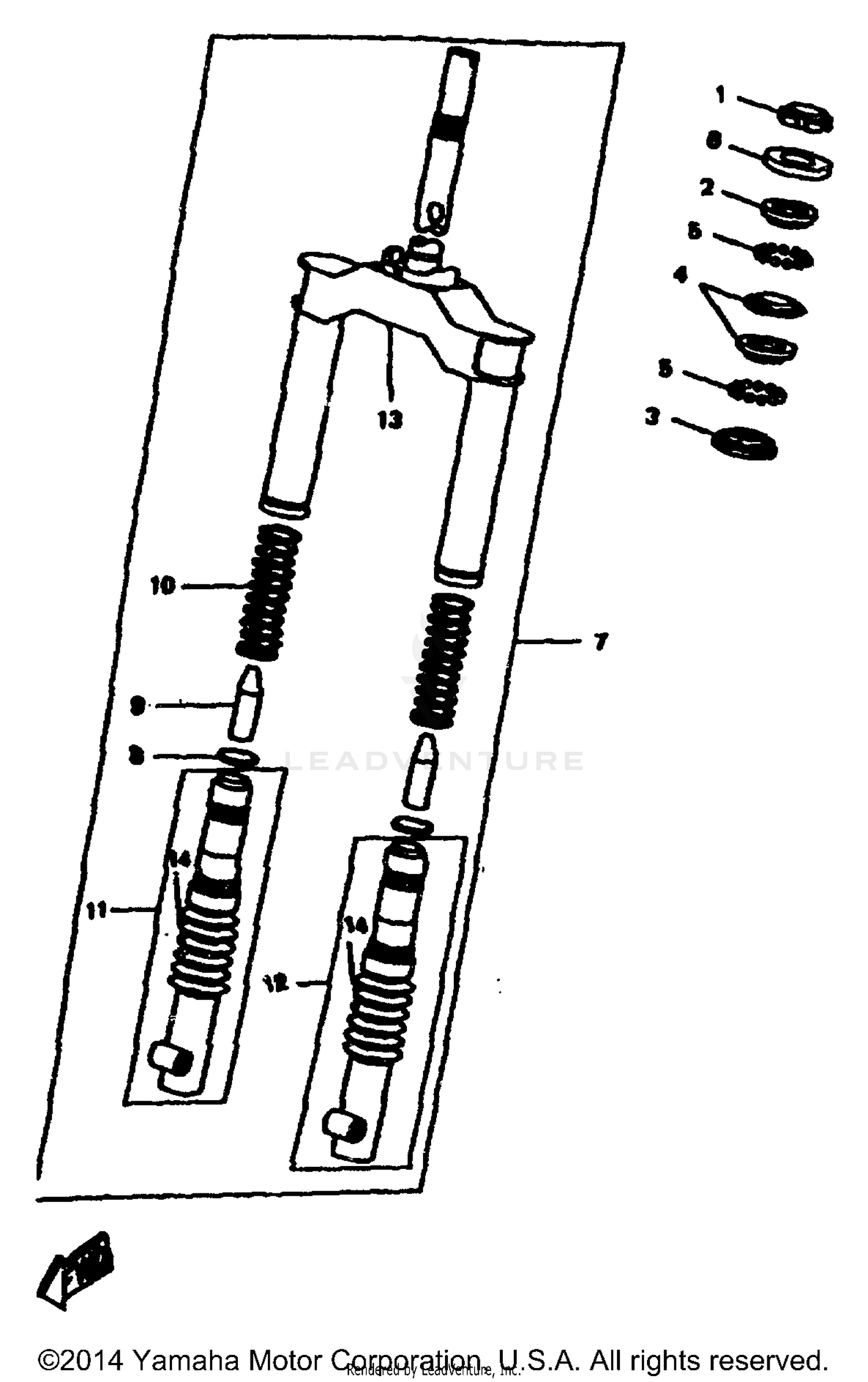

Front Fork Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
NUT
90179-25033-00
Superseded by 90179-25004-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
RACE, BALL 1
22F-23411-01-00
Superseded by BP2-23411-00-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
RACE, BALL 4
22F-23414-01-00
Superseded by BP2-23414-00-00
|
$16.99 | ||
|
Unavailable |
|||
|
#4
RACE, BALL 2
22F-23412-01-00
Superseded by BP2-23412-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
BALL
93503-16010-00
Superseded by 93503-16003-00
|
$2.55 | ||
|
Available to order. Add to View Price |
|||
|
#6
COVER, BALL RACE 2
122-23416-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
FRONT FORK ASSEMBLY
4UY-F3100-20-00
|
$453.99 | ||
|
Unavailable |
|||
|
#8
RUBBER
3VL-F3143-00-00
|
$11.99 | ||
|
Unavailable |
|||
|
#9
RUBBER
3VL-F3143-00-00
|
$11.99 | ||
|
Unavailable |
|||
|
#10
SPRING FRONT FORK
3VL-F3195-00-00
|
$9.99 | ||
|
Unavailable |
|||
|
#11
INNER TUBE COMP. (RIGHT)
3VL-F3120-00-00
|
$118.99 | ||
|
Unavailable |
|||
|
#12
INNER TUBE COMP. (LEFT)
3VL-F3110-00-00
|
$111.99 | ||
|
Unavailable |
|||
|
#13
UNDER BRACKET COMP.
3VL-F3340-20-00
|
$352.99 | ||
|
Unavailable |
|||
|
#14
BOOT
3VL-F3191-00-00
|
$11.99 | ||
|
Unavailable |
|||
