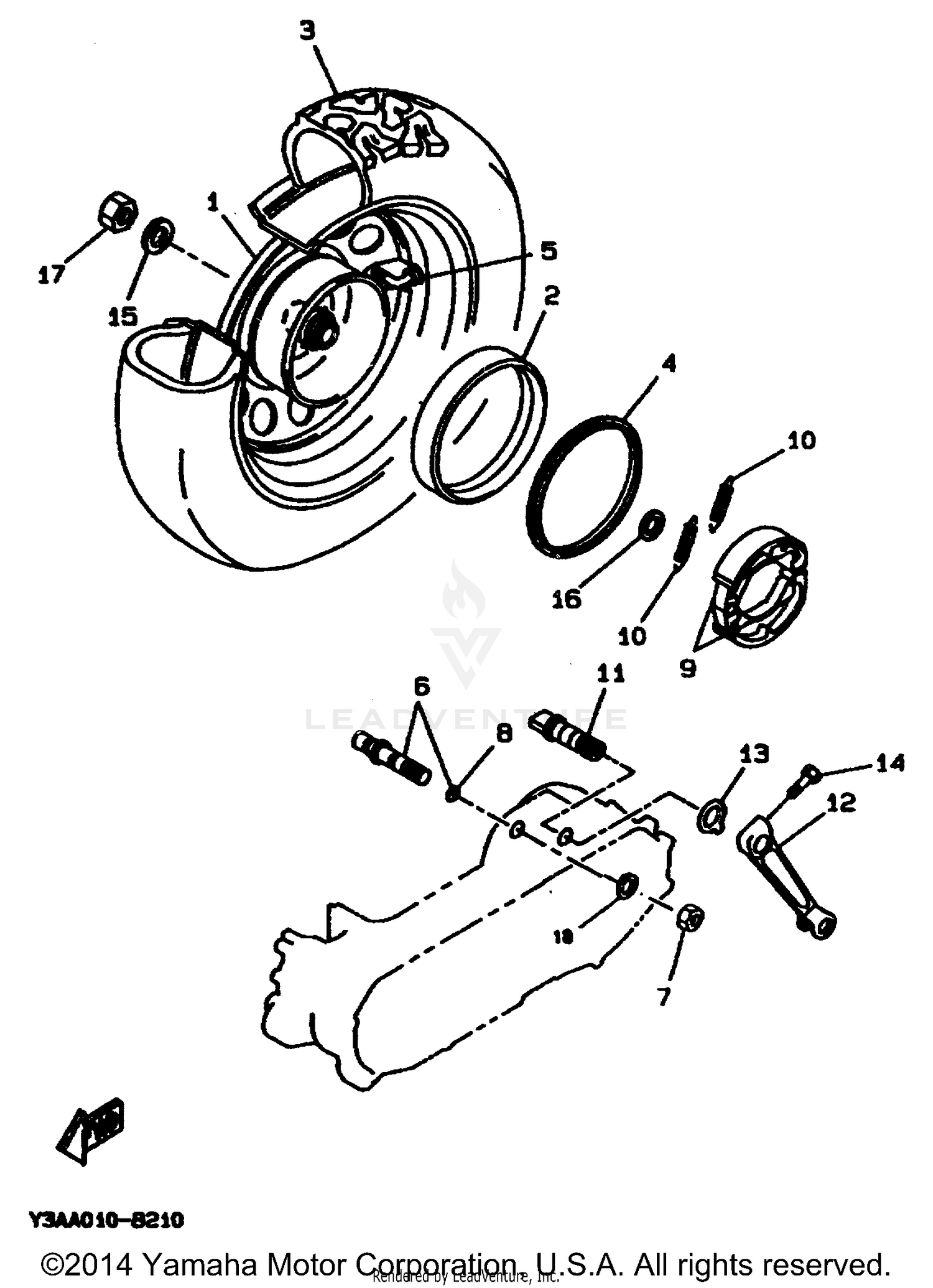

Rear Wheel Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
REAR WHEEL COMP.
3VL-F5390-00-P2
|
$190.99 | ||
|
Unavailable |
|||
|
#2
RING 2
3VL-F5336-00-00
|
$51.99 | ||
|
Unavailable |
|||
|
#3
TIRE
94113-108C6-00
Superseded by 9079Q-04687-00
|
$82.99 | ||
|
Unavailable |
|||
|
#4
RING, WHEEL 1 (LEFT)
3VL-F514A-00-00
|
$21.99 | ||
|
Unavailable |
|||
|
#5
AIR VALVE ASSY
3VL-F5170-10-00
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
PIN, PIVOT
3VL-F5326-00-00
Superseded by 3VL-E5326-00-00
|
$14.49 | ||
|
Unavailable |
|||
|
#7
NUT, WITH WASHER
3VL-F5182-00-00
Superseded by 95704-10500-00
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#8
O-RING
93210-07540-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
BRAKE SHOE KIT
4BX-W2536-00-00
Superseded by 4BX-W253E-00-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
SPRING, TENSION
90506-15260-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
CAMSHAFT
3AA-25351-00-00
|
$27.40 | ||
|
Unavailable |
|||
|
#12
LEVER, CAMSHAFT
3VL-F5355-00-00
|
$71.99 | ||
|
Unavailable |
|||
|
#13
PLATE, INDICATOR
3Y6-2533A-01-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT
90101-06291-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER, PLATE
90201-142M6-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER, PLATE
90201-177G4-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
NUT, SELF-LOCKING
90185-14081-00
Superseded by 90185-14150-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER, WHEEL
3VL-F5384-00-00
|
$3.25 | ||
|
Available to order. Add to View Price |
|||
