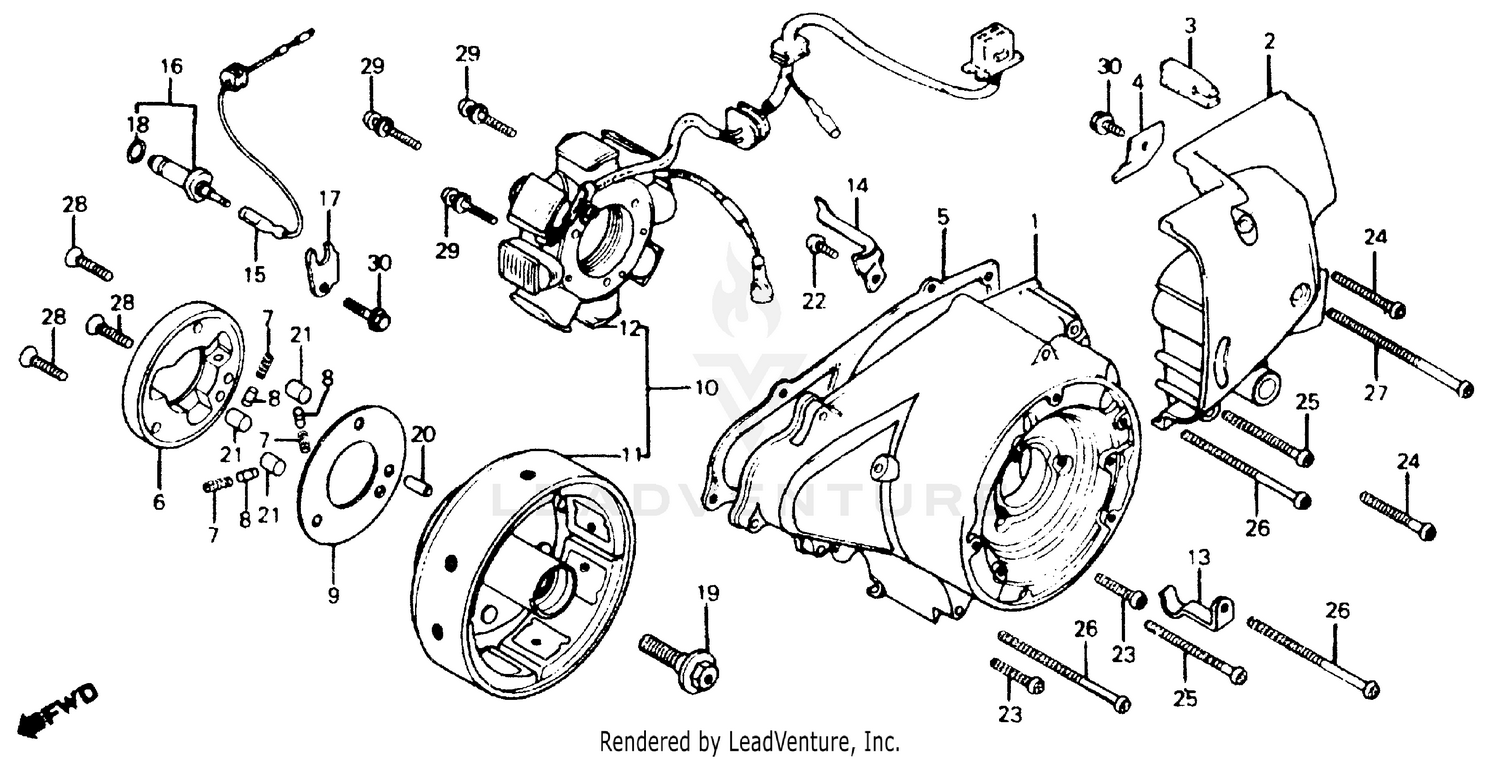

Left Crankcase Cover + Alternator Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COVER, L. CRANKCASE (NOT AVAILABLE)
11341-465-670
Superseded by 11341-402-702
|
$122.55 | ||
|
Available to order. Add to View Price |
|||
|
#1
COVER, L. CRANKCASE (NOT AVAILABLE)
11341-402-702
|
$122.55 | ||
|
Unavailable |
|||
|
#2
COVER, L. RR. CRANKCASE
11361-418-000
|
$86.81 | ||
|
Available to order. Add to View Price |
|||
|
#3
INSULATOR, L. RR. COVER (NOT AVAILABLE)
11362-464-000
|
$2.08 | ||
|
Available to order. Add to View Price |
|||
|
#4
GUIDE, DRIVE CHAIN (NOT AVAILABLE)
11365-399-000
|
$2.39 | ||
|
Available to order. Add to View Price |
|||
|
#5
GASKET, L. SIDE SPACER
11395-402-000
Superseded by 11395-402-010
|
$12.65 | ||
|
Available to order. Add to View Price |
|||
|
#5
GASKET, L. SIDE SPACER
11395-402-010
|
$12.65 | ||
|
Unavailable |
|||
|
#6
CLUTCH, STARTER (OUTER)
28120-201-040
|
$100.91 | ||
|
Available to order. Add to View Price |
|||
|
#7
SPRING, STARTER CLUTCH ROLLER
28125-253-020
|
$6.70 | ||
|
Available to order. Add to View Price |
|||
|
#8
CAP, STARTER CLUTCH ROLLER SPRING
28126-253-030
|
$5.44 | ||
|
Available to order. Add to View Price |
|||
|
#9
PLATE, STARTER CLUTCH SIDE
28128-253-030
|
$7.31 | ||
|
Available to order. Add to View Price |
|||
|
#10
ALTERNATOR ASSY. (NOT AVAILABLE)
31100-465-671
|
$337.95 | ||
|
Available to order. Add to View Price |
|||
|
#11
ROTOR (HITACHI) (NOT AVAILABLE)
31110-464-005
|
$225.44 | ||
|
Available to order. Add to View Price |
|||
|
#11
ROTOR (HITACHI) (NOT AVAILABLE)
31110-465-670
Superseded by 31110-464-005
|
$225.44 | ||
|
Unavailable |
|||
|
#12
STATOR (NOT AVAILABLE)
31120-465-671
|
$167.55 | ||
|
Available to order. Add to View Price |
|||
|
#13
CLIP, STARTER MOTOR CABLE (NOT AVAILABLE)
32911-402-000
|
$2.77 | ||
|
Available to order. Add to View Price |
|||
|
#14
CLAMP, WIRE (NOT AVAILABLE)
32912-465-670
|
$4.27 | ||
|
Available to order. Add to View Price |
|||
|
#15
SUB-WIRE, NEUTRAL SWITCH (NOT AVAILABLE)
32975-399-000
|
$7.44 | ||
|
Available to order. Add to View Price |
|||
|
#16
CONTACT ASSY., NEUTRAL SWITCH (DAIICHI) (NOT AVAILABLE)
35750-350-005
|
$5.51 | ||
|
Available to order. Add to View Price |
|||
|
#17
PLATE, NEUTRAL SWITCH SETTING
35752-KEN-620
|
$6.16 | ||
|
Available to order. Add to View Price |
|||
|
#17
PLATE, NEUTRAL SWITCH SETTING
35752-399-000
Superseded by 35752-KEN-620
|
$6.16 | ||
|
Unavailable |
|||
|
#18
O-RING (7X1.6)
37551-001-000
|
$2.92 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, ROTOR SETTING
90123-402-700
|
$14.03 | ||
|
Available to order. Add to View Price |
|||
|
#20
PIN, KNOCK (6X17.5)
90701-250-000
|
$2.97 | ||
|
Available to order. Add to View Price |
|||
|
#20
PIN, KNOCK (6X17.5) (NOT AVAILABLE)
90704-259-000
|
$2.81 | ||
|
Available to order. Add to View Price |
|||
|
#21
ROLLER (10.2X9.5)
91101-253-020
|
$4.78 | ||
|
Available to order. Add to View Price |
|||
|
#22
SCREW, PAN (5X12)
93500-05012
Superseded by 93500-05012-0A
|
$0.90 | ||
|
Available to order. Add to View Price |
|||
|
#22
SCREW, PAN (5X12)
93500-05012-0A
|
$0.90 | ||
|
Unavailable |
|||
|
#23
SCREW, PAN (6X22)
93500-06022
Superseded by 93500-06022-0A
|
$1.23 | ||
|
Available to order. Add to View Price |
|||
|
#23
SCREW, PAN (6X22)
93500-06022-0A
|
$1.23 | ||
|
Unavailable |
|||
|
#24
SCREW, PAN (6X40)
93500-06040
Superseded by 93500-06040-0A
|
$1.42 | ||
|
Available to order. Add to View Price |
|||
|
#24
SCREW, PAN (6X40)
93500-06040-0A
|
$1.42 | ||
|
Unavailable |
|||
|
#25
SCREW, PAN (6X50)
93500-06050
Superseded by 93500-06050-0A
|
$1.03 | ||
|
Available to order. Add to View Price |
|||
|
#25
SCREW, PAN (6X50)
93500-06050-0A
|
$1.03 | ||
|
Unavailable |
|||
|
#26
SCREW, PAN (6X80)
93500-06080
Superseded by 93500-06080-0A
|
$1.20 | ||
|
Available to order. Add to View Price |
|||
|
#26
SCREW, PAN (6X80)
93500-06080-0A
|
$1.20 | ||
|
Unavailable |
|||
|
#27
SCREW, PAN (6X90) (SOURCE: VINTAGE PARTS INC.)
93500-06090
|
$0.96 | ||
|
Available to order. Add to View Price |
|||
|
#28
SCREW, FLAT (6X20)
93600-06020
Superseded by 93600-06020-0A
|
$0.98 | ||
|
Available to order. Add to View Price |
|||
|
#28
SCREW, FLAT (6X20)
93600-06020-0A
|
$0.98 | ||
|
Unavailable |
|||
|
#29
SCREW-WASHER (5X28) (NOT AVAILABLE)
93892-05028-08
|
$0.59 | ||
|
Available to order. Add to View Price |
|||
|
#30
BOLT, FLANGE (6X12)
95700-06012-00
Superseded by 95701-06012-00
|
$1.64 | ||
|
Available to order. Add to View Price |
|||
|
#30
BOLT, FLANGE (6X12)
95701-06012-00
|
$1.64 | ||
|
Unavailable |
|||
