1981 Honda CM200T TWINSTAR Rear Brake Panel OEM Parts

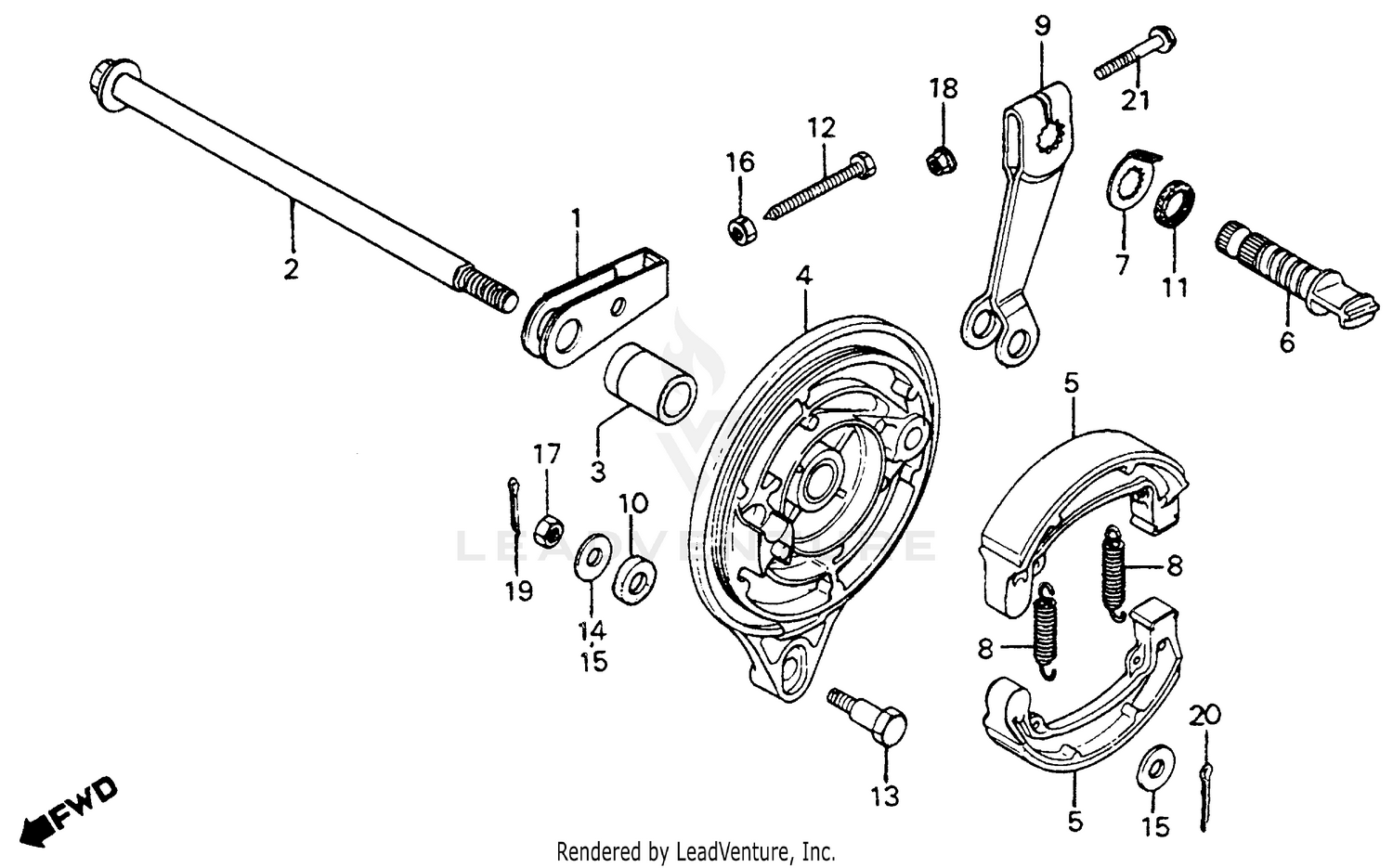

Rear Brake Panel Diagram

Item	MSRP	Qty
#NI SHOE SET, BRAKE 06430-KBG-700	$29.48
Available to order. Add to View Price
#NI SHOE SET, BRAKE 06430-KBG-701 Superseded by 06430-KBG-700	$29.48
Unavailable
#NI SHOE SET, BRAKE 06430-362-000 Superseded by 06430-KBG-700	$29.48
Unavailable
#NI SHOE SET, BRAKE 06430-362-405 Superseded by 06430-KBG-700	$29.48
Unavailable
#NI SHOE SET, BRAKE 431A2-362-000 Superseded by 06430-KBG-700	$29.48
Unavailable
#1 ADJUSTER, CHAIN 40543-399-750	$11.75
Available to order. Add to View Price
#2 AXLE, RR. WHEEL (NOT AVAILABLE) 42301-304-972	$24.61
Available to order. Add to View Price
#3 COLLAR, RR. BRAKE PANEL SIDE 42313-399-000	$21.19
Available to order. Add to View Price
#4 PANEL, RR. BRAKE 43100-399-751 Superseded by 43100-399-752	$117.17
Available to order. Add to View Price
#4 PANEL, RR. BRAKE 43100-399-752	$117.17
Unavailable
#5 SHOE SET, BRAKE 43120-362-000 Superseded by 06430-KBG-700	$29.48
Unavailable
#6 CAM, RR. BRAKE 43141-ME4-000	$29.53
Unavailable
#6 CAM, RR. BRAKE 43141-399-010 Superseded by 43141-ME4-000	$29.53
Unavailable
#7 INDICATOR, RR. BRAKE 43145-399-000	$5.35
Available to order. Add to View Price
#8 SPRING, RR. BRAKE SHOE 43151-329-000	$3.14
Available to order. Add to View Price
#9 ARM, RR. BRAKE 43410-KR3-000	$23.75
Available to order. Add to View Price
#9 ARM, RR. BRAKE 43410-419-000 Superseded by 43410-KR3-000	$23.75
Unavailable
#10 RUBBER, STOPPER ARM CUSHION 43434-286-000	$3.28
Available to order. Add to View Price
#11 DUST SEAL, BRAKE CAM 45134-250-000	$3.09
Available to order. Add to View Price
#12 BOLT, CHAIN ADJUSTING 90119-258-000	$7.20
Available to order. Add to View Price
#13 BOLT, RR. BRAKE STOPPER 90127-400-000	$10.32
Available to order. Add to View Price
#14 WASHER A, HANDLE HOLDER SETTING 90505-425-000 Superseded by 90524-030-000	$1.51
Available to order. Add to View Price
#14 WASHER A, HANDLE HOLDER SETTING 90524-030-000	$1.51
Unavailable
#15 WASHER A, HANDLE HOLDER SETTING 90524-030-000	$1.51
Unavailable
#16 NUT, HEX. (6MM) 90310-KA3-711 Superseded by 94001-06200-0S	$1.32
Available to order. Add to View Price
#16 NUT, HEX. (6MM) 94000-06000-0S Superseded by 94001-06200-0S	$1.32
Unavailable
#16 NUT, HEX. (6MM) 94001-06000 Superseded by 94001-06200-0S	$1.32
Unavailable
#16 NUT, HEX. (6MM) 94001-06000-0S Superseded by 94001-06200-0S	$1.32
Unavailable
#16 NUT, HEX. (6MM) 94001-06008-0S Superseded by 94001-06200-0S	$1.32
Unavailable
#16 NUT, HEX. (6MM) 94001-06200-0S	$1.32
Unavailable
#16 NUT, HEX. (6MM) 94030-06000 Superseded by 94001-06200-0S	$1.32
Unavailable
#17 NUT, HEX. (8MM) 94001-08000-0S	$1.32
Available to order. Add to View Price
#18 NUT, FLANGE (6MM) 94050-06000	$0.60
Available to order. Add to View Price
#19 PIN, COTTER (2.0X22) 94201-20180 Superseded by 94201-29220	$1.03
Unavailable
#19 PIN, COTTER (2.0X22) 94201-20200 Superseded by 94201-29220	$1.03
Unavailable
#19 PIN, COTTER (2.0X22) 94201-20220	$1.03
Unavailable
#19 PIN, COTTER (2.0X35) 94201-20250 Superseded by 94201-20350	$1.03
Available to order. Add to View Price
#19 PIN, COTTER (2.0X35) 94201-20280 Superseded by 94201-20350	$1.03
Unavailable
#19 PIN, COTTER (2.0X35) 94201-20320 Superseded by 94201-20350	$1.03
Unavailable
#19 PIN, COTTER (2.0X35) 94201-20350	$1.03
Unavailable
#19 PIN, COTTER (2.0X22) 94201-29220	$1.03
Unavailable
#20 PIN, COTTER (2.0X22) 94201-20200 Superseded by 94201-29220	$1.03
Unavailable
#20 PIN, COTTER (2.0X22) 94201-20220	$1.03
Unavailable
#20 PIN, COTTER (2.0X35) 94201-20250 Superseded by 94201-20350	$1.03
Unavailable
#20 PIN, COTTER (2.0X35) 94201-20280 Superseded by 94201-20350	$1.03
Unavailable
#20 PIN, COTTER (2.0X35) 94201-20320 Superseded by 94201-20350	$1.03
Unavailable
#20 PIN, COTTER (2.0X35) 94201-20350	$1.03
Unavailable
#20 PIN, COTTER (2.0X22) 94201-29220	$1.03
Unavailable
#21 BOLT, FLANGE (6X35) 95700-06035-00 Superseded by 95701-06035-00	$1.88
Available to order. Add to View Price
#21 BOLT, FLANGE (6X35) 95701-06035-00	$1.88
Unavailable
