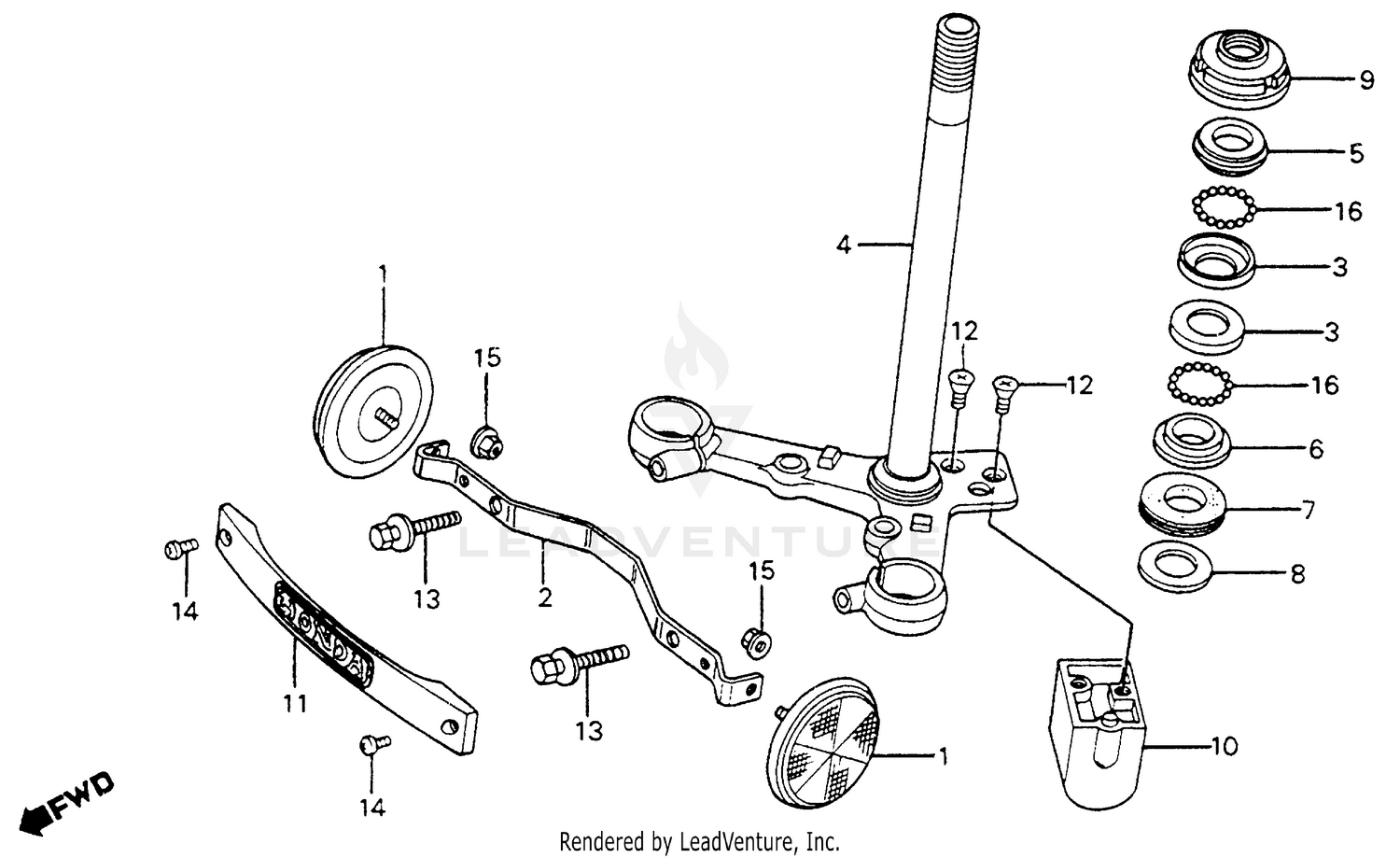

Steering Stem Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
REFLECTOR, FR. REFLEX
33741-413-003
Superseded by 33742-HB9-641
|
$15.24 | ||
|
Available to order. Add to View Price |
|||
|
#1
REFLECTOR, FR. REFLEX
33741-413-013
Superseded by 33742-HB9-641
|
$15.24 | ||
|
Unavailable |
|||
|
#1
REFLECTOR, FR. REFLEX
33742-HB9-641
|
$15.24 | ||
|
Unavailable |
|||
|
#2
STAY, REFLECTOR (NOT AVAILABLE)
33751-419-000
|
$12.85 | ||
|
Available to order. Add to View Price |
|||
|
#3
RACE, STEERING BALL
50301-041-000
Superseded by 50301-041-010
|
$14.36 | ||
|
Available to order. Add to View Price |
|||
|
#3
RACE, STEERING TOP BALL
50301-041-010
|
$14.36 | ||
|
Unavailable |
|||
|
#4
STEM, STEERING *NH1* (BLACK)
53200-402-000ZA
|
$215.08 | ||
|
Available to order. Add to View Price |
|||
|
#5
RACE, STEERING TOP CONE
53211-028-000
Superseded by 53211-028-010
|
$12.86 | ||
|
Available to order. Add to View Price |
|||
|
#5
RACE, STEERING CONE (UPPER)
53211-028-010
|
$12.86 | ||
|
Unavailable |
|||
|
#6
RACE, STEERING CONE (LOWER)
53212-030-000
Superseded by 53212-030-010
|
$12.44 | ||
|
Available to order. Add to View Price |
|||
|
#6
RACE, STEERING CONE (LOWER)
53212-030-010
|
$12.44 | ||
|
Unavailable |
|||
|
#7
DUST SEAL, STEERING HEAD
53214-001-010
Superseded by 53214-GJG-C20
|
$2.84 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER, STEERING HEAD DUST SEAL
53215-001-000
|
$3.69 | ||
|
Available to order. Add to View Price |
|||
|
#9
THREAD, STEERING HEAD TOP
53220-074-000
|
$18.36 | ||
|
Available to order. Add to View Price |
|||
|
#10
LOCK, HANDLEBAR (HONDALOCK)
53600-086-007
|
$52.32 | ||
|
Available to order. Add to View Price |
|||
|
#11
EMBLEM, FR. (NOT AVAILABLE)
87127-419-000
|
$18.31 | ||
|
Available to order. Add to View Price |
|||
|
#12
SCREW, U-LOCK FLAT (6X12)
90164-028-000
|
$1.96 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT-WASHER (8X40)
93481-08040-00
|
$1.08 | ||
|
Available to order. Add to View Price |
|||
|
#14
SCREW, PAN (4X8)
93500-04008-0G
|
$0.90 | ||
|
Available to order. Add to View Price |
|||
|
#15
NUT, FLANGE (6MM)
94050-06000
|
$0.60 | ||
|
Available to order. Add to View Price |
|||
|
#16
BALL, STEEL (#6) (3/16)
96211-06000
|
$0.47 | ||
|
Available to order. Add to View Price |
|||
