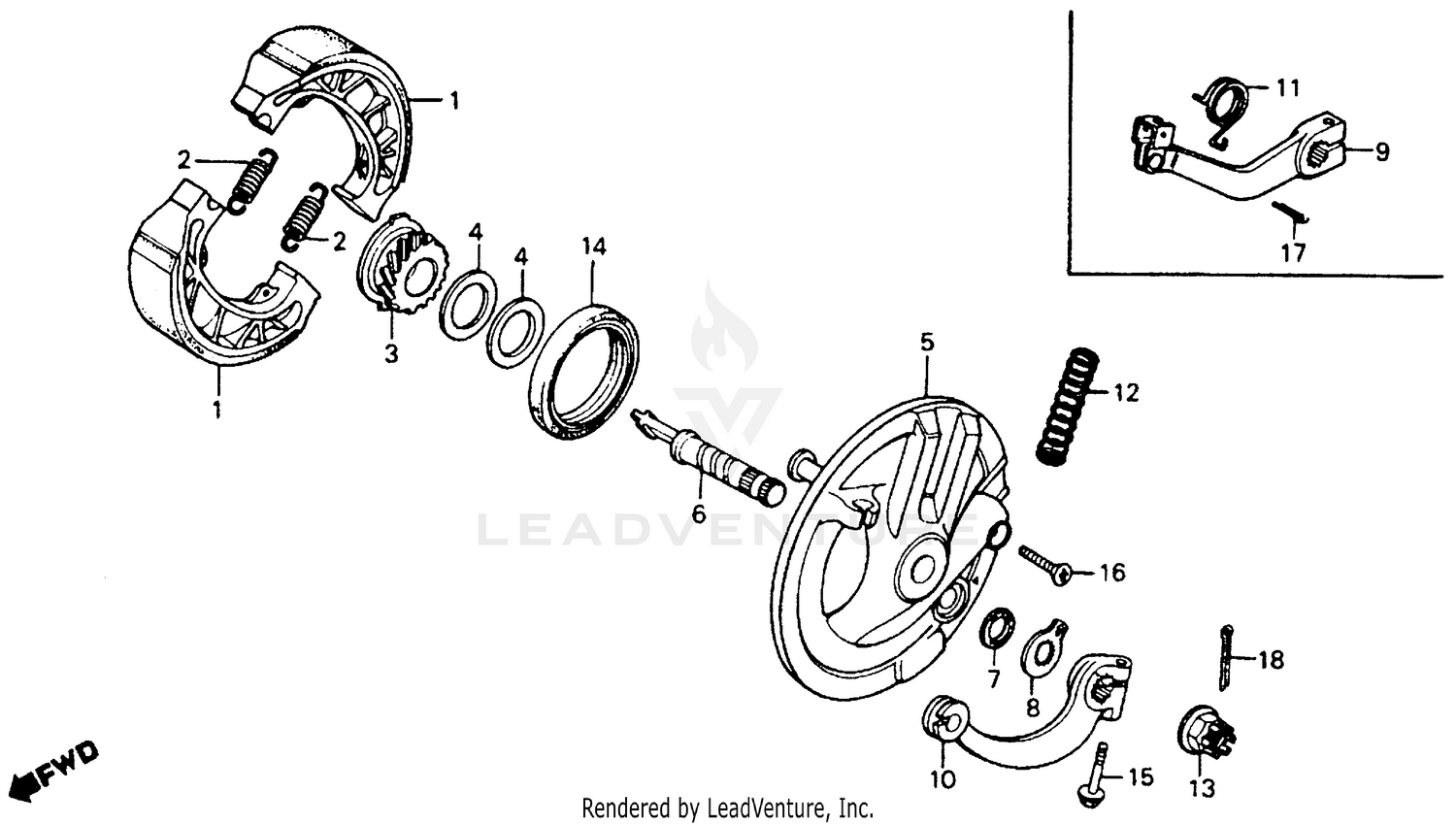

Front Brake Panel Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#NI
SHOE SET, BRAKE (JB)
06450-GAG-003
Superseded by 06450-178-932
|
$28.85 | ||
|
Available to order. Add to View Price |
|||
|
#NI
SHOE SET, BRAKE (JB)
06450-096-405
Superseded by 06450-178-932
|
$28.85 | ||
|
Unavailable |
|||
|
#NI
SHOE SET, BRAKE (JB)
06450-178-932
|
$28.85 | ||
|
Unavailable |
|||
|
#NI
SHOE SET, BRAKE (JB)
451A2-096-305
Superseded by 06450-178-932
|
$28.85 | ||
|
Unavailable |
|||
|
#1
SHOE SET, BRAKE (JB)
06450-178-932
|
$28.85 | ||
|
Unavailable |
|||
|
#1
SHOE SET, BRAKE (JB)
45120-GAG-003
Superseded by 06450-178-932
|
$28.85 | ||
|
Unavailable |
|||
|
#1
SHOE SET, BRAKE (JB)
45120-096-651
Superseded by 06450-178-932
|
$28.85 | ||
|
Unavailable |
|||
|
#1
SHOE, BRAKE (ASK) (SEE KIT P/N--END OF BLOCK) (NA USE ALT:451A2-096-305)
45120-096-652
|
$6.51 | ||
|
Unavailable |
|||
|
#2
SPRING, BRAKE SHOE
45133-028-000
|
$2.21 | ||
|
Available to order. Add to View Price |
|||
|
#3
GEAR, SPEEDOMETER
44804-102-780
|
$25.31 | ||
|
Available to order. Add to View Price |
|||
|
#4
WASHER, SPEEDOMETER GEAR
44808-107-720
|
$2.57 | ||
|
Available to order. Add to View Price |
|||
|
#5
SUB-PANEL, FR. BRAKE *NH105* (MAT BLACK)
45010-102-790ZA
Superseded by 45010-102-791ZA
|
$99.94 | ||
|
Available to order. Add to View Price |
|||
|
#5
SUB-PANEL, FR. BRAKE *NH105* (MAT BLACK)
45010-102-791ZA
|
$99.94 | ||
|
Unavailable |
|||
|
#6
CAM, FR. BRAKE
45131-400-000
Superseded by 45131-400-020
|
$20.62 | ||
|
Unavailable |
|||
|
#6
CAM, FR. BRAKE
45131-400-010
Superseded by 45131-400-020
|
$20.62 | ||
|
Unavailable |
|||
|
#6
CAM, FR. BRAKE
45131-400-010
Superseded by 45131-400-020
|
$20.62 | ||
|
Unavailable |
|||
|
#6
CAM, FR. BRAKE
45131-400-020
|
$20.62 | ||
|
Unavailable |
|||
|
#6
CAM, FR. BRAKE
45131-400-020
|
$20.62 | ||
|
Unavailable |
|||
|
#7
DUST SEAL, BRAKE CAM
45134-250-000
|
$3.09 | ||
|
Available to order. Add to View Price |
|||
|
#8
INDICATOR, FR. BRAKE (NOT AVAILABLE)
45145-102-780
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#10
ARM, FR. BRAKE
45410-400-000
|
$40.91 | ||
|
Available to order. Add to View Price |
|||
|
#12
SPRING, FR. BRAKE CABLE
45454-360-010
|
$5.60 | ||
|
Available to order. Add to View Price |
|||
|
#13
NUT, AXLE (12MM)
90305-051-000
Superseded by 90305-169-000
|
$7.55 | ||
|
Available to order. Add to View Price |
|||
|
#13
NUT, AXLE (12MM)
90305-169-000
|
$7.55 | ||
|
Unavailable |
|||
|
#14
OIL SEAL (47X60X7)
91251-GK4-003
|
$10.65 | ||
|
Available to order. Add to View Price |
|||
|
#14
OIL SEAL (47X60X7) (ARAI)
91251-121-000
Superseded by 91251-GK4-003
|
$10.65 | ||
|
Unavailable |
|||
|
#15
BOLT, HEX. (6X25)
92000-06025
Superseded by 92101-06025-0A
|
$1.64 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, HEX. (6X25)
92101-06025-0A
|
$1.64 | ||
|
Unavailable |
|||
|
#16
SCREW, OVAL (5X18)
93700-05018-0A
|
$0.47 | ||
|
Available to order. Add to View Price |
|||
|
#18
PIN, COTTER (3.0X45)
94201-30250
Superseded by 94201-30450
|
$1.03 | ||
|
Available to order. Add to View Price |
|||
|
#18
PIN, COTTER (3.0X45)
94201-30300
Superseded by 94201-30450
|
$1.03 | ||
|
Unavailable |
|||
|
#18
PIN, COTTER (3.0X45)
94201-30400
Superseded by 94201-30450
|
$1.03 | ||
|
Unavailable |
|||
|
#18
PIN, COTTER (3.0X45)
94201-30450
|
$1.03 | ||
|
Unavailable |
|||
