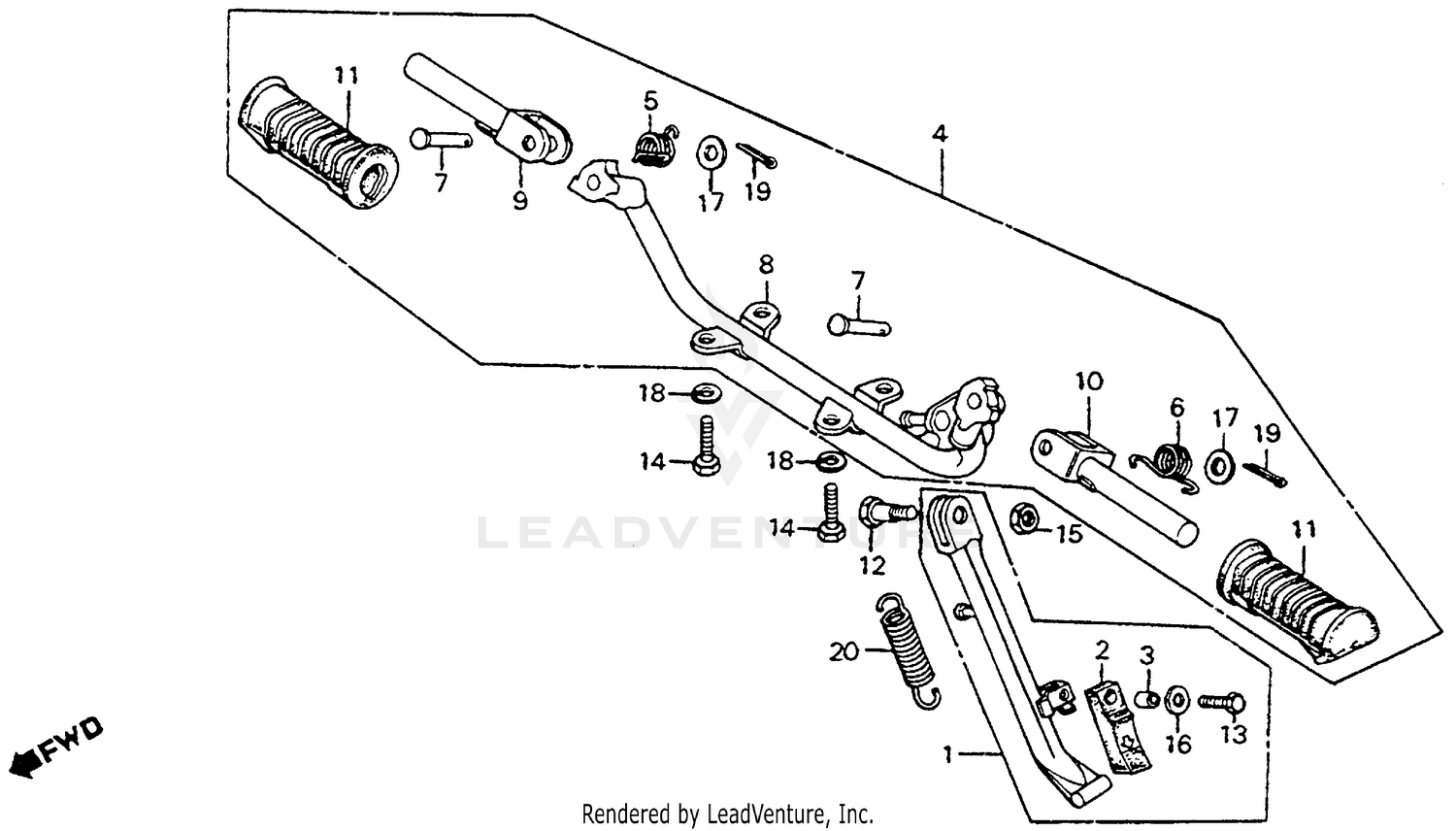

Step Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BAR ASSY., SIDE STAND (NOT AVAILABLE)
50540-102-730
|
$33.01 | ||
|
Available to order. Add to View Price |
|||
|
#2
RUBBER, STAND
50548-324-760
|
$14.45 | ||
|
Available to order. Add to View Price |
|||
|
#3
COLLAR, STAND RUBBER SETTING
50549-356-700
|
$2.97 | ||
|
Available to order. Add to View Price |
|||
|
#4
BAR ASSY., STEP *NH1* (BLACK)
50600-102-000B
|
$152.29 | ||
|
Available to order. Add to View Price |
|||
|
#5
SPRING, R. STEP RETURN (NOT AVAILABLE)
50601-053-000
|
$2.08 | ||
|
Available to order. Add to View Price |
|||
|
#6
SPRING, L. STEP RETURN (NOT AVAILABLE)
50602-053-000
|
$4.87 | ||
|
Available to order. Add to View Price |
|||
|
#7
PIN, STEP BAR JOINT
50603-033-000
Superseded by 50603-033-010
|
$3.58 | ||
|
Available to order. Add to View Price |
|||
|
#7
PIN, STEP BAR JOINT
50603-033-010
|
$3.58 | ||
|
Unavailable |
|||
|
#8
BAR, STEP *NH1* (BLACK) (NOT AVAILABLE)
50610-102-790ZA
|
$95.17 | ||
|
Available to order. Add to View Price |
|||
|
#9
ARM, R. STEP *NH1* (BLACK) (NOT AVAILABLE)
50630-102-000B
|
$22.87 | ||
|
Available to order. Add to View Price |
|||
|
#10
ARM, L. STEP *NH1* (BLACK) (NOT AVAILABLE)
50640-102-000B
|
$23.79 | ||
|
Available to order. Add to View Price |
|||
|
#11
RUBBER, STEP
50661-110-000
|
$12.48 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, SIDE STAND PIVOT
90108-223-000
|
$6.16 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, HEX. (6X28)
92000-06028
Superseded by 92101-06028-0A
|
$1.27 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, HEX. (6X28)
92101-06028-0A
|
$1.27 | ||
|
Unavailable |
|||
|
#14
BOLT, HEX. (8X20)
92000-08020-0A
Superseded by 92101-08020-0A
|
$1.64 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, HEX. (8X20)
92101-08020-0A
|
$1.64 | ||
|
Unavailable |
|||
|
#15
NUT, HEX. (10MM)
94002-10000-0S
|
$4.95 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER, PLAIN (6MM)
94101-06000
Superseded by 94101-06800
|
$0.64 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER, PLAIN (6MM)
94101-06080
Superseded by 94101-06800
|
$0.64 | ||
|
Unavailable |
|||
|
#16
WASHER, PLAIN (6MM)
94101-06800
|
$0.64 | ||
|
Unavailable |
|||
|
#17
WASHER, PLAIN (8MM)
94101-08000
|
$0.81 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER, SPRING (8MM)
94111-08000
|
$0.98 | ||
|
Available to order. Add to View Price |
|||
|
#19
PIN, COTTER (1.6X25)
94201-16150
Superseded by 94201-16250
|
$1.03 | ||
|
Available to order. Add to View Price |
|||
|
#19
PIN, COTTER (1.6X25)
94201-16250
|
$1.03 | ||
|
Unavailable |
|||
|
#20
SPRING, SIDE STAND
95014-72203
Superseded by 95014-72204
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#20
SPRING, SIDE STAND
95014-72204
|
$3.62 | ||
|
Unavailable |
|||
