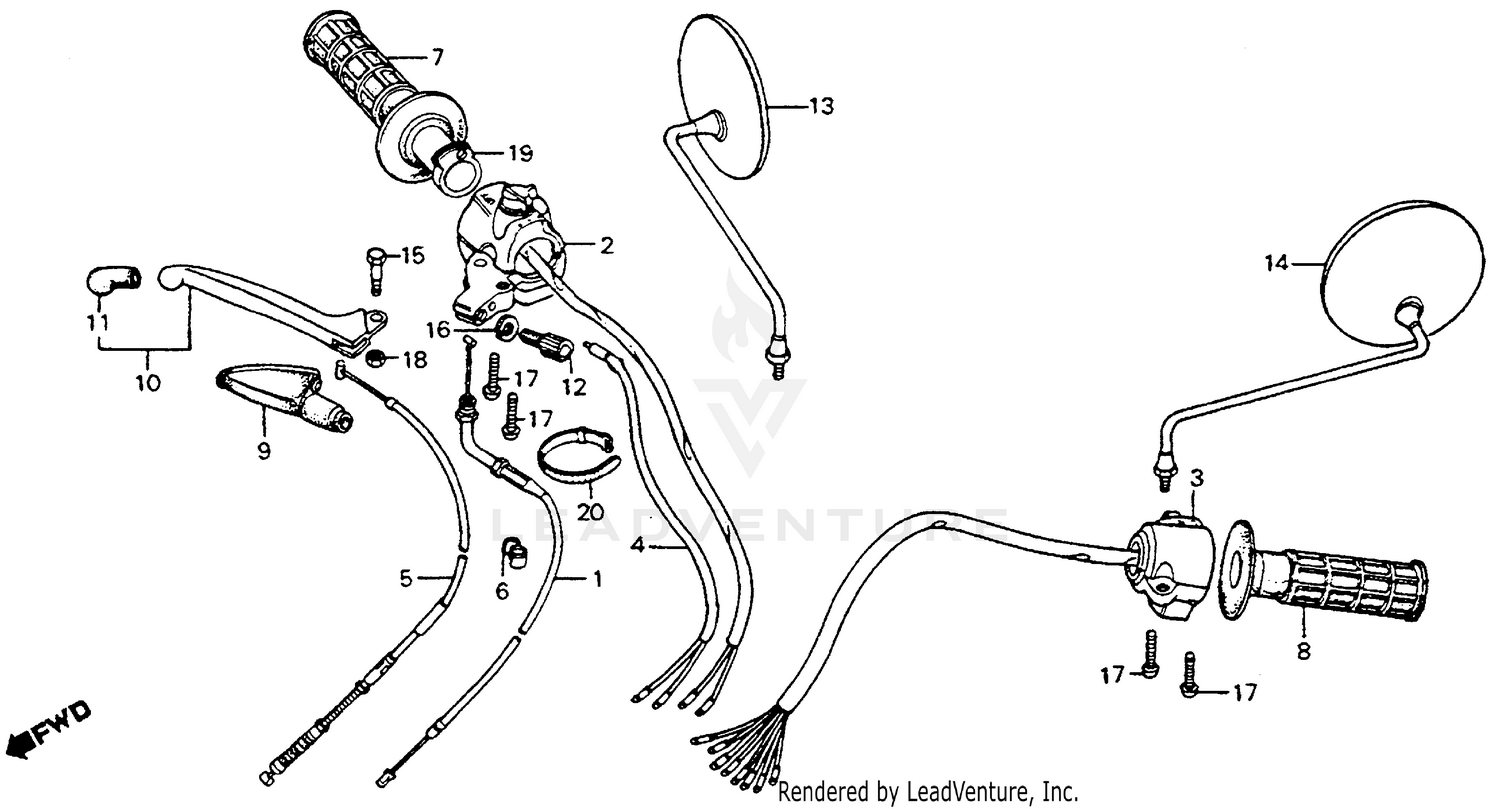

Handle Lever + Switch + Cable Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CABLE, THROTTLE (NOT AVAILABLE)
17910-102-790
|
$16.91 | ||
|
Available to order. Add to View Price |
|||
|
#2
SWITCH ASSY., STOP (NOT AVAILABLE)
35130-102-790
|
$69.73 | ||
|
Unavailable |
|||
|
#3
SWITCH ASSY., TURN SIGNAL (NOT AVAILABLE)
35200-126-721
|
$107.06 | ||
|
Available to order. Add to View Price |
|||
|
#4
SWITCH ASSY., FR. STOP
35330-391-690
Superseded by 35340-329-003
|
$20.24 | ||
|
Available to order. Add to View Price |
|||
|
#4
SWITCH ASSY., FR. STOP
35340-147-000
Superseded by 35340-329-003
|
$20.24 | ||
|
Unavailable |
|||
|
#4
SWITCH ASSY., FR. STOP
35340-329-000
Superseded by 35340-329-003
|
$20.24 | ||
|
Unavailable |
|||
|
#4
SWITCH ASSY., FR. STOP
35340-329-003
|
$20.24 | ||
|
Unavailable |
|||
|
#4
SWITCH ASSY., FR. STOP
35340-329-010
Superseded by 35340-329-003
|
$20.24 | ||
|
Unavailable |
|||
|
#5
CABLE, FR. BRAKE
45450-102-870
Superseded by 45450-459-710
|
$22.45 | ||
|
Available to order. Add to View Price |
|||
|
#5
CABLE, FR. BRAKE
45450-459-710
|
$22.45 | ||
|
Unavailable |
|||
|
#7
GRIP, R. HANDLE
53165-430-000
Superseded by 53165-GFW-305
|
$14.63 | ||
|
Available to order. Add to View Price |
|||
|
#8
GRIP, L. HANDLEBAR
53166-430-000
Superseded by 53166-459-910
|
$10.94 | ||
|
Available to order. Add to View Price |
|||
|
#9
COVER, R. HANDLEBAR LEVER (NOT AVAILABLE)
53171-351-000
|
$8.70 | ||
|
Available to order. Add to View Price |
|||
|
#10
LEVER, R. HANDLEBAR
53170-329-000
Superseded by 53175-KY0-980
|
$35.97 | ||
|
Available to order. Add to View Price |
|||
|
#10
LEVER, R. HANDLEBAR
53170-329-010
Superseded by 53175-KY0-980
|
$35.97 | ||
|
Unavailable |
|||
|
#10
LEVER, R. HANDLEBAR
53170-369-700
Superseded by 53175-KY0-980
|
$35.97 | ||
|
Unavailable |
|||
|
#10
LEVER, R. HANDLEBAR
53175-329-000
Superseded by 53175-KY0-980
|
$35.97 | ||
|
Unavailable |
|||
|
#10
LEVER, R. HANDLEBAR
53175-369-700
Superseded by 53175-KY0-980
|
$35.97 | ||
|
Unavailable |
|||
|
#10
LEVER, R. HANDLEBAR
53175-402-700
Superseded by 53175-KY0-980
|
$35.97 | ||
|
Unavailable |
|||
|
#12
BOLT, CABLE ADJUSTING
53192-268-000
|
$8.00 | ||
|
Available to order. Add to View Price |
|||
|
#13
MIRROR, R.
88110-329-730
|
$23.80 | ||
|
Unavailable |
|||
|
#14
MIRROR, L. (DOES NOT INCLUDE LOCK NUT)
88120-329-730
Superseded by 88220-329-730
|
$37.91 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, HANDLEBAR LEVER PIVOT
90114-329-000
|
$9.30 | ||
|
Available to order. Add to View Price |
|||
|
#16
NUT, FIXING
90321-315-670
|
$8.78 | ||
|
Available to order. Add to View Price |
|||
|
#16
NUT, FIXING
90321-968-000
Superseded by 90321-315-670
|
$8.78 | ||
|
Unavailable |
|||
|
#17
SCREW, PAN (5X25)
93500-05025-0A
|
$0.93 | ||
|
Available to order. Add to View Price |
|||
|
#17
SCREW, PAN (5X25)
93500-05025-1A
Superseded by 93500-05025-0A
|
$0.93 | ||
|
Unavailable |
|||
|
#18
NUT, HEX. (6MM)
90310-KA3-711
Superseded by 94001-06200-0S
|
$1.32 | ||
|
Available to order. Add to View Price |
|||
|
#18
NUT, HEX. (6MM)
94000-06000-0S
Superseded by 94001-06200-0S
|
$1.32 | ||
|
Unavailable |
|||
|
#18
NUT, HEX. (6MM)
94001-06000
Superseded by 94001-06200-0S
|
$1.32 | ||
|
Unavailable |
|||
|
#18
NUT, HEX. (6MM)
94001-06000-0S
Superseded by 94001-06200-0S
|
$1.32 | ||
|
Unavailable |
|||
|
#18
NUT, HEX. (6MM)
94001-06008-0S
Superseded by 94001-06200-0S
|
$1.32 | ||
|
Unavailable |
|||
|
#18
NUT, HEX. (6MM)
94001-06200-0S
|
$1.32 | ||
|
Unavailable |
|||
|
#18
NUT, HEX. (6MM)
94030-06000
Superseded by 94001-06200-0S
|
$1.32 | ||
|
Unavailable |
|||
|
#19
PIPE, THROTTLE GRIP
53141-116-670
Superseded by 53141-116-671
|
$14.73 | ||
|
Unavailable |
|||
|
#20
BAND B1, CABLE
32161-404-000
|
$2.57 | ||
|
Available to order. Add to View Price |
|||
