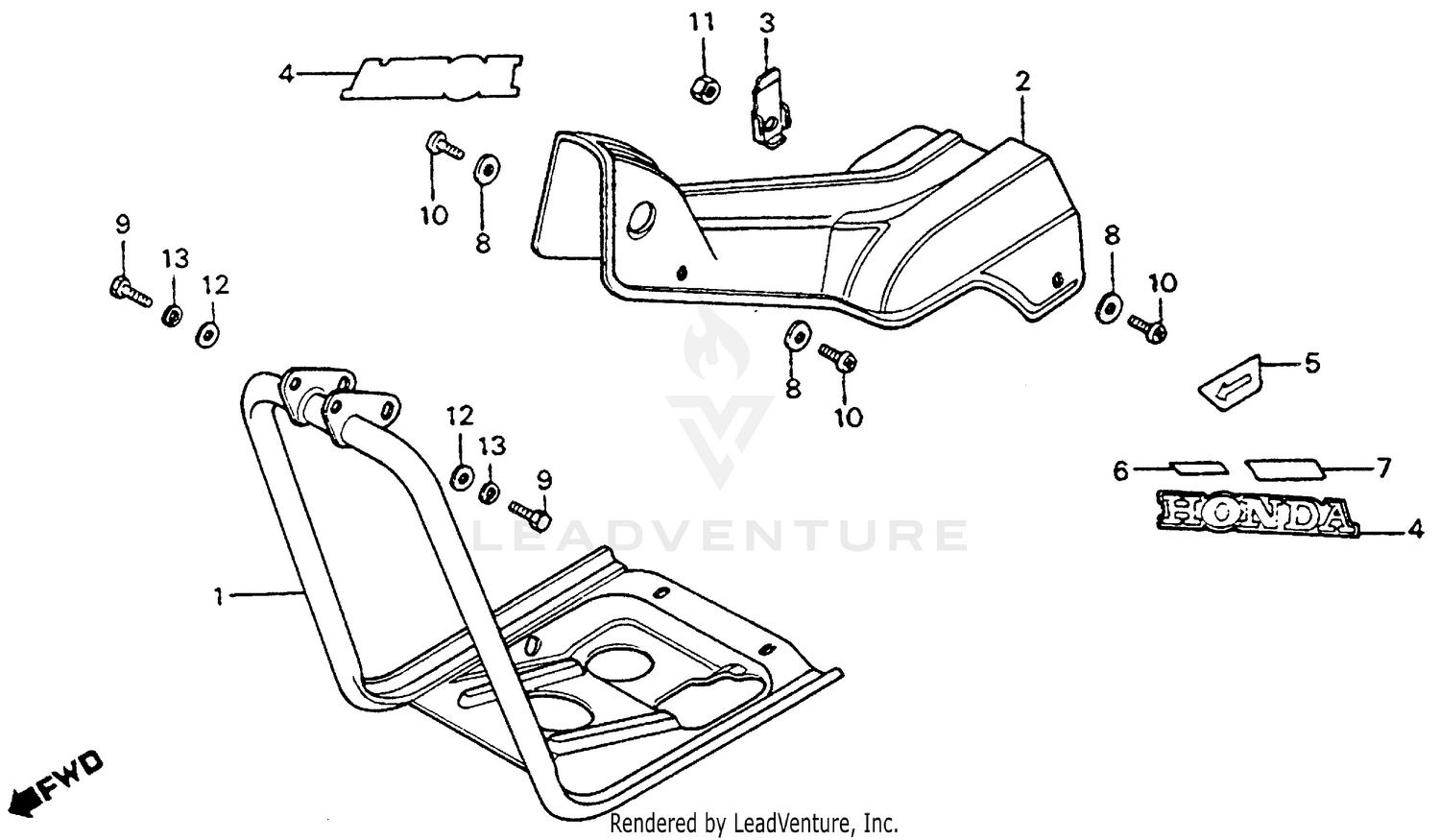

Main Pipe Cover + Crankcaseprotector Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PROTECTOR, CRANKCASE (NOT AVAILABLE)
11911-102-790
|
$269.28 | ||
|
Available to order. Add to View Price |
|||
|
#2
COVER, MAIN PIPE *R23* (TAHITIAN RED) (NOT AVAILABLE)
64301-102-670EC
|
$45.09 | ||
|
Unavailable |
|||
|
#3
PLATE, R. MAIN PIPE COVER MOUNT (NOT AVAILABLE)
64348-077-000
|
$4.27 | ||
|
Available to order. Add to View Price |
|||
|
#4
EMBLEM, MAIN PIPE COVER (NOT AVAILABLE)
87120-102-870
|
$18.97 | ||
|
Unavailable |
|||
|
#6
LABEL, OPERATOR WARNING *NH1* (BLACK)
87510-147-670ZA
|
$3.19 | ||
|
Available to order. Add to View Price |
|||
|
#7
LABEL, DRIVE CAUTION *NH1* (BLACK)
87560-323-670B
Superseded by 87560-323-670ZA
|
$3.08 | ||
|
Available to order. Add to View Price |
|||
|
#7
LABEL, DRIVE CAUTION *NH1* (BLACK)
87560-323-670ZA
|
$3.08 | ||
|
Unavailable |
|||
|
#8
WASHER (18MM)
90581-701-000
Superseded by 90581-831-650
|
$2.23 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER (18MM)
90581-831-650
|
$2.23 | ||
|
Unavailable |
|||
|
#9
BOLT, HEX. (6X12)
92000-06012
Superseded by 92101-06012-0A
|
$1.42 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT, HEX. (6X12)
92101-06012
Superseded by 92101-06012-0A
|
$1.42 | ||
|
Unavailable |
|||
|
#9
BOLT, HEX. (6X12)
92101-06012-0A
|
$1.42 | ||
|
Unavailable |
|||
|
#10
SCREW, PAN (6X12)
93500-06012
Superseded by 93500-06012-0A
|
$0.98 | ||
|
Available to order. Add to View Price |
|||
|
#10
SCREW, PAN (6X12)
93500-06012-0A
|
$0.98 | ||
|
Unavailable |
|||
|
#10
SCREW, PAN (6X12)
93500-06012-00
Superseded by 93500-06012-0A
|
$0.98 | ||
|
Unavailable |
|||
|
#11
NUT, HEX. (10MM)
94002-10000-0S
|
$4.95 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER, PLAIN (6MM)
94101-06000
Superseded by 94101-06800
|
$0.64 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER, PLAIN (6MM)
94101-06080
Superseded by 94101-06800
|
$0.64 | ||
|
Unavailable |
|||
|
#12
WASHER, PLAIN (6MM)
94101-06800
|
$0.64 | ||
|
Unavailable |
|||
|
#13
WASHER, SPRING (6MM)
94111-06000
|
$0.93 | ||
|
Available to order. Add to View Price |
|||
