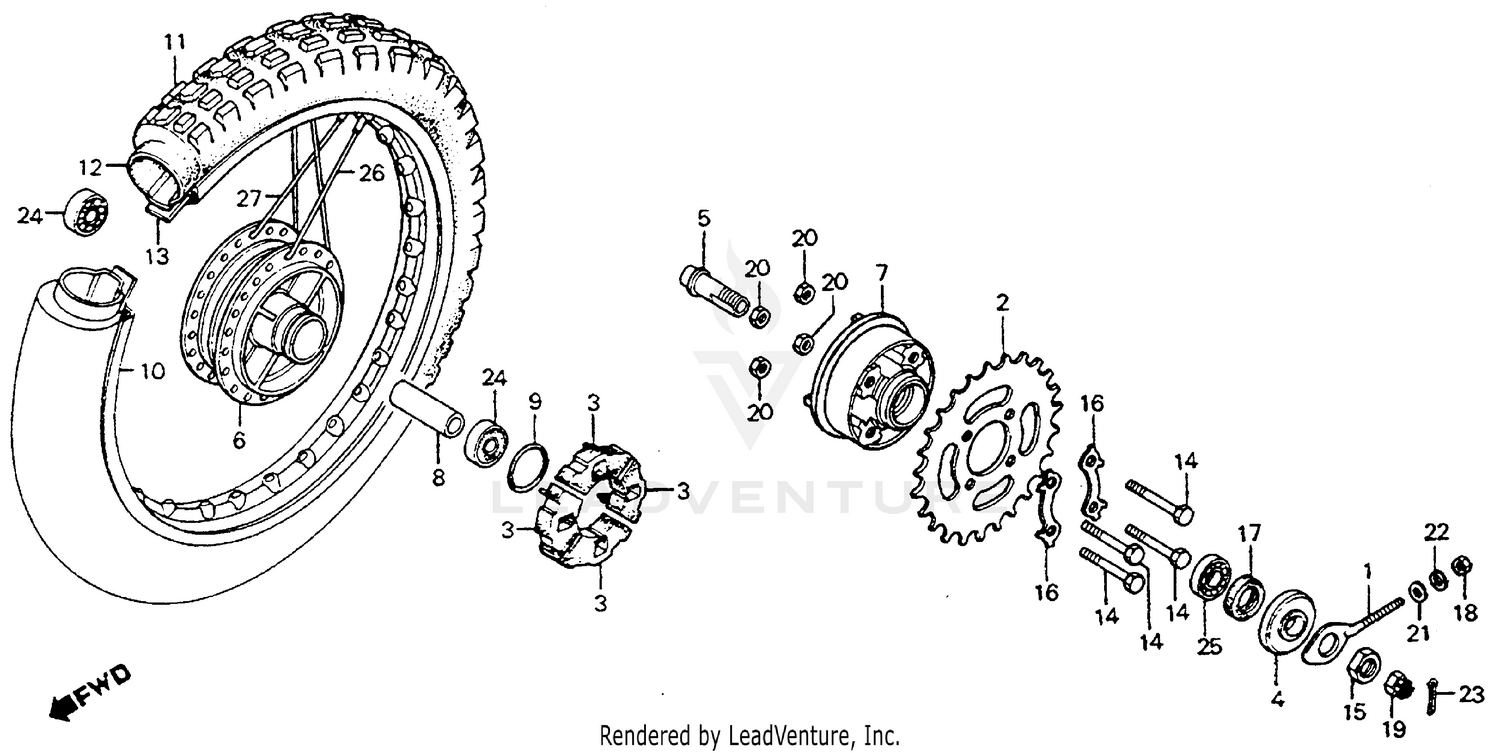

Rear Wheel Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
ADJUSTER, L. CHAIN
40544-001-000
Superseded by 95014-10020
|
$6.66 | ||
|
Available to order. Add to View Price |
|||
|
#1
ADJUSTER, L. CHAIN
95014-10020
|
$6.66 | ||
|
Unavailable |
|||
|
#2
SPROCKET A (45T)
41201-053-020
Superseded by 41201-053-505
|
$34.18 | ||
|
Unavailable |
|||
|
#3
DAMPER, RR. WHEEL
41241-033-010
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
SLEEVE, RR. WHEEL AXLE
42303-033-000
|
$22.66 | ||
|
Available to order. Add to View Price |
|||
|
#5
COLLAR, RR. WHEEL AXLE SLEEVE (NOT AVAILABLE)
42304-033-000
|
$3.60 | ||
|
Available to order. Add to View Price |
|||
|
#6
HUB, RR. WHEEL *A01* (MAT BLACK) (NOT AVAILABLE)
42601-102-790ZA
|
$216.04 | ||
|
Available to order. Add to View Price |
|||
|
#7
FLANGE, FINAL DRIVEN (NOT AVAILABLE)
42610-053-010
|
$34.03 | ||
|
Available to order. Add to View Price |
|||
|
#8
COLLAR, RR. AXLE DISTANCE
42620-121-000
|
$9.91 | ||
|
Available to order. Add to View Price |
|||
|
#9
O-RING (40.5X3) (NIPPON DUST KEEPER)
42653-001-000
Superseded by 42653-001-004
|
$2.62 | ||
|
Available to order. Add to View Price |
|||
|
#9
O-RING (40.5X3) (NIPPON DUST KEEPER)
42653-001-004
|
$2.62 | ||
|
Unavailable |
|||
|
#10
RIM, RR. WHEEL
42701-102-791
Superseded by 42701-102-794
|
$84.34 | ||
|
Available to order. Add to View Price |
|||
|
#11
TIRE, RR. (2.75-17)
42711-102-019
Superseded by 42711-102-764
|
$47.17 | ||
|
Available to order. Add to View Price |
|||
|
#11
TIRE, RR. (2.75-17)
42711-102-762
Superseded by 42711-102-764
|
$47.17 | ||
|
Unavailable |
|||
|
#11
TIRE, RR. (2.75-17)
42711-102-763
Superseded by 42711-102-764
|
$47.17 | ||
|
Unavailable |
|||
|
#12
TUBE, TIRE (2.75-17) (INOUE)
0Y400-03310
Superseded by 42712-102-761
|
$11.82 | ||
|
Available to order. Add to View Price |
|||
|
#12
TUBE, TIRE (2.75-17) (INOUE)
08400-03310
Superseded by 42712-102-761
|
$11.82 | ||
|
Unavailable |
|||
|
#12
TUBE, TIRE (2.75-17) (INOUE)
42712-102-761
|
$11.82 | ||
|
Unavailable |
|||
|
#12
TUBE, TIRE (2.75-17) (INOUE)
42712-303-003
Superseded by 42712-102-761
|
$11.82 | ||
|
Unavailable |
|||
|
#12
TUBE, TIRE (2.75-17) (INOUE)
44712-303-003
Superseded by 42712-102-761
|
$11.82 | ||
|
Unavailable |
|||
|
#12
TUBE, TIRE (2.75-17) (INOUE)
42712-102-009
Superseded by 42712-102-761
|
$11.82 | ||
|
Unavailable |
|||
|
#12
TUBE, TIRE (2.75-17) (INOUE)
44712-GC4-671
Superseded by 42712-102-761
|
$11.82 | ||
|
Unavailable |
|||
|
#12
TUBE, TIRE (2.75-17) (INOUE)
44712-169-701
Superseded by 42712-102-761
|
$11.82 | ||
|
Unavailable |
|||
|
#13
FLAP, TIRE (17) (INOUE)
42713-102-005
|
$7.86 | ||
|
Available to order. Add to View Price |
|||
|
#13
FLAP, TIRE (17) (INOUE)
42713-102-009
Superseded by 42713-102-005
|
$7.86 | ||
|
Unavailable |
|||
|
#14
BOLT, SPROCKET
90128-001-030
|
$2.94 | ||
|
Available to order. Add to View Price |
|||
|
#15
NUT, RR. AXLE SLEEVE
90307-001-000
|
$5.00 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER, TONGUED (8MM) (NOT AVAILABLE)
90522-033-000
|
$1.43 | ||
|
Available to order. Add to View Price |
|||
|
#17
OIL SEAL (25X47X6.5)
91253-033-000
Superseded by 91253-033-003
|
$7.14 | ||
|
Available to order. Add to View Price |
|||
|
#17
OIL SEAL (25X47X6.5)
91253-033-003
|
$7.14 | ||
|
Unavailable |
|||
|
#18
NUT, HEX. (6MM)
90310-KA3-711
Superseded by 94001-06200-0S
|
$1.32 | ||
|
Available to order. Add to View Price |
|||
|
#18
NUT, HEX. (6MM)
94000-06000-0S
Superseded by 94001-06200-0S
|
$1.32 | ||
|
Unavailable |
|||
|
#18
NUT, HEX. (6MM)
94001-06000
Superseded by 94001-06200-0S
|
$1.32 | ||
|
Unavailable |
|||
|
#18
NUT, HEX. (6MM)
94001-06000-0S
Superseded by 94001-06200-0S
|
$1.32 | ||
|
Unavailable |
|||
|
#18
NUT, HEX. (6MM)
94001-06008-0S
Superseded by 94001-06200-0S
|
$1.32 | ||
|
Unavailable |
|||
|
#18
NUT, HEX. (6MM)
94001-06200-0S
|
$1.32 | ||
|
Unavailable |
|||
|
#18
NUT, HEX. (6MM)
94030-06000
Superseded by 94001-06200-0S
|
$1.32 | ||
|
Unavailable |
|||
|
#19
NUT, CASTLE (12MM)
94011-12000-0S
|
$1.70 | ||
|
Available to order. Add to View Price |
|||
|
#20
NUT, HEX. (8MM)
94030-08000
|
$1.07 | ||
|
Available to order. Add to View Price |
|||
|
#21
WASHER, PLAIN (6MM)
94101-06000
Superseded by 94101-06800
|
$0.64 | ||
|
Available to order. Add to View Price |
|||
|
#21
WASHER, PLAIN (6MM)
94101-06080
Superseded by 94101-06800
|
$0.64 | ||
|
Unavailable |
|||
|
#21
WASHER, PLAIN (6MM)
94101-06800
|
$0.64 | ||
|
Unavailable |
|||
|
#22
WASHER, SPRING (6MM)
94111-06000
|
$0.93 | ||
|
Available to order. Add to View Price |
|||
|
#23
PIN, COTTER (3.0X45)
94201-30250
Superseded by 94201-30450
|
$1.03 | ||
|
Available to order. Add to View Price |
|||
|
#23
PIN, COTTER (3.0X45)
94201-30300
Superseded by 94201-30450
|
$1.03 | ||
|
Unavailable |
|||
|
#23
PIN, COTTER (3.0X45)
94201-30400
Superseded by 94201-30450
|
$1.03 | ||
|
Unavailable |
|||
|
#23
PIN, COTTER (3.0X45)
94201-30450
|
$1.03 | ||
|
Unavailable |
|||
|
#24
BEARING, RADIAL BALL (6301U)
96140-63010-10
|
$17.20 | ||
|
Available to order. Add to View Price |
|||
|
#25
BEARING, RADIAL BALL (6303U)
96140-63030
Superseded by 96140-63030-10
|
$16.78 | ||
|
Available to order. Add to View Price |
|||
|
#25
BEARING, RADIAL BALL (6303U)
96140-63030-00
Superseded by 96140-63030-10
|
$16.78 | ||
|
Unavailable |
|||
|
#25
BEARING, RADIAL BALL (6303U)
96140-63030-10
|
$16.78 | ||
|
Unavailable |
|||
|
#26
SPOKE B (10X161.5) (OUTSIDE)
97251-42163-13
|
$4.52 | ||
|
Available to order. Add to View Price |
|||
|
#27
SPOKE B (10X161) (INSIDE)
97519-42162-12
|
$4.52 | ||
|
Available to order. Add to View Price |
|||
