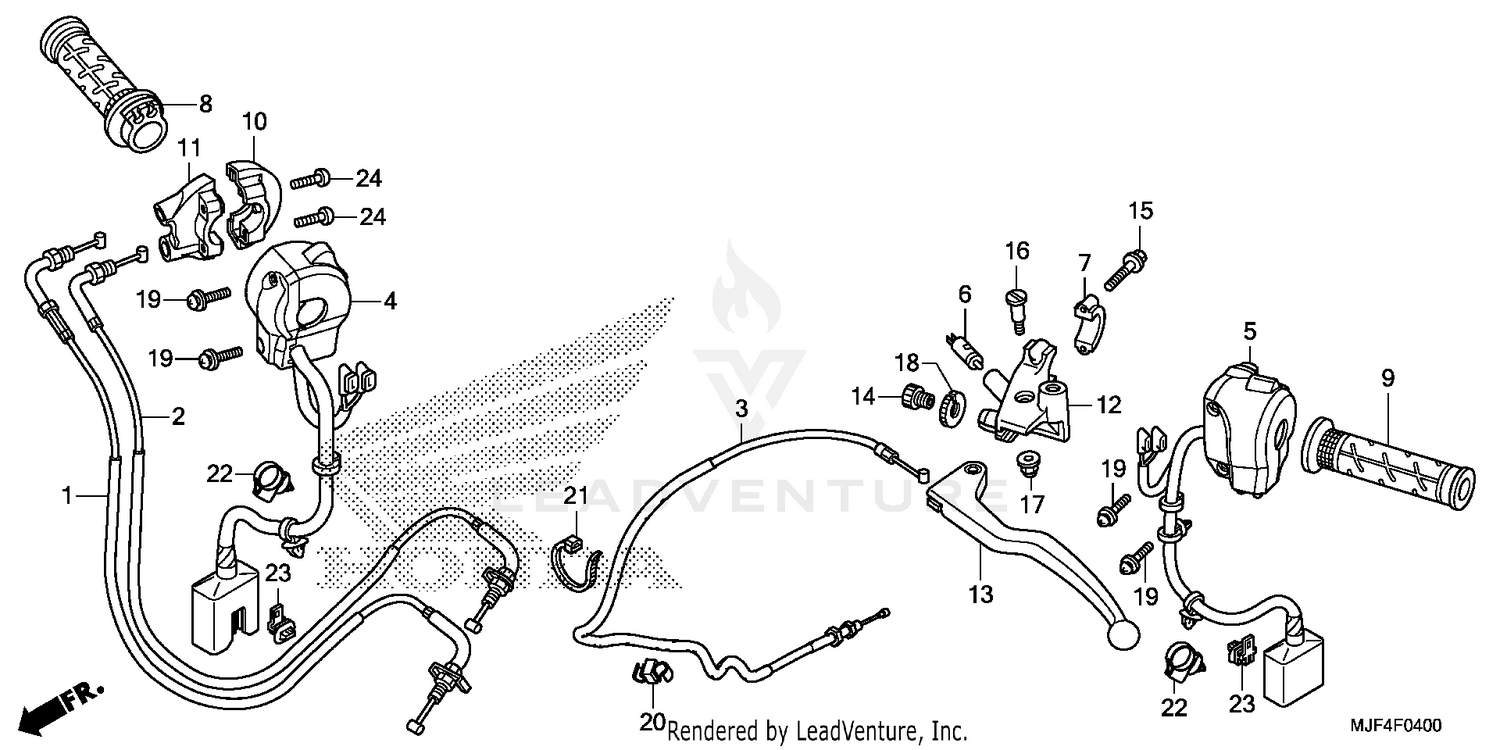

Handle Lever + Switch + Cable (1) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CABLE A, THROTTLE
17910-MJF-A01
|
$36.89 | ||
|
Available to order. Add to View Price |
|||
|
#2
CABLE B, THROTTLE
17920-MJF-A01
|
$36.89 | ||
|
Available to order. Add to View Price |
|||
|
#3
CABLE, CLUTCH
22870-MJF-A00
|
$36.23 | ||
|
Available to order. Add to View Price |
|||
|
#4
SWITCH ASSY., ENGINE STOP
35130-MJF-A03
|
$149.96 | ||
|
Available to order. Add to View Price |
|||
|
#5
SWITCH ASSY., TURN SIGNAL
35200-MJF-A03
|
$183.13 | ||
|
Available to order. Add to View Price |
|||
|
#6
SWITCH, FR. LEVER (TOYO DENSO)
35330-413-003
|
$25.39 | ||
|
Available to order. Add to View Price |
|||
|
#7
HOLDER, MASTER CYLINDER
45517-166-006
|
$15.70 | ||
|
Available to order. Add to View Price |
|||
|
#8
GRIP, THROTTLE
53140-MGS-305
Superseded by 53140-MGS-D30
|
$32.83 | ||
|
Available to order. Add to View Price |
|||
|
#9
GRIP, L. HANDLE
53150-MGS-305
Superseded by 53150-MGS-D30
|
$14.04 | ||
|
Available to order. Add to View Price |
|||
|
#10
HOUSING, THROTTLE (UPPER) (RR.)
53167-MGS-D30
|
$19.54 | ||
|
Available to order. Add to View Price |
|||
|
#11
HOUSING, THROTTLE (LOWER) (FR.)
53168-MGS-D30
|
$20.84 | ||
|
Available to order. Add to View Price |
|||
|
#12
BRACKET, HANDLE LEVER
53172-KT7-751
|
$32.98 | ||
|
Available to order. Add to View Price |
|||
|
#13
LEVER, L. HANDLE
53178-MAV-305
Superseded by 53178-MAV-750
|
$21.33 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, CLUTCH WIRE ADJUSTING
53192-349-690
|
$8.45 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, FLANGE (6X22)
90101-MBZ-G00
|
$1.57 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, L. HANDLEBAR LEVER PIVOT
90113-438-000
|
$9.12 | ||
|
Available to order. Add to View Price |
|||
|
#17
NUT, CAP (6MM)
90201-415-000
|
$2.34 | ||
|
Available to order. Add to View Price |
|||
|
#18
NUT, FIXING
90321-KT7-760
|
$12.11 | ||
|
Available to order. Add to View Price |
|||
|
#19
SCREW-WASHER (5X16)
90508-MGS-D30
|
$2.03 | ||
|
Available to order. Add to View Price |
|||
|
#20
CLIP, JOINT
90601-MEJ-000
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#21
BAND, WIRE (165MM) (BLACK)
90651-KV6-003
|
$3.50 | ||
|
Available to order. Add to View Price |
|||
|
#22
CLAMP, HARNESS
90652-HC4-003
|
$7.16 | ||
|
Available to order. Add to View Price |
|||
|
#23
CLIP, CONNECTOR (BLACK)
91533-MGS-D30
|
$1.48 | ||
|
Available to order. Add to View Price |
|||
|
#24
SCREW, PAN (5X22)
93500-05022-0G
|
$1.00 | ||
|
Available to order. Add to View Price |
|||
