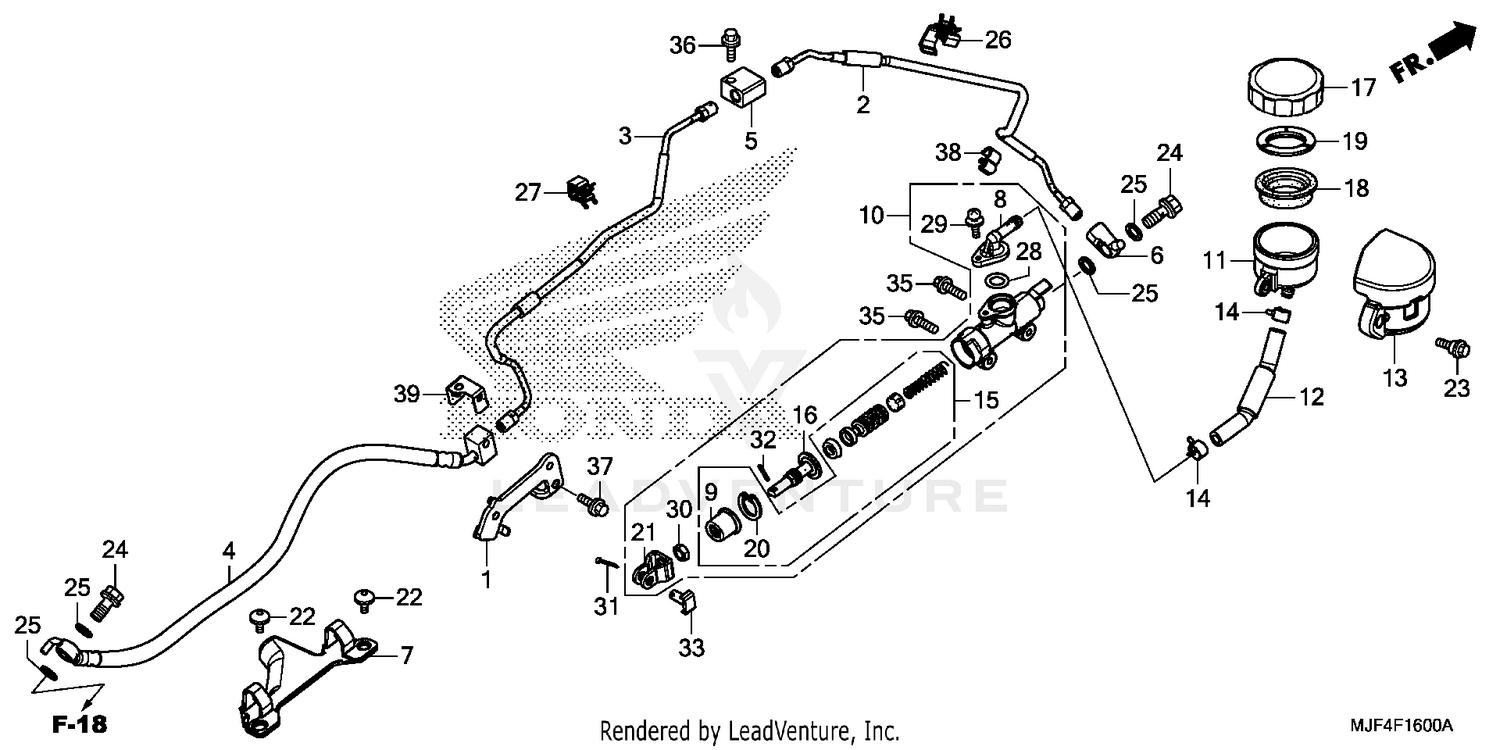

Rear Brake Master Cylinder (1) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
STAY, RR. BRAKE HOSE
43160-MJF-A00
|
$17.43 | ||
|
Available to order. Add to View Price |
|||
|
#2
PIPE A, RR. BRAKE
43310-MJF-A00
|
$20.89 | ||
|
Available to order. Add to View Price |
|||
|
#3
PIPE B, RR. BRAKE
43311-MJF-A00
|
$25.01 | ||
|
Available to order. Add to View Price |
|||
|
#4
HOSE D, RR. BRAKE
43313-MJF-A01
|
$107.17 | ||
|
Available to order. Add to View Price |
|||
|
#5
JOINT, BRAKE PIPE (2WAY)
43314-MJF-A01
|
$24.47 | ||
|
Available to order. Add to View Price |
|||
|
#6
JOINT, BRAKE PIPE
43321-MJF-A01
|
$39.57 | ||
|
Available to order. Add to View Price |
|||
|
#7
GUIDE, RR. BRAKE HOSE
43468-MGS-D31
|
$18.12 | ||
|
Available to order. Add to View Price |
|||
|
#8
CONNECTOR, MASTER CYLINDER
43503-MER-D01
|
$8.45 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOOT
43504-MB2-006
|
$11.64 | ||
|
Available to order. Add to View Price |
|||
|
#10
MASTER CYLINDER SUB-ASSY., RR. BRAKE (NISSIN)
43510-MJF-305
Superseded by 43510-MJF-A01
|
$240.04 | ||
|
Available to order. Add to View Price |
|||
|
#11
CUP, OIL
43511-MR7-016
|
$35.47 | ||
|
Available to order. Add to View Price |
|||
|
#12
HOSE, RR. BRAKE MASTER CYLINDER
43512-MJF-A01
|
$21.13 | ||
|
Available to order. Add to View Price |
|||
|
#13
COVER, RR. MASTER CYLINDER CUP
43513-MJF-A00
|
$20.55 | ||
|
Available to order. Add to View Price |
|||
|
#14
CLAMP, MASTER CYLINDER OIL HOSE
43514-KS6-701
|
$15.21 | ||
|
Available to order. Add to View Price |
|||
|
#15
PISTON SET, MASTER CYLINDER (NISSIN)
43520-MJ6-315
|
$54.98 | ||
|
Available to order. Add to View Price |
|||
|
#16
ROD, PUSH
43530-MV9-006
|
$38.59 | ||
|
Available to order. Add to View Price |
|||
|
#17
CAP, OIL CUP
45513-MEL-D21
|
$21.35 | ||
|
Available to order. Add to View Price |
|||
|
#18
DIAPHRAGM
45520-300-000
|
$10.48 | ||
|
Available to order. Add to View Price |
|||
|
#19
PLATE, DIAPHRAGM
45521-MJ6-006
|
$4.87 | ||
|
Available to order. Add to View Price |
|||
|
#20
CIRCLIP
46182-MEL-D21
|
$2.10 | ||
|
Available to order. Add to View Price |
|||
|
#21
JOINT, BRAKE ROD
46504-MAH-671
|
$15.61 | ||
|
Available to order. Add to View Price |
|||
|
#22
SCREW, SPECIAL (5X14)
90101-MJJ-D30
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT, FLANGE (6X25)
90113-MJF-A00
|
$4.84 | ||
|
Available to order. Add to View Price |
|||
|
#24
BOLT, OIL (10X22)
90145-MS9-612
|
$8.20 | ||
|
Available to order. Add to View Price |
|||
|
#25
WASHER, OIL BOLT
90545-300-000
|
$4.80 | ||
|
Available to order. Add to View Price |
|||
|
#26
CLAMP, BRAKE PIPE (7.0X2)
90661-MEW-921
|
$3.08 | ||
|
Available to order. Add to View Price |
|||
|
#27
CLAMP, BRAKE PIPE (7.0)
90662-MGS-D81
|
$3.30 | ||
|
Available to order. Add to View Price |
|||
|
#28
O-RING (14.8X2.4)
91212-422-006
|
$2.81 | ||
|
Available to order. Add to View Price |
|||
|
#29
SCREW-WASHER (4X12)
93893-04012-07
|
$1.35 | ||
|
Available to order. Add to View Price |
|||
|
#29
SCREW-WASHER (4X12)
93893-04012-17
Superseded by 93893-04012-07
|
$1.35 | ||
|
Unavailable |
|||
|
#30
NUT, HEX. (8MM)
94002-08000-0S
|
$1.32 | ||
|
Available to order. Add to View Price |
|||
|
#31
PIN, SPLIT (2.0X15)
94201-20150
|
$1.03 | ||
|
Available to order. Add to View Price |
|||
|
#32
PIN, SPRING (2X10)
94305-20102
|
$0.94 | ||
|
Available to order. Add to View Price |
|||
|
#33
PIN D, JOINT
95015-54000
|
$5.09 | ||
|
Available to order. Add to View Price |
|||
|
#34
BOLT, FLANGE (6X14)
95701-06014-00
|
$1.09 | ||
|
Available to order. Add to View Price |
|||
|
#35
BOLT, FLANGE (6X18)
95701-06018-00
|
$1.64 | ||
|
Available to order. Add to View Price |
|||
|
#36
BOLT, FLANGE (6X12)
96001-06012-00
|
$1.79 | ||
|
Available to order. Add to View Price |
|||
|
#37
BOLT, FLANGE (6X14)
96001-06014-00
|
$1.79 | ||
|
Available to order. Add to View Price |
|||
|
#38
CLAMP, PIPE
11152-KS4-003
|
$8.56 | ||
|
Available to order. Add to View Price |
|||
|
#39
STAY, SENSOR WIRE
38515-MJF-A00
|
$4.38 | ||
|
Available to order. Add to View Price |
|||
