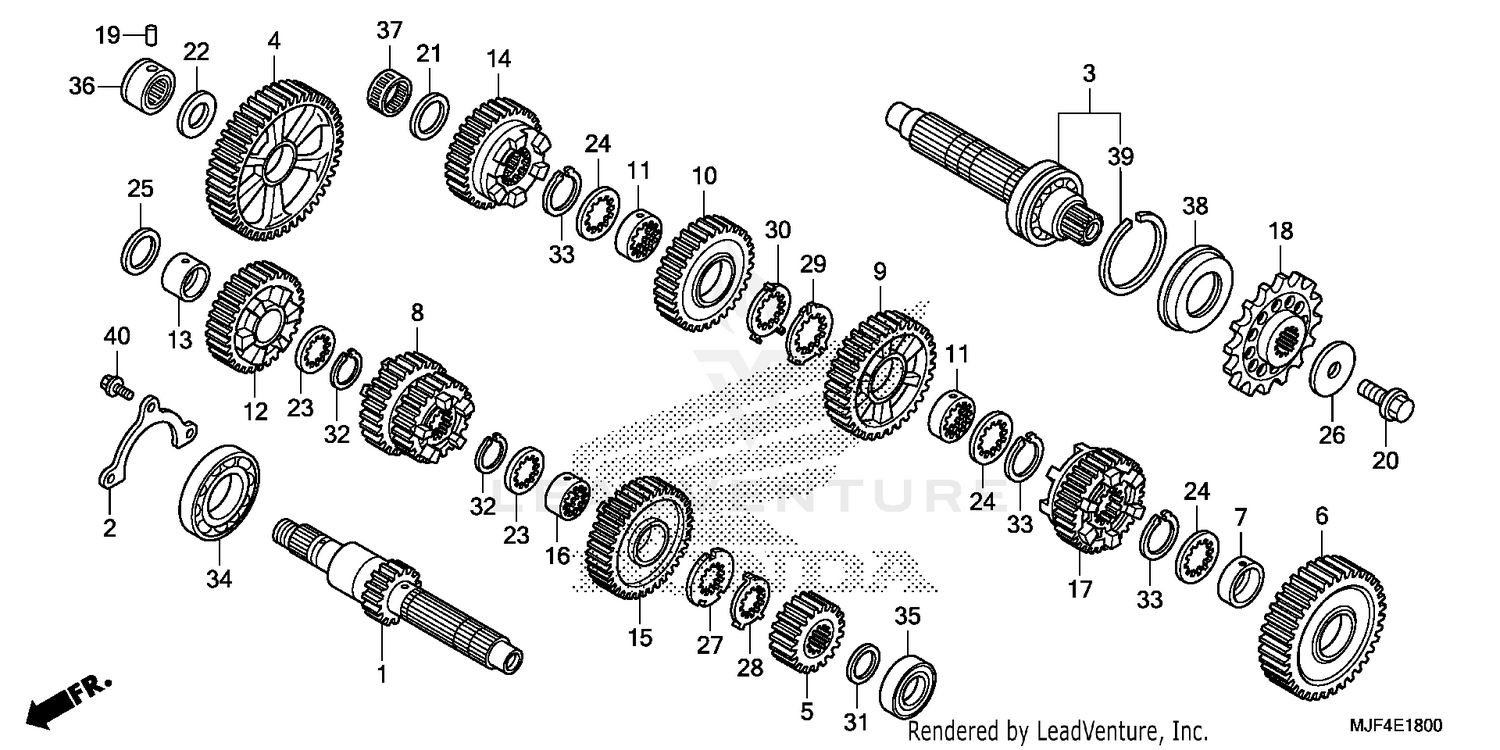

Transmission (ctx700n/na) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
MAINSHAFT (16T)
23211-MGS-D30
|
$252.14 | ||
|
Available to order. Add to View Price |
|||
|
#2
PLATE, MAINSHAFT BEARING SETTING
23212-MGS-D30
|
$3.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
COUNTERSHAFT
23220-MGS-D30
|
$369.96 | ||
|
Available to order. Add to View Price |
|||
|
#4
GEAR, COUNTER FIRST (45T)
23421-MGS-D30
|
$196.63 | ||
|
Available to order. Add to View Price |
|||
|
#5
GEAR, MAINSHAFT SECOND (19T)
23431-MGS-D30
|
$79.11 | ||
|
Available to order. Add to View Price |
|||
|
#6
GEAR, COUNTERSHAFT SECOND (36T)
23441-MGS-D30
|
$155.81 | ||
|
Available to order. Add to View Price |
|||
|
#7
COLLAR (28MM)
23442-MM4-000
|
$25.82 | ||
|
Available to order. Add to View Price |
|||
|
#8
GEAR, MAINSHAFT THIRD & FOURTH (22T/25T)
23451-MGS-D30
|
$187.02 | ||
|
Available to order. Add to View Price |
|||
|
#9
GEAR, COUNTERSHAFT THIRD (32T)
23461-MGS-D30
|
$103.11 | ||
|
Available to order. Add to View Price |
|||
|
#10
GEAR, COUNTER FOURTH (30T)
23481-MGS-D30
|
$93.56 | ||
|
Available to order. Add to View Price |
|||
|
#11
COLLAR, SPLINE (28X31X9)
23482-MV9-670
|
$20.96 | ||
|
Available to order. Add to View Price |
|||
|
#12
GEAR, MAINSHAFT FIFTH (30T)
23491-MGS-D30
|
$103.11 | ||
|
Available to order. Add to View Price |
|||
|
#13
COLLAR (25X28X19)
23492-MGS-D30
|
$9.98 | ||
|
Available to order. Add to View Price |
|||
|
#14
GEAR, COUNTERSHAFT FIFTH (31T)
23501-MGS-D30
|
$184.58 | ||
|
Available to order. Add to View Price |
|||
|
#15
GEAR, MAINSHAFT SIXTH (37T)
23511-MGS-D30
|
$116.28 | ||
|
Available to order. Add to View Price |
|||
|
#16
COLLAR, SPLINE (25X28X13)
23512-MV9-670
|
$29.66 | ||
|
Available to order. Add to View Price |
|||
|
#17
GEAR, COUNTERSHAFT SIXTH (31T)
23521-MGS-D30
|
$160.61 | ||
|
Available to order. Add to View Price |
|||
|
#18
SPROCKET, DRIVE (16T)
23801-MGS-D30
|
$74.19 | ||
|
Available to order. Add to View Price |
|||
|
#19
PIN, GEARSHIFT FORK GUIDE
24261-283-000
|
$5.06 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT, SPECIAL (10MM)
90037-422-003
|
$8.80 | ||
|
Available to order. Add to View Price |
|||
|
#21
WASHER, THRUST (24X32X1.5)
90402-MEW-920
|
$2.47 | ||
|
Available to order. Add to View Price |
|||
|
#22
WASHER A, THRUST (20MM)
90451-704-000
|
$3.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
WASHER, SPLINE (25X31X1.5)
90451-KY2-000
|
$4.58 | ||
|
Available to order. Add to View Price |
|||
|
#24
WASHER, SPLINE (28X34X1.5)
90452-MR7-000
|
$6.90 | ||
|
Available to order. Add to View Price |
|||
|
#25
WASHER, THRUST (25MM)
90456-MA6-000
|
$2.92 | ||
|
Available to order. Add to View Price |
|||
|
#26
WASHER (10.2MM)
90459-438-000
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
WASHER, SPLINE (25MM)
90461-MW0-000
|
$6.07 | ||
|
Available to order. Add to View Price |
|||
|
#28
WASHER, LOCK (25MM)
90462-MBW-000
|
$7.47 | ||
|
Available to order. Add to View Price |
|||
|
#29
WASHER, SPLINE (28MM)
90463-MR7-000
|
$11.55 | ||
|
Available to order. Add to View Price |
|||
|
#30
WASHER, LOCK (28MM)
90464-MR7-000
|
$11.55 | ||
|
Available to order. Add to View Price |
|||
|
#31
WASHER, THRUST (20X0.9)
90469-ME5-000
|
$5.26 | ||
|
Available to order. Add to View Price |
|||
|
#32
CIRCLIP (25MM)
90601-107-000
|
$4.48 | ||
|
Available to order. Add to View Price |
|||
|
#33
CIRCLIP (28MM)
90603-MN4-000
|
$4.48 | ||
|
Available to order. Add to View Price |
|||
|
#34
BEARING, RADIAL BALL (31X68X15)
91001-MGS-D31
|
$23.11 | ||
|
Available to order. Add to View Price |
|||
|
#35
BEARING, RADIAL BALL (6204U)
91006-MGS-D31
|
$18.93 | ||
|
Available to order. Add to View Price |
|||
|
#36
BEARING, NEEDLE (20MM) (NTN)
91022-KT7-003
Superseded by 91022-MJE-DB1
|
$46.53 | ||
|
Available to order. Add to View Price |
|||
|
#37
BEARING, NEEDLE (24X28X10)
91026-MEL-003
|
$11.87 | ||
|
Available to order. Add to View Price |
|||
|
#38
OIL SEAL (34X62X8)
91207-KT8-003
|
$14.82 | ||
|
Available to order. Add to View Price |
|||
|
#39
RING, SNAP (62MM)
94560-62200
|
$3.32 | ||
|
Available to order. Add to View Price |
|||
|
#40
BOLT, FLANGE (6X14)
95701-06014-00
|
$1.09 | ||
|
Available to order. Add to View Price |
|||
