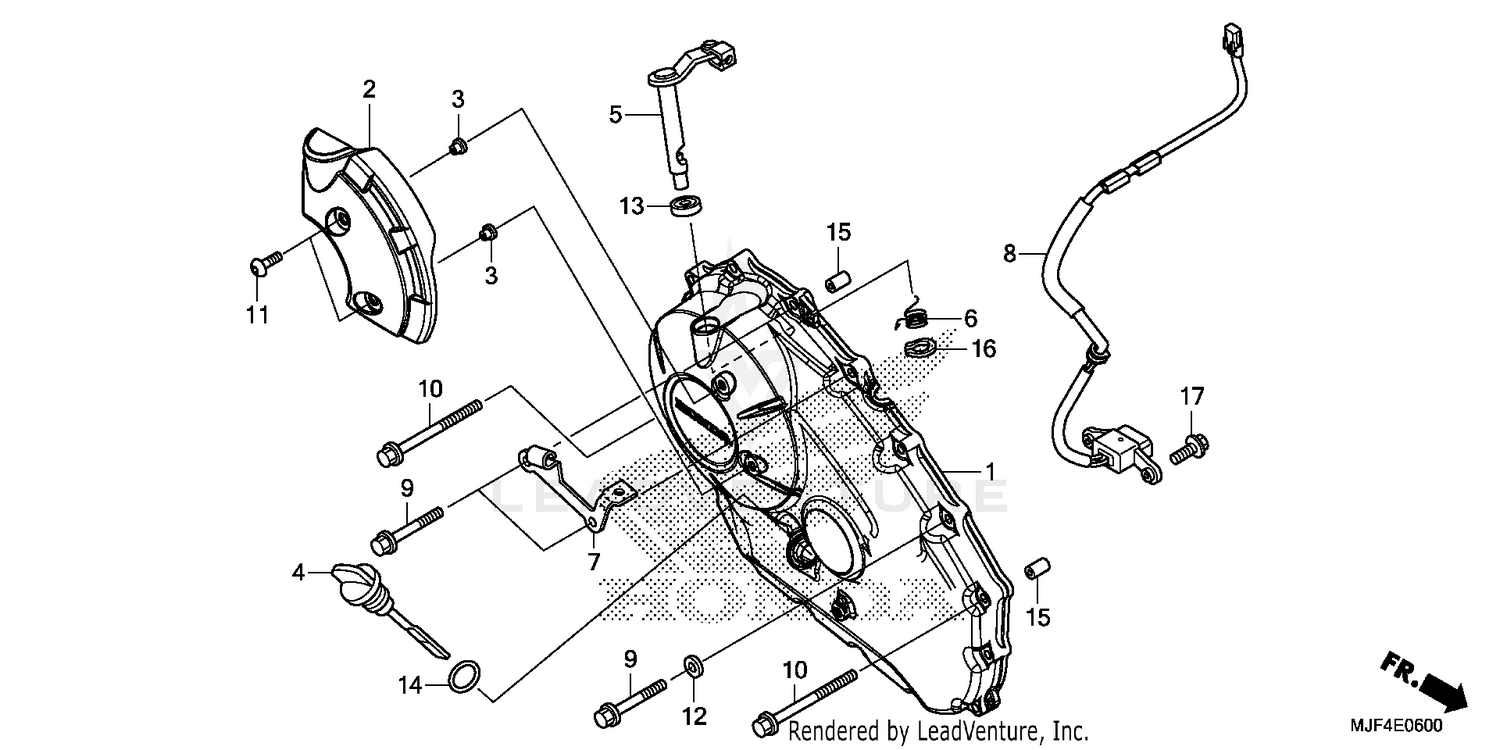

Right Crankcase Cover (1) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COVER, R. CRANKCASE
11330-MJF-A00
|
$405.06 | ||
|
Available to order. Add to View Price |
|||
|
#2
COVER, R. ENGINE SIDE
11380-MJF-A00
|
$14.84 | ||
|
Available to order. Add to View Price |
|||
|
#3
COLLAR
11385-MJF-A00
|
$3.36 | ||
|
Available to order. Add to View Price |
|||
|
#4
DIPSTICK, OIL
15650-MGS-D30
|
$31.26 | ||
|
Available to order. Add to View Price |
|||
|
#5
LEVER, CLUTCH
22810-MGS-D30
|
$87.86 | ||
|
Available to order. Add to View Price |
|||
|
#6
SPRING, CLUTCH LEVER
22815-413-000
|
$3.71 | ||
|
Available to order. Add to View Price |
|||
|
#7
RECEIVER, CLUTCH CABLE
22821-MJF-A00
|
$12.31 | ||
|
Available to order. Add to View Price |
|||
|
#8
GENERATOR ASSY., PULSE
30300-MJF-A01
|
$130.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT, FLANGE (6X28) (NSHF)
90006-GHB-680
|
$2.21 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, FLANGE (6X40) (NSHF)
90006-GHB-710
|
$2.09 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, SPECIAL (6X17)
90085-MGC-920
|
$2.82 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER, SEALING (6MM)
90488-425-000
|
$2.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
OIL SEAL (12X18X5) (ARAI)
91204-KK0-003
|
$6.07 | ||
|
Available to order. Add to View Price |
|||
|
#14
O-RING (18X3)
91307-035-000
|
$3.25 | ||
|
Available to order. Add to View Price |
|||
|
#15
PIN, DOWEL (8X14)
94301-08140
|
$2.25 | ||
|
Available to order. Add to View Price |
|||
|
#16
CIRCLIP (OUTER) (10MM)
94510-10000
|
$1.10 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, FLANGE (6X16)
95701-06016-00
|
$1.64 | ||
|
Available to order. Add to View Price |
|||
