2005 Honda FOURTRAX FOREMAN Carburetor OEM Parts

Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Labels
+
Other
+
Seat
+
Suspension
+
< Back to Assembly Types

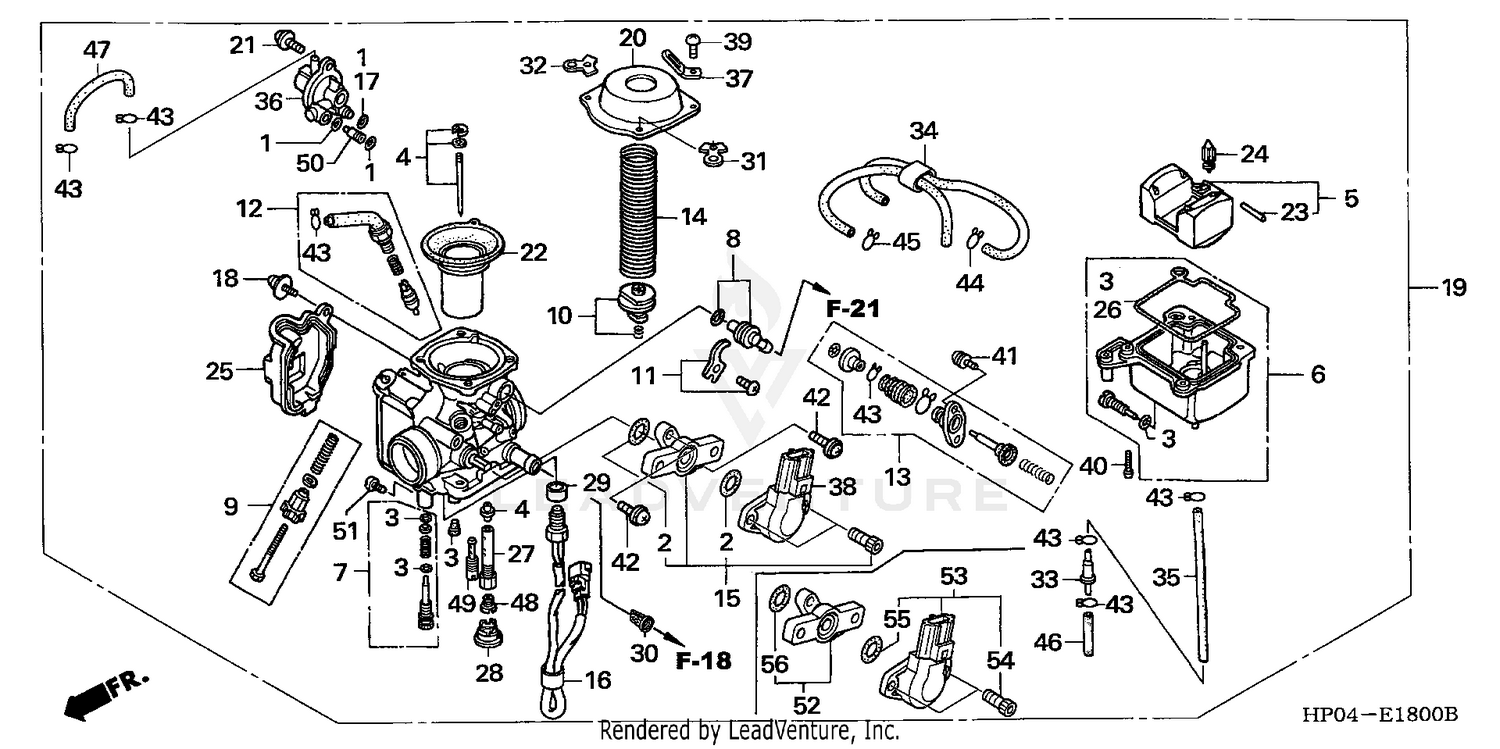

Carburetor Diagram

Item MSRP Qty
#1 GASKET SET C
16010-HM7-670
Superseded by 16041-MZ5-600
 $20.89
Available to order.
Add to View Price
#2 GASKET SET
16010-HN2-003
 $7.44
Available to order.
Add to View Price
#3 GASKET SET
16010-HN7-003
 $20.24
Available to order.
Add to View Price
#4 NEEDLE SET, JET
16012-HP0-A01
 $23.73
Available to order.
Add to View Price
#5 FLOAT SET
16013-HN8-003
 $45.60
Available to order.
Add to View Price
#6 CHAMBER SET, FLOAT
16015-HP0-A01
 $44.55
Available to order.
Add to View Price
#7 SCREW SET
16016-HP0-A01
 $24.20
Available to order.
Add to View Price
#8 JOINT SET
16026-MR1-004
 $47.56
Available to order.
Add to View Price
#9 SCREW SET
16028-HP0-A01
 $23.11
Available to order.
Add to View Price
#10 PLATE SET, VALVE
16037-HN2-003
 $20.96
Available to order.
Add to View Price
#11 PLATE SET, STAY
16038-HN8-003
 $7.66
Available to order.
Add to View Price
#12 VALVE, STARTER
16046-HN2-003
 $64.31
Available to order.
Add to View Price
#13 PUMP SET
16048-HM7-700
Superseded by 16048-HN7-003
 $101.61
Available to order.
Add to View Price
#14 SPRING, COMPRESSION COIL
16050-HP0-A01
 $10.73
Available to order.
Add to View Price
#15 SPACER SET, THROTTLE SENSOR
16060-HP0-A01
Superseded by 16060-HP0-A02
 $34.78
Available to order.
Add to View Price
#15 SPACER SET, THROTTLE SENSOR
16060-HP0-A02
 $34.78
Unavailable
#16 HEATER ASSY.
16070-HP0-A01
 $72.07
Available to order.
Add to View Price
#17 O-RING (1.3X4.3)
16075-GHB-640
 $3.17
Available to order.
Add to View Price
#18 SCREW-WASHER
16080-HC0-003
 $4.98
Available to order.
Add to View Price
#19 CARBURETOR ASSY
16100-HP0-A02
Superseded by 16100-HP0-A04
 $730.38
Unavailable
#19 CARBURETOR ASSY
16100-HP0-A03
Superseded by 16100-HP0-A04
 $730.38
Unavailable
#20 TOP
16107-HN2-003
 $38.99
Available to order.
Add to View Price
#21 SCREW
16108-MW0-750
 $2.75
Available to order.
Add to View Price
#22 PISTON, VACUUM
16111-HN2-003
 $138.36
Available to order.
Add to View Price
#23 PIN, ARM
16152-HN8-003
 $4.91
Available to order.
Add to View Price
#24 VALVE, FLOAT
16155-HN7-003
 $33.48
Available to order.
Add to View Price
#25 COVER, BODY
16157-HN8-003
 $31.56
Available to order.
Add to View Price
#26 GASKET, FLOAT CHAMBER
16163-MEA-671
 $26.85
Available to order.
Add to View Price
#27 HOLDER, NEEDLE JET
16165-HN2-003
 $37.35
Available to order.
Add to View Price
#28 HOLDER, JET
16168-HC4-003
 $14.19
Available to order.
Add to View Price
#29 COLLAR, SETTING
16172-KEB-610
 $3.97
Available to order.
Add to View Price
#30 SCREEN, FUEL STRAINER
16176-MW3-A80
 $8.19
Available to order.
Add to View Price
#31 BINDER
16178-HP0-A01
 $2.35
Available to order.
Add to View Price
#32 BINDER
16179-HP0-A01
 $2.35
Available to order.
Add to View Price
#33 VALVE, ONE-WAY
16180-HC4-003
 $20.89
Available to order.
Add to View Price
#34 TUBE, AIR VENT
16196-HP0-A01
 $9.76
Available to order.
Add to View Price
#35 TUBE
16198-HP0-A01
 $2.98
Available to order.
Add to View Price
#36 VALVE ASSY., AIR CUT
16510-MBW-601
 $135.36
Available to order.
Add to View Price
#37 CLIP, PLATE
17191-MT2-740
 $4.06
Available to order.
Add to View Price
#38 SENSOR ASSY,THROT
37890-HN2-006
Superseded by 37890-H09-J02
 $180.04
Unavailable
#39 SCREW, PAN (4X8)
93500-04008-0H
 $0.90
Available to order.
Add to View Price
#39 SCREW, PAN (4X8)
93500-04008-1H
Superseded by 93500-04008-0H
 $0.90
Unavailable
#40 SCREW, PAN (4X14)
93500-04014-0H
 $0.81
Available to order.
Add to View Price
#40 SCREW, PAN (4X14)
93500-04014-1H
Superseded by 93500-04014-0H
 $0.81
Unavailable
#41 SCREW-WASHER (4X12)
93892-04012-08
 $0.63
Available to order.
Add to View Price
#41 SCREW-WASHER (4X12)
93892-04012-18
Superseded by 93892-04012-08
 $0.63
Unavailable
#42 SCREW-WASHER (5X14)
93892-05014-08
 $1.10
Available to order.
Add to View Price
#42 SCREW-WASHER (5X14)
93892-05014-18
Superseded by 93892-05014-08
 $1.10
Unavailable
#43 CLIP, TUBE (B7)
95002-02079
 $1.31
Available to order.
Add to View Price
#44 CLIP, TUBE (B8)
95002-02089
 $1.13
Available to order.
Add to View Price
#45 CLIP, TUBE (B6.5)
95002-02659
 $1.20
Available to order.
Add to View Price
#46 BULK HOSE, VACUUM (3.5X1000) (3.5X50)
95005-35001-20M
 $11.22
Available to order.
Add to View Price
#47 BULK HOSE, VACUUM (3.5X1000) (3.5X110)
95005-35001-20M
 $11.22
Unavailable
#48 JET, MAIN (#158)
99101-HN2-1580
 $12.51
Available to order.
Add to View Price
#48 JET, MAIN (#120)
99101-GHB-1200
Superseded by 99101-MBZ-1200
 $10.56
Available to order.
Add to View Price
#48 JET, MAIN (#162)
99101-HP0-1620
 $8.84
Available to order.
Add to View Price
#49 JET, SLOW (#45)
99104-HN2-0450
Superseded by 99104-KPF-0450
 $13.75
Available to order.
Add to View Price
#50 JET (#170)
99108-HP0-1700
 $4.54
Available to order.
Add to View Price
#51 JET (#60)
99112-HP0-0600
 $4.93
Available to order.
Add to View Price
#52 SPACER SET, THROTTLE SENSOR
16060-HP0-A02
 $34.78
Unavailable
#53 CARBURETOR ASSY
16061-HP0-A01
Superseded by 16061-HP0-A02
 $256.09
Unavailable
#54 BOLT, BREAK HEAD
16083-HP0-A01
 $6.25
Available to order.
Add to View Price
#55 O-RING
16075-HN2-A21
 $3.35
Available to order.
Add to View Price
#56 O-RING (14.8X1.9)
91304-PT0-000
 $4.01
Available to order.
Add to View Price
