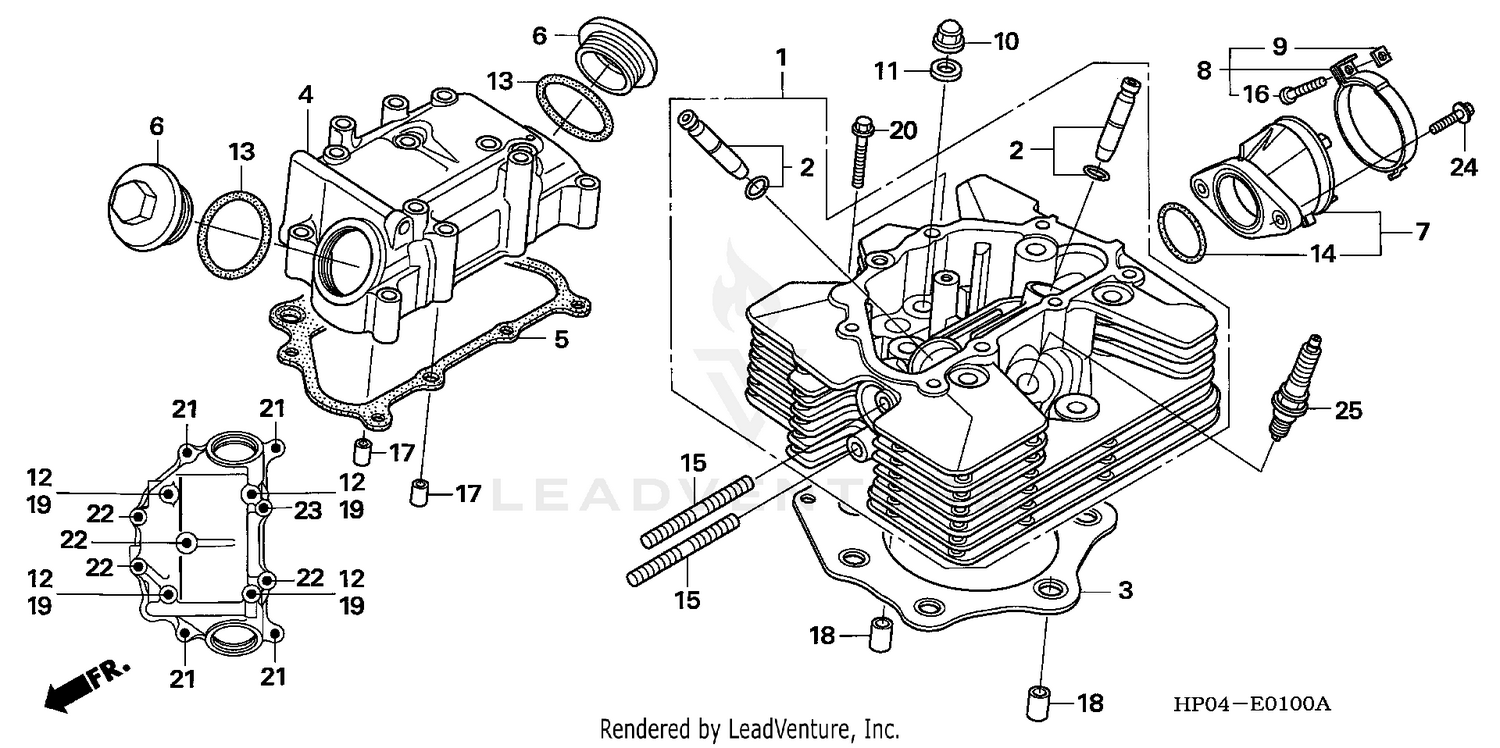

Cylinder Head Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CYLINDER HEAD
12200-HP0-A01
|
$589.47 | ||
|
Available to order. Add to View Price |
|||
|
#2
GUIDE ASSY., VALVE (OVER SIZE)
12204-HP0-305
|
$25.36 | ||
|
Available to order. Add to View Price |
|||
|
#3
GASKET, CYLINDER HEAD
12251-HP0-A00
|
$24.18 | ||
|
Available to order. Add to View Price |
|||
|
#3
GASKET, CYLINDER HEAD (OVER SIZE)
12252-HP0-305
|
$25.74 | ||
|
Available to order. Add to View Price |
|||
|
#4
COVER, CYLINDER HEAD
12310-HP0-A00
|
$184.42 | ||
|
Available to order. Add to View Price |
|||
|
#5
GASKET, HEAD COVER
12315-HP0-A00
|
$18.31 | ||
|
Available to order. Add to View Price |
|||
|
#6
CAP, TAPPET ADJUSTING HOLE
12361-028-000
|
$10.21 | ||
|
Available to order. Add to View Price |
|||
|
#7
INSULATOR, CARBURETOR
16210-HP0-A00
|
$45.47 | ||
|
Available to order. Add to View Price |
|||
|
#8
BAND A, INSULATOR
16217-MW4-000
|
$6.64 | ||
|
Available to order. Add to View Price |
|||
|
#9
NUT, SQUARE (5MM)
16222-MV4-300
|
$2.34 | ||
|
Available to order. Add to View Price |
|||
|
#10
NUT, CAP (10MM)
90201-HA0-000
|
$7.75 | ||
|
Available to order. Add to View Price |
|||
|
#10
NUT, CAP (10MM)
90202-HA0-000
Superseded by 90201-HA0-000
|
$7.75 | ||
|
Unavailable |
|||
|
#11
WASHER, PLAIN (10MM)
90401-KF9-900
|
$2.36 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER, SEALING (6MM)
90441-706-000
|
$1.40 | ||
|
Available to order. Add to View Price |
|||
|
#13
O-RING (33.5X3.0)
91302-943-003
Superseded by 91304-HB3-003
|
$9.25 | ||
|
Available to order. Add to View Price |
|||
|
#13
O-RING (33.5X3.0)
91304-HB3-003
|
$9.25 | ||
|
Unavailable |
|||
|
#14
O-RING (39.5X2.6)
91352-MG2-792
|
$10.04 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, STUD (8X25)
92900-08025-0B
|
$2.20 | ||
|
Available to order. Add to View Price |
|||
|
#16
SCREW, PAN (5X25)
93500-05025-0G
|
$0.81 | ||
|
Available to order. Add to View Price |
|||
|
#17
PIN, DOWEL (8X14)
94301-08140
|
$2.25 | ||
|
Available to order. Add to View Price |
|||
|
#18
PIN A, DOWEL (12X16)
94301-12160
|
$2.47 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, FLANGE (6X28)
95701-06028-00
|
$1.81 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT, FLANGE (6X32)
95701-06032-00
|
$1.88 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT, FLANGE (6X40)
95701-06040-00
|
$1.88 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT, FLANGE (6X65)
95701-06065-00
|
$1.66 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT, FLANGE (6X75)
95701-06075-00
|
$2.30 | ||
|
Available to order. Add to View Price |
|||
|
#24
BOLT, FLANGE (6X22)
96001-06022-00
|
$1.37 | ||
|
Available to order. Add to View Price |
|||
|
#25
SPARK PLUG (K16PR-U11) (DENSO)
98079-5515E
|
$3.27 | ||
|
Available to order. Add to View Price |
|||
|
#25
SPARK PLUG (BKR5E-11) (NGK)
98079-5514E
|
$3.47 | ||
|
Unavailable |
|||
