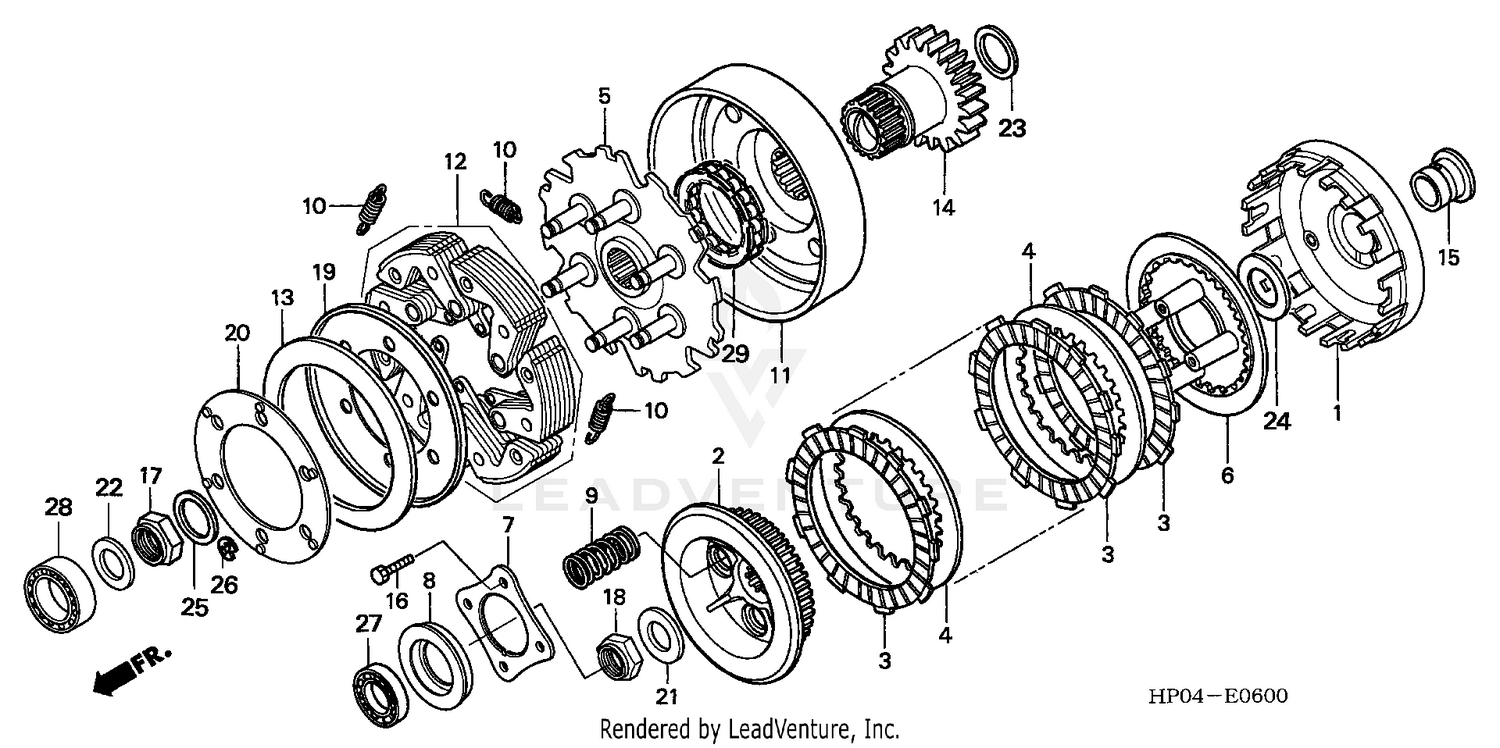

Clutch Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CLUTCH OUTER
22100-HP0-A00
|
$340.06 | ||
|
Available to order. Add to View Price |
|||
|
#2
CENTER, CLUTCH
22121-HP0-A00
|
$95.06 | ||
|
Available to order. Add to View Price |
|||
|
#3
DISK, CLUTCH FRICTION
22201-ML4-610
|
$19.01 | ||
|
Available to order. Add to View Price |
|||
|
#3
DISK, CLUTCH FRICTION
22201-377-000
Superseded by 22201-ML4-610
|
$19.01 | ||
|
Unavailable |
|||
|
#4
PLATE, CLUTCH
22321-HN0-670
|
$14.51 | ||
|
Available to order. Add to View Price |
|||
|
#5
PLATE, DRIVE
22350-HP0-A00
|
$78.91 | ||
|
Available to order. Add to View Price |
|||
|
#6
PLATE, CLUTCH PRESSURE
22351-HP0-A00
|
$16.96 | ||
|
Available to order. Add to View Price |
|||
|
#7
PLATE, CLUTCH LIFTER
22366-HN0-670
|
$14.12 | ||
|
Available to order. Add to View Price |
|||
|
#8
COLLAR, CLUTCH LIFTER
22367-HN0-670
|
$7.60 | ||
|
Available to order. Add to View Price |
|||
|
#9
SPRING, CLUTCH
22401-HP0-A00
|
$6.77 | ||
|
Available to order. Add to View Price |
|||
|
#10
SPRING, CLUTCH
22451-HP0-A00
|
$2.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
CLUTCH OUTER
22500-HP0-A00
|
$59.82 | ||
|
Available to order. Add to View Price |
|||
|
#12
WEIGHT SET, CLUTCH
22535-HP0-305
|
$97.24 | ||
|
Available to order. Add to View Price |
|||
|
#13
SPRING, CONE DISK
22714-HN2-000
|
$21.13 | ||
|
Available to order. Add to View Price |
|||
|
#14
GEAR, DRIVE (29T)
23120-HP0-A00
|
$140.92 | ||
|
Available to order. Add to View Price |
|||
|
#15
BUSH (22MM)
23213-HP0-A00
|
$15.50 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, HEX. (6X25)
90001-HN0-670
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#17
NUT, LOCK (20MM)
90235-HM7-000
|
$7.47 | ||
|
Available to order. Add to View Price |
|||
|
#18
NUT, LOCK (18MM)
90236-HN5-M00
|
$6.26 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER (66X124X1.0)
90406-HN2-A00
|
$14.04 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER (66X124X1.0)
90406-HN2-000
Superseded by 90406-HN2-A00
|
$14.04 | ||
|
Unavailable |
|||
|
#20
WASHER (66X107X1.6)
90407-HN2-A00
|
$13.82 | ||
|
Available to order. Add to View Price |
|||
|
#20
WASHER (66X107X1.6)
90407-HN2-000
Superseded by 90407-HN2-A00
|
$13.82 | ||
|
Unavailable |
|||
|
#21
WASHER, SPECIAL (18MM)
90432-HP0-A00
|
$3.41 | ||
|
Available to order. Add to View Price |
|||
|
#22
WASHER, THRUST (17MM)
90452-HP0-A00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#23
WASHER, THRUST (29X40X2)
90457-HN2-000
|
$5.70 | ||
|
Available to order. Add to View Price |
|||
|
#24
WASHER, THRUST (22X45X0.8)
90458-HN0-670
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#25
WASHER, THRUST (20MM)
90459-KB4-670
|
$5.04 | ||
|
Available to order. Add to View Price |
|||
|
#26
CIRCLIP (7MM)
90605-HM8-000
|
$2.24 | ||
|
Available to order. Add to View Price |
|||
|
#27
BEARING, BALL (6903) (KOYO)
91008-HC4-004
|
$26.72 | ||
|
Available to order. Add to View Price |
|||
|
#28
BEARING, RADIAL BALL (6303SP)
91009-HA0-004
|
$45.55 | ||
|
Available to order. Add to View Price |
|||
|
#29
CLUTCH, ONE-WAY
91101-HA0-004
|
$140.80 | ||
|
Available to order. Add to View Price |
|||
