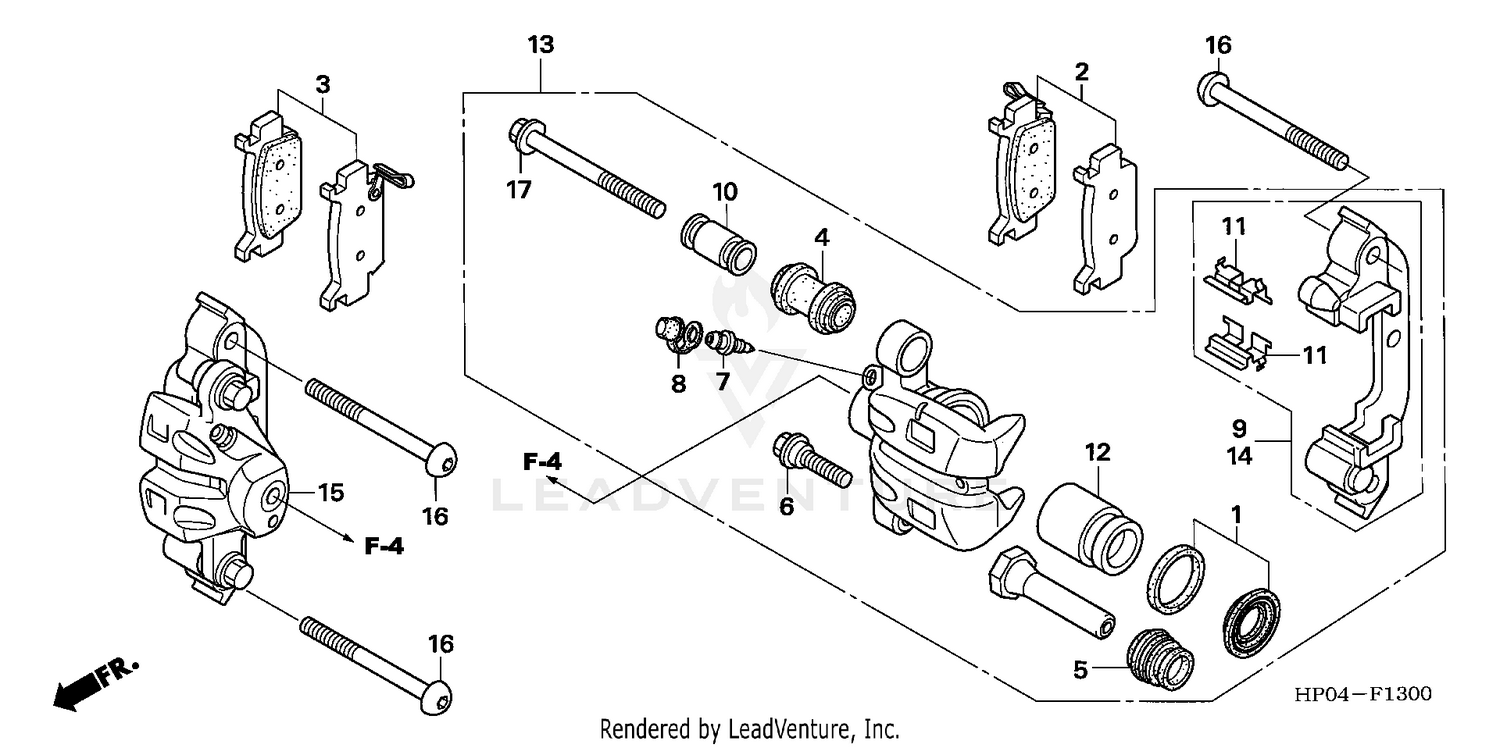

Front Brake Caliper Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SEAL SET, PISTON
06450-HP0-A01
|
$10.57 | ||
|
Available to order. Add to View Price |
|||
|
#2
PAD SET, L. FR.
06451-HP0-A01
Superseded by 06451-HP0-A02
|
$57.36 | ||
|
Available to order. Add to View Price |
|||
|
#2
PAD SET, L. FR.
06451-HP0-A02
|
$57.36 | ||
|
Unavailable |
|||
|
#3
PAD SET, R. FR.
06452-HP0-A01
Superseded by 06452-HP0-A02
|
$55.91 | ||
|
Available to order. Add to View Price |
|||
|
#3
PAD SET, R. FR.
06452-HP0-A02
|
$55.91 | ||
|
Unavailable |
|||
|
#4
BOOT, SLEEVE
43132-KT7-761
|
$9.87 | ||
|
Available to order. Add to View Price |
|||
|
#5
COVER, DUST
43234-S04-003
|
$5.63 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT, FLANGE (8X26)
43240-S6M-J51
|
$5.82 | ||
|
Available to order. Add to View Price |
|||
|
#7
SCREW, BLEEDER (NISSIN)
43352-HC5-971
|
$5.08 | ||
|
Available to order. Add to View Price |
|||
|
#8
CAP, BLEEDER
43353-461-771
|
$6.07 | ||
|
Available to order. Add to View Price |
|||
|
#9
BRACKET, L. FR.
45110-HP0-A01
|
$106.93 | ||
|
Available to order. Add to View Price |
|||
|
#10
SLEEVE
45111-MA3-006
|
$15.50 | ||
|
Available to order. Add to View Price |
|||
|
#11
RETAINER, FR. BRACKET
45112-HP0-A01
|
$7.58 | ||
|
Available to order. Add to View Price |
|||
|
#12
PISTON (34)
45117-HP0-A01
|
$40.67 | ||
|
Available to order. Add to View Price |
|||
|
#13
CALIPER SUB-ASSY., L. FR. (NISSIN)
45150-HP0-A01
|
$273.09 | ||
|
Available to order. Add to View Price |
|||
|
#14
BRACKET, R. FR.
45210-HP0-A01
|
$80.46 | ||
|
Available to order. Add to View Price |
|||
|
#15
CALIPER SUB-ASSY., R. FR. (NISSIN)
45250-HP0-A01
|
$194.65 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, SOCKET (10X50)
90102-HP0-A00
|
$5.02 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, FLANGE (8X49)
90180-MN8-006
|
$7.29 | ||
|
Available to order. Add to View Price |
|||
