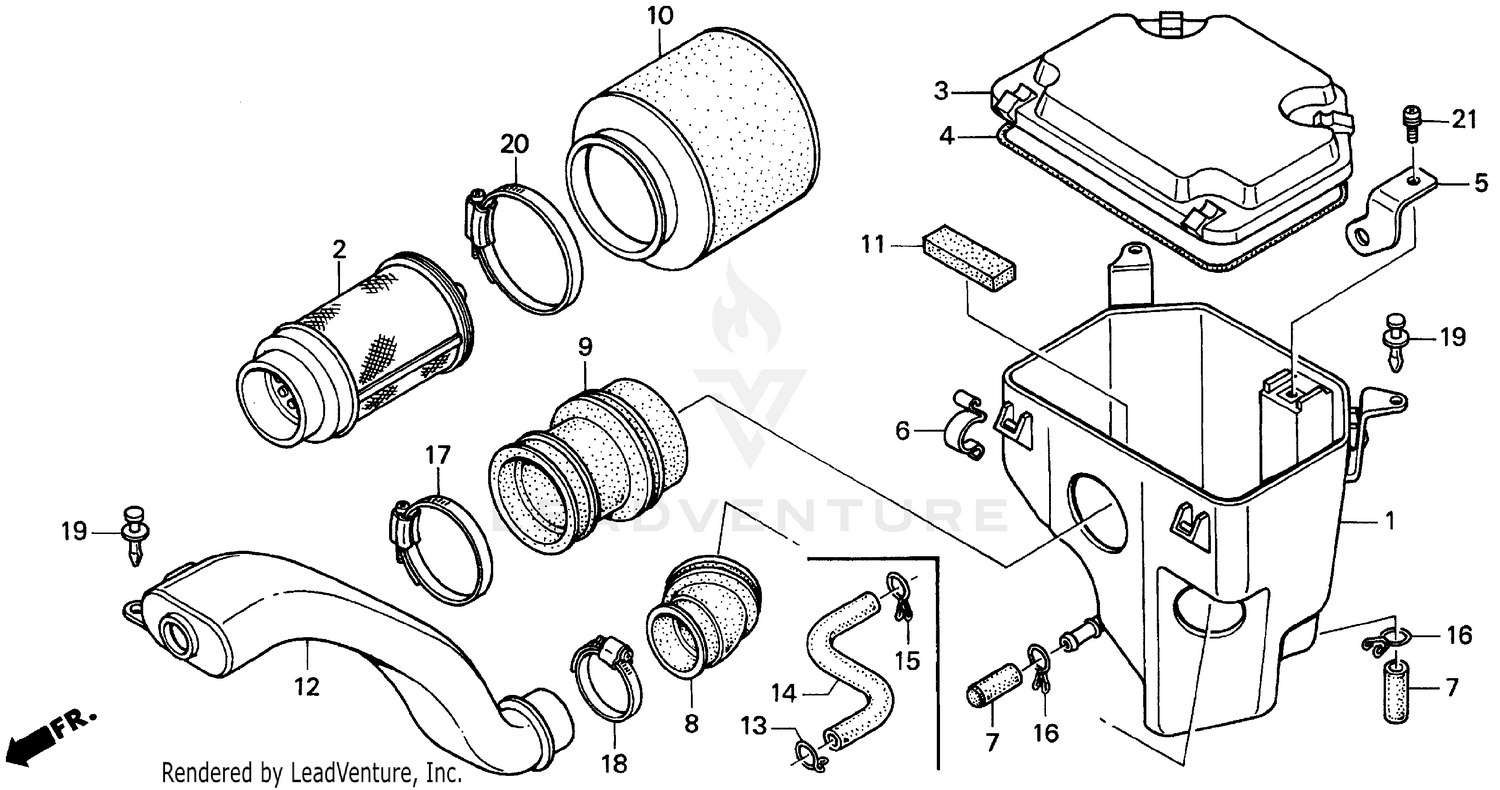

Air Cleaner Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HOUSING, AIR CLEANER
17210-HM8-000
|
$64.35 | ||
|
Available to order. Add to View Price |
|||
|
#2
BODY, AIR CLEANER
17211-HM8-000
|
$89.22 | ||
|
Available to order. Add to View Price |
|||
|
#3
LID, AIR CLEANER HOUSING
17217-HM8-000
|
$20.44 | ||
|
Available to order. Add to View Price |
|||
|
#4
SEAL, AIR CLEANER COVER
17219-HM8-000
|
$3.33 | ||
|
Available to order. Add to View Price |
|||
|
#5
STAY, AIR CLEANER ELEMENT
17221-HM8-000
|
$8.20 | ||
|
Available to order. Add to View Price |
|||
|
#6
SPRING, AIR CLEANER HOUSING LID (TOYO)
17223-HB3-003
|
$9.47 | ||
|
Available to order. Add to View Price |
|||
|
#6
SPRING, AIR CLEANER HOUSING LID
17223-HM8-000
|
$1.98 | ||
|
Available to order. Add to View Price |
|||
|
#7
TUBE, AIR CLEANER DRAIN
17224-HM5-930
|
$12.76 | ||
|
Available to order. Add to View Price |
|||
|
#8
SEAL, AIR CLEANER DUCT
17252-HF1-670
|
$11.09 | ||
|
Available to order. Add to View Price |
|||
|
#9
TUBE, AIR CLEANER CONNECTING
17253-HM8-000
|
$29.45 | ||
|
Available to order. Add to View Price |
|||
|
#10
AIR CLEANER
17254-HM8-000
|
$29.40 | ||
|
Available to order. Add to View Price |
|||
|
#12
DUCT, SNORKEL
17259-HM8-B40
|
$54.02 | ||
|
Available to order. Add to View Price |
|||
|
#12
DUCT, SNORKEL
17259-HM8-000
Superseded by 17259-HM8-B40
|
$54.02 | ||
|
Unavailable |
|||
|
#16
CLIP, AIR HOSE (21.5)
18532-634-670
|
$9.54 | ||
|
Available to order. Add to View Price |
|||
|
#17
BAND, CONNECTING TUBE (48)
90648-HM8-A60
|
$7.07 | ||
|
Available to order. Add to View Price |
|||
|
#17
BAND, CONNECTING TUBE (48)
90651-HM8-000
Superseded by 90648-HM8-A60
|
$7.07 | ||
|
Unavailable |
|||
|
#18
BAND, CONNECTING TUBE (64)
90652-HM8-000
Superseded by 90664-HM8-A60
|
$6.45 | ||
|
Available to order. Add to View Price |
|||
|
#18
BAND, CONNECTING TUBE (64)
90664-HM8-A60
|
$6.45 | ||
|
Unavailable |
|||
|
#19
CLIP, SPLASH GUARD
90653-HC4-900
|
$0.65 | ||
|
Available to order. Add to View Price |
|||
|
#20
BAND, CONNECTING TUBE (64)
90653-HM8-000
Superseded by 90664-HM8-A60
|
$6.45 | ||
|
Unavailable |
|||
|
#20
BAND, CONNECTING TUBE (64)
90664-HM8-A60
|
$6.45 | ||
|
Unavailable |
|||
|
#21
SCREW-WASHER (6X12)
93891-06012-08
|
$1.23 | ||
|
Available to order. Add to View Price |
|||
