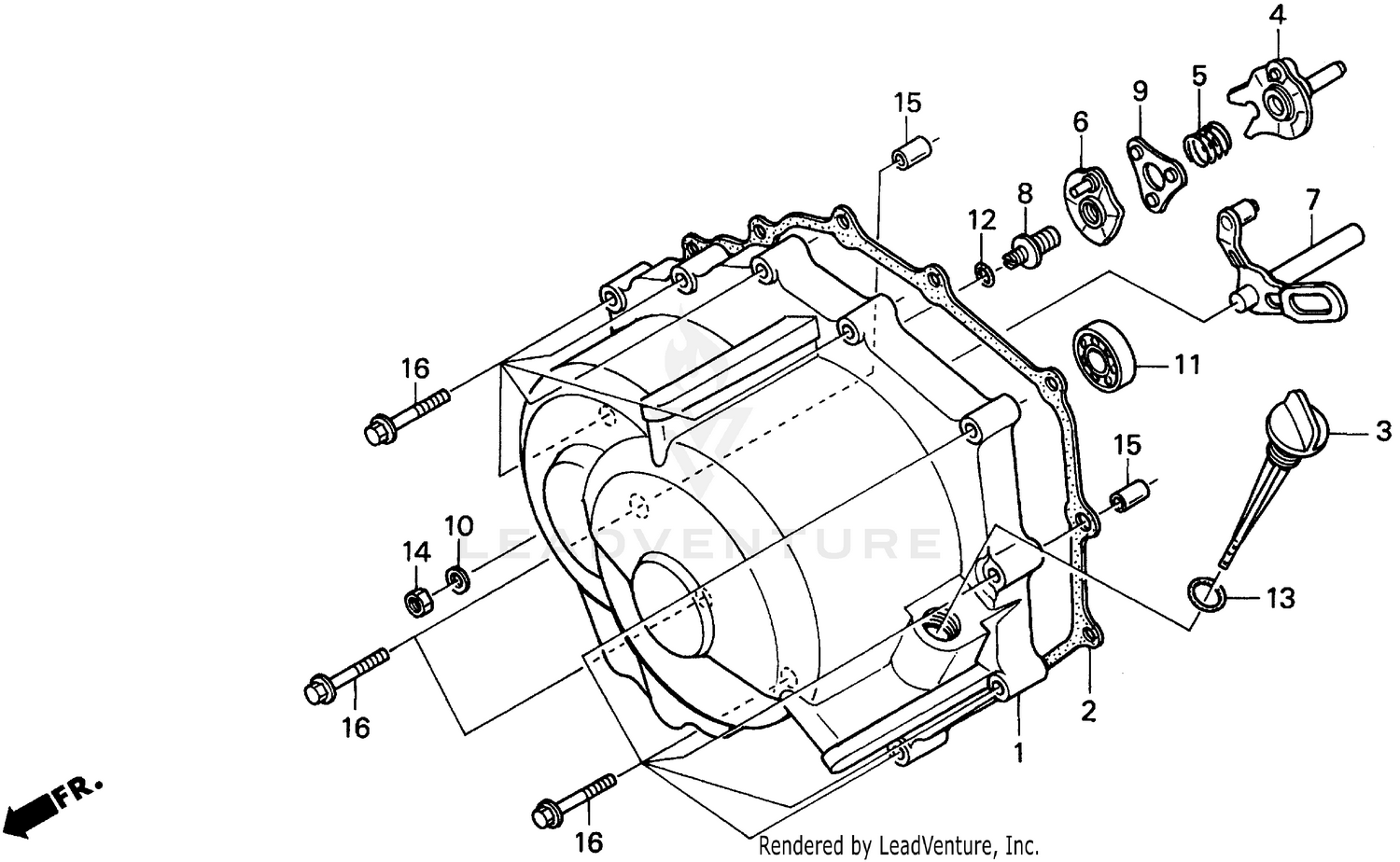

Front Crankcase Cover Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COVER, FR. CRANKCASE
11330-HM8-000
|
$203.85 | ||
|
Available to order. Add to View Price |
|||
|
#2
GASKET, FR. CRANKCASE COVER
11394-HM8-000
|
$30.15 | ||
|
Available to order. Add to View Price |
|||
|
#3
DIPSTICK, OIL
15651-HM8-000
|
$12.46 | ||
|
Available to order. Add to View Price |
|||
|
#4
PLATE, CLUTCH CAM
22820-HB3-020
|
$22.71 | ||
|
Available to order. Add to View Price |
|||
|
#5
SPRING, CAM PLATE SIDE
22825-HB3-003
|
$2.82 | ||
|
Available to order. Add to View Price |
|||
|
#6
PLATE, CLUTCH LIFTER
22830-HB6-000
|
$24.54 | ||
|
Available to order. Add to View Price |
|||
|
#7
SUB-LEVER, CLUTCH LIFTER
22840-HM8-000
|
$38.53 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT, CLUTCH ADJUSTING
22846-HB3-000
|
$7.29 | ||
|
Available to order. Add to View Price |
|||
|
#9
RETAINER, BALL
22860-HB3-000
|
$9.37 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER (8MM)
90485-040-000
|
$1.92 | ||
|
Available to order. Add to View Price |
|||
|
#11
BEARING, RADIAL BALL (15X32X9)
91009-HF1-671
|
$25.97 | ||
|
Available to order. Add to View Price |
|||
|
#12
O-RING (8X1.7) (ARAI)
91306-HB3-003
|
$2.07 | ||
|
Available to order. Add to View Price |
|||
|
#13
O-RING (18X3) (ARAI)
91307-KF0-003
|
$3.19 | ||
|
Available to order. Add to View Price |
|||
|
#14
NUT, HEX. (8MM)
94030-08000
|
$1.07 | ||
|
Available to order. Add to View Price |
|||
|
#15
PIN, DOWEL (8X14)
94301-08140
|
$2.25 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, FLANGE (6X40)
95701-06040-00
|
$1.88 | ||
|
Available to order. Add to View Price |
|||
