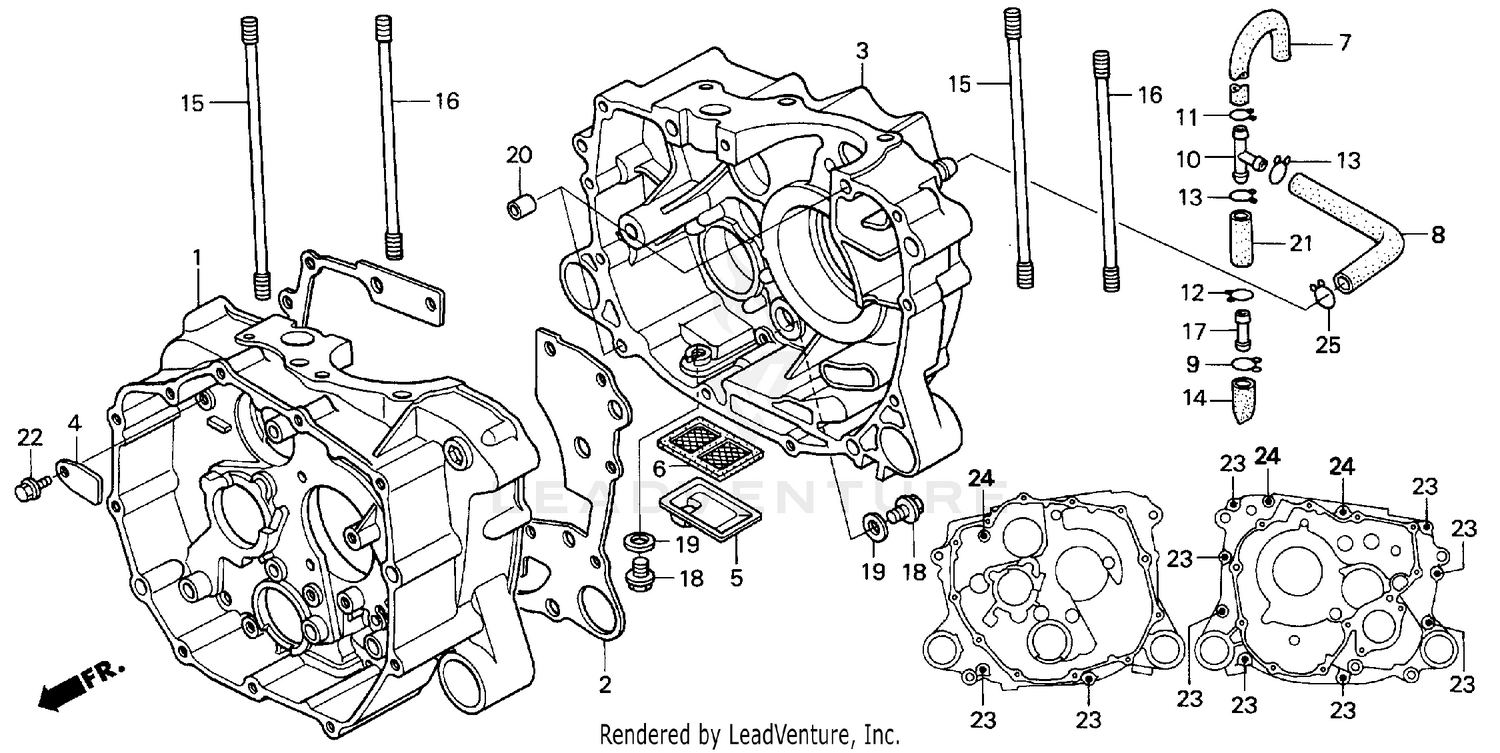

Crankcase Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CRANKCASE, FR.
11100-HM8-000
|
$405.23 | ||
|
Available to order. Add to View Price |
|||
|
#2
GASKET, CRANKCASE
11191-HM8-000
|
$29.84 | ||
|
Available to order. Add to View Price |
|||
|
#3
CRANKCASE, RR.
11200-HM8-000
|
$379.61 | ||
|
Available to order. Add to View Price |
|||
|
#4
PLATE, CAM FIXING
14115-HM8-000
|
$5.17 | ||
|
Available to order. Add to View Price |
|||
|
#5
STRAINER, OIL
15153-HM8-000
|
$6.88 | ||
|
Available to order. Add to View Price |
|||
|
#6
SCREEN, OIL FILTER
15421-ZE9-003
|
$14.74 | ||
|
Available to order. Add to View Price |
|||
|
#7
TUBE, BREATHER (UPPER)
15761-HM8-000
|
$10.29 | ||
|
Available to order. Add to View Price |
|||
|
#8
TUBE, BREATHER (LOWER)
15762-HM8-000
|
$3.98 | ||
|
Available to order. Add to View Price |
|||
|
#9
CLIP, OIL DRAIN TUBE
15771-551-000
|
$10.95 | ||
|
Available to order. Add to View Price |
|||
|
#10
JOINT, BREATHER THREE WAY
15772-376-000
|
$21.30 | ||
|
Available to order. Add to View Price |
|||
|
#11
CLIP, BREATHER TUBE
15772-551-000
|
$2.02 | ||
|
Available to order. Add to View Price |
|||
|
#12
CLIP, BREATHER TUBE
17316-HA0-000
|
$5.19 | ||
|
Available to order. Add to View Price |
|||
|
#13
CLIP, BREATHER TUBE
17316-611-000
|
$10.71 | ||
|
Available to order. Add to View Price |
|||
|
#14
TUBE, DRAIN
17358-HM8-000
|
$5.92 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, STUD (8X193)
90031-HM8-000
|
$6.41 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, STUD (8X117)
90032-HM8-000
|
$5.04 | ||
|
Available to order. Add to View Price |
|||
|
#17
JOINT, TUBE
91463-393-780
|
$1.96 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT, DRAIN PLUG (12MM)
92800-12000
|
$3.89 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER, DRAIN PLUG (12MM)
94109-12000
|
$1.13 | ||
|
Available to order. Add to View Price |
|||
|
#20
PIN, DOWEL (8X14)
94301-08140
|
$2.25 | ||
|
Available to order. Add to View Price |
|||
|
#21
BULK HOSE, VACUUM (12X1000) (12X50)
95005-12001-20M
|
$39.53 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT, FLANGE (6X16)
95701-06016-00
|
$1.64 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT, FLANGE (6X40)
95701-06040-00
|
$1.88 | ||
|
Available to order. Add to View Price |
|||
|
#24
BOLT, FLANGE (6X65)
95701-06065-00
|
$1.66 | ||
|
Available to order. Add to View Price |
|||
|
#25
CLIP, SUB-TANK HOSE
17724-102-700
|
$5.41 | ||
|
Available to order. Add to View Price |
|||
