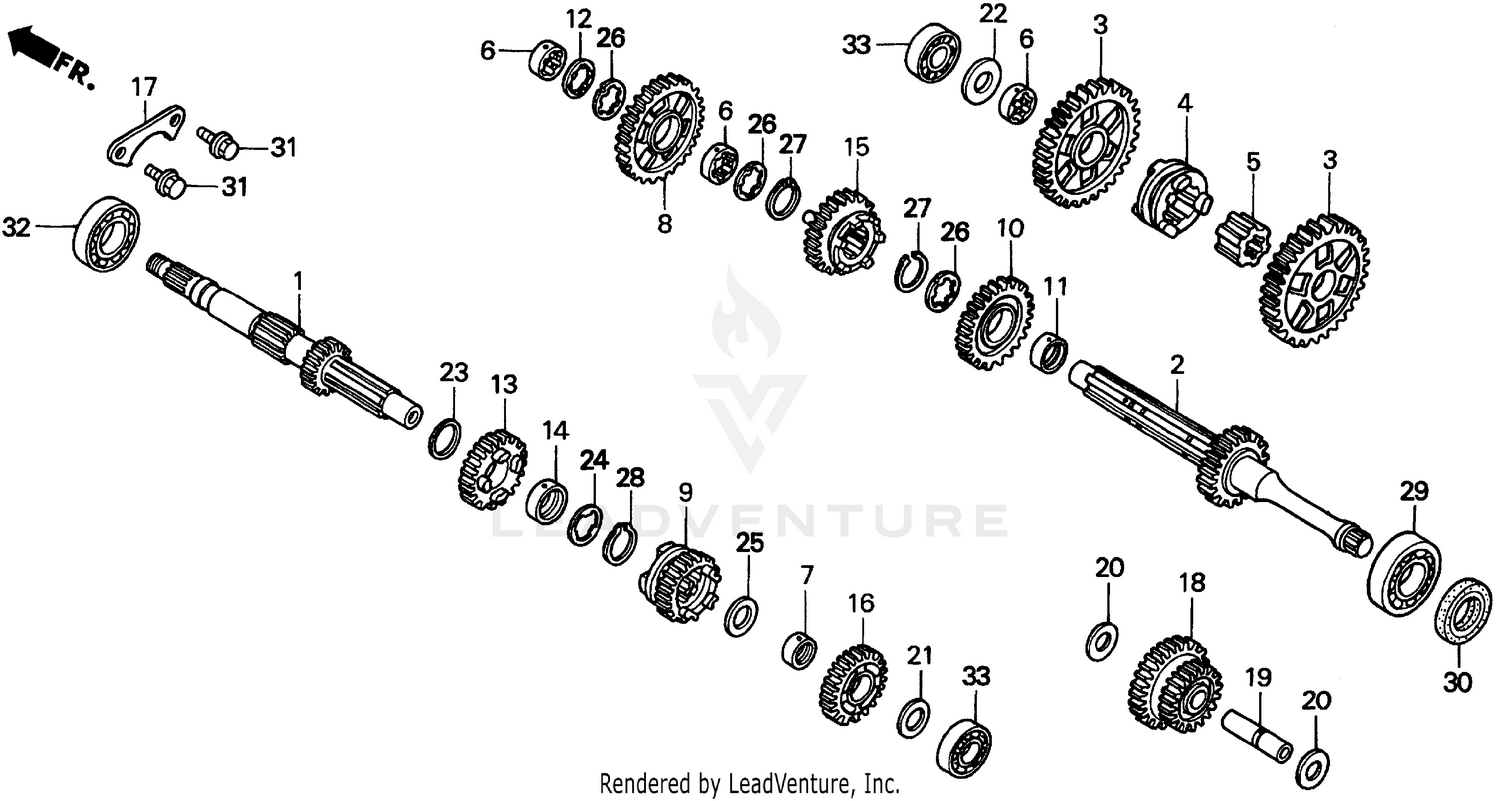

Transmission Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
MAINSHAFT, TRANSMISSION
23211-HB3-000
|
$142.93 | ||
|
Available to order. Add to View Price |
|||
|
#2
COUNTERSHAFT
23221-HM8-000
|
$132.17 | ||
|
Available to order. Add to View Price |
|||
|
#3
GEAR, COUNTERSHAFT LOW & REVERSE (39T)
23411-HM8-000
|
$92.48 | ||
|
Available to order. Add to View Price |
|||
|
#4
SHIFTER, REVERSE COUNTERSHAFT LOW GEAR
23412-HB3-000
|
$53.52 | ||
|
Available to order. Add to View Price |
|||
|
#5
COLLAR, SPLINE
23413-HB3-000
|
$72.07 | ||
|
Available to order. Add to View Price |
|||
|
#6
BUSH, SPLINE (22X8.5)
23414-HB3-000
|
$21.46 | ||
|
Available to order. Add to View Price |
|||
|
#7
BUSH (15MM)
23415-HB3-000
|
$18.36 | ||
|
Available to order. Add to View Price |
|||
|
#8
GEAR, COUNTERSHAFT SECOND (34T)
23431-HB3-000
|
$76.95 | ||
|
Available to order. Add to View Price |
|||
|
#9
GEAR, MAINSHAFT THIRD (19T)
23441-HM8-000
|
$48.48 | ||
|
Available to order. Add to View Price |
|||
|
#10
GEAR, COUNTERSHAFT THIRD (31T)
23451-HM8-000
|
$80.58 | ||
|
Available to order. Add to View Price |
|||
|
#11
BUSH (22MM)
23452-HB3-000
|
$21.46 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER, LOCK
23456-KA3-000
|
$6.42 | ||
|
Available to order. Add to View Price |
|||
|
#13
GEAR, MAINSHAFT FOURTH (22T)
23461-HF1-910
|
$50.60 | ||
|
Available to order. Add to View Price |
|||
|
#14
BUSH (20MM)
23462-HB3-000
|
$21.46 | ||
|
Available to order. Add to View Price |
|||
|
#15
GEAR, COUNTERSHAFT FOURTH (28T)
23471-HM8-000
|
$112.77 | ||
|
Available to order. Add to View Price |
|||
|
#16
GEAR, MAINSHAFT FIFTH (25T)
23481-HB3-010
|
$52.59 | ||
|
Available to order. Add to View Price |
|||
|
#17
PLATE, BEARING SETTING
23521-HM8-000
|
$6.26 | ||
|
Available to order. Add to View Price |
|||
|
#18
GEAR, REVERSE IDLE (20T/33T)
23721-HM8-000
|
$112.67 | ||
|
Available to order. Add to View Price |
|||
|
#19
SHAFT, REVERSE IDLE
23731-HB3-000
|
$26.89 | ||
|
Available to order. Add to View Price |
|||
|
#20
WASHER, THRUST (13X27X1)
90451-HB3-000
|
$3.67 | ||
|
Available to order. Add to View Price |
|||
|
#21
WASHER, THRUST (15MM)
90451-107-000
|
$1.57 | ||
|
Available to order. Add to View Price |
|||
|
#22
WASHER, THRUST (15MM)
90452-HB3-000
|
$8.82 | ||
|
Available to order. Add to View Price |
|||
|
#23
WASHER, THRUST (20MM)
90454-107-000
|
$1.95 | ||
|
Available to order. Add to View Price |
|||
|
#24
WASHER A, SPLINE (20MM)
90455-107-000
|
$2.09 | ||
|
Available to order. Add to View Price |
|||
|
#25
WASHER, THRUST (15X1)
90457-HB3-000
|
$3.30 | ||
|
Available to order. Add to View Price |
|||
|
#26
WASHER, SPLINE (22MM)
90464-KE8-000
|
$4.58 | ||
|
Available to order. Add to View Price |
|||
|
#27
CIRCLIP (22MM)
90601-329-000
|
$2.93 | ||
|
Available to order. Add to View Price |
|||
|
#28
SET-RING (20MM)
90605-200-000
|
$3.19 | ||
|
Available to order. Add to View Price |
|||
|
#29
BEARING, RADIAL BALL (S6205) (KOYO)
91002-HE0-003
|
$19.45 | ||
|
Available to order. Add to View Price |
|||
|
#30
OIL SEAL (25X41.25X6)
91202-898-003
|
$10.11 | ||
|
Available to order. Add to View Price |
|||
|
#31
BOLT, FLANGE (6X14)
95701-06014-00
|
$1.09 | ||
|
Available to order. Add to View Price |
|||
|
#32
BEARING, RADIAL BALL (6204)
96100-62040-00
|
$14.15 | ||
|
Available to order. Add to View Price |
|||
|
#33
BEARING, RADIAL BALL (6202U)
96140-62020
|
$15.77 | ||
|
Available to order. Add to View Price |
|||
|
#33
BEARING, RADIAL BALL (6202U)
96140-62020-00
Superseded by 96140-62020
|
$15.77 | ||
|
Unavailable |
|||
