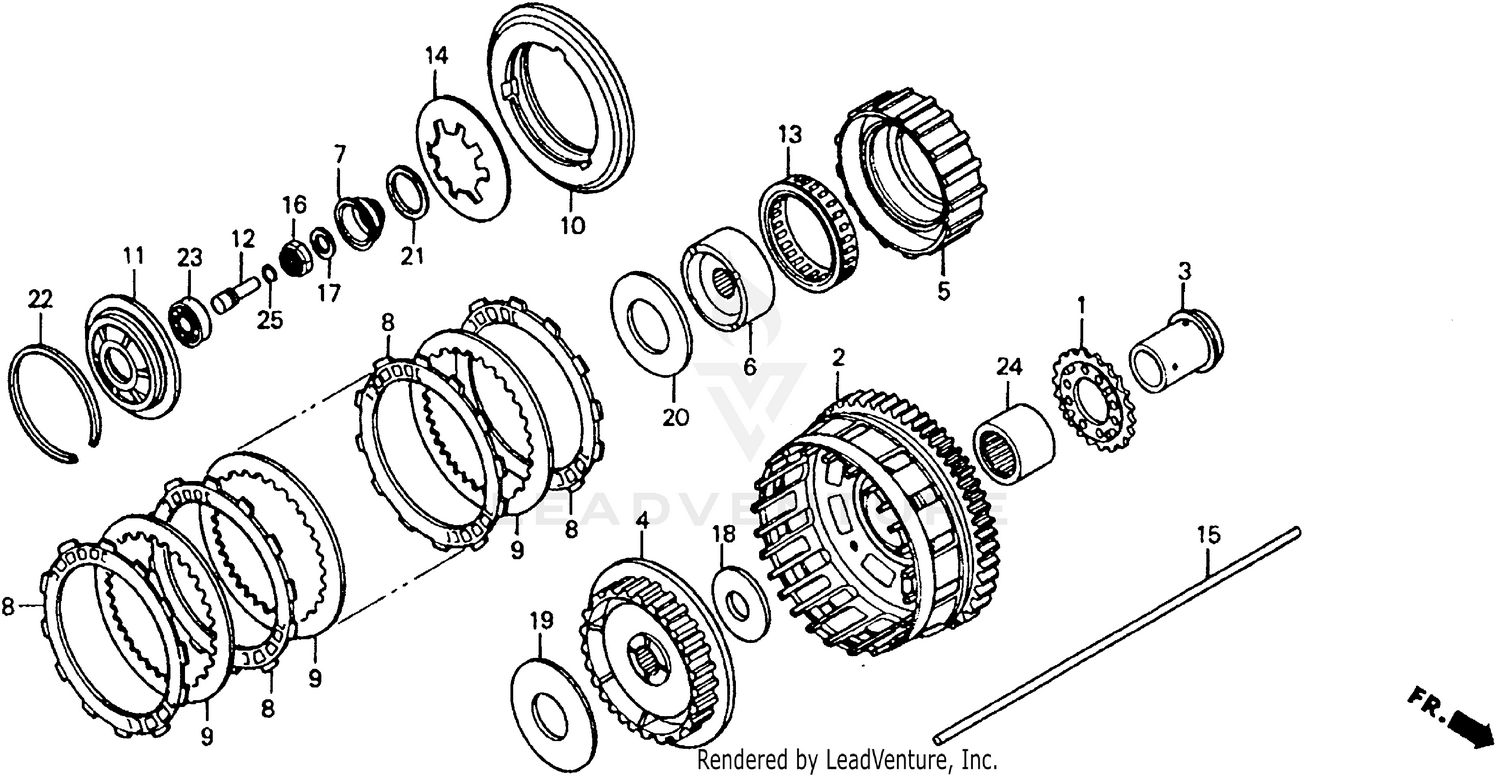

Clutch Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SPROCKET, OIL PUMP DRIVE
15131-ML7-000
|
$43.11 | ||
|
Available to order. Add to View Price |
|||
|
#2
CLUTCH (OUTER) (64T)
22100-MW4-000
|
$657.23 | ||
|
Available to order. Add to View Price |
|||
|
#3
GUIDE, CLUTCH (OUTER)
22116-MT7-000
|
$86.74 | ||
|
Available to order. Add to View Price |
|||
|
#4
CENTER, CLUTCH
22120-MW4-000
|
$150.09 | ||
|
Available to order. Add to View Price |
|||
|
#5
CENTER B, CLUTCH
22131-MW4-000
|
$174.16 | ||
|
Available to order. Add to View Price |
|||
|
#6
INNER, ONE-WAY CLUTCH
22141-MW4-000
|
$64.33 | ||
|
Available to order. Add to View Price |
|||
|
#7
PLATE, SPRING SETTING
22151-MR7-000
|
$29.75 | ||
|
Available to order. Add to View Price |
|||
|
#8
DISK, CLUTCH FRICTION
22201-MT7-000
|
$22.29 | ||
|
Available to order. Add to View Price |
|||
|
#9
PLATE, CLUTCH
22321-MB6-680
Superseded by 22321-MG8-000
|
$17.62 | ||
|
Available to order. Add to View Price |
|||
|
#9
PLATE, CLUTCH
22321-MG8-000
|
$17.62 | ||
|
Unavailable |
|||
|
#10
PLATE, CLUTCH PRESSURE
22351-MW4-000
|
$74.50 | ||
|
Available to order. Add to View Price |
|||
|
#11
PLATE, CLUTCH LIFTER
22352-MT7-000
|
$57.20 | ||
|
Available to order. Add to View Price |
|||
|
#12
PIECE, CLUTCH JOINT
22366-MR8-000
|
$10.09 | ||
|
Available to order. Add to View Price |
|||
|
#13
CLUTCH, ONE-WAY (NIPPON SEIKO)
22425-MJ0-941
|
$85.05 | ||
|
Available to order. Add to View Price |
|||
|
#14
SPRING, CLUTCH
22441-MT7-000
|
$19.33 | ||
|
Available to order. Add to View Price |
|||
|
#15
ROD, CLUTCH LIFTER
22850-MW4-000
|
$26.86 | ||
|
Available to order. Add to View Price |
|||
|
#16
NUT, LOCK (22MM)
90231-MZ7-000
|
$13.18 | ||
|
Available to order. Add to View Price |
|||
|
#17
WASHER, SPRING (22MM)
90432-MB0-010
|
$10.69 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER (60X25X2)
90459-MM4-000
|
$12.25 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER (44X85X1.6)
90461-MJ0-000
|
$19.65 | ||
|
Available to order. Add to View Price |
|||
|
#20
WASHER (44X81X3)
90466-MR7-000
|
$33.82 | ||
|
Available to order. Add to View Price |
|||
|
#21
SHIM, PINION (45.5X51.5X1.5) (D)
90584-752-000
|
$13.08 | ||
|
Available to order. Add to View Price |
|||
|
#22
CIRCLIP (INNER) (95MM)
90601-MB0-771
|
$12.16 | ||
|
Available to order. Add to View Price |
|||
|
#23
BEARING, RADIAL BALL (16003)
91008-KK6-000
Superseded by 91011-KK6-013
|
$17.58 | ||
|
Available to order. Add to View Price |
|||
|
#23
BEARING, RADIAL BALL (16003)
91008-362-000
Superseded by 91011-KK6-013
|
$17.58 | ||
|
Unavailable |
|||
|
#23
BEARING, RADIAL BALL (16003)
91010-HC0-003
Superseded by 91011-KK6-013
|
$17.58 | ||
|
Unavailable |
|||
|
#23
BEARING, RADIAL BALL (16003)
91011-KK6-013
|
$17.58 | ||
|
Unavailable |
|||
|
#24
BEARING, NEEDLE (35X42X30)
91024-MW3-671
|
$111.95 | ||
|
Available to order. Add to View Price |
|||
|
#25
CLIP, PISTON PIN (15MM)
94601-15000
|
$1.09 | ||
|
Available to order. Add to View Price |
|||
