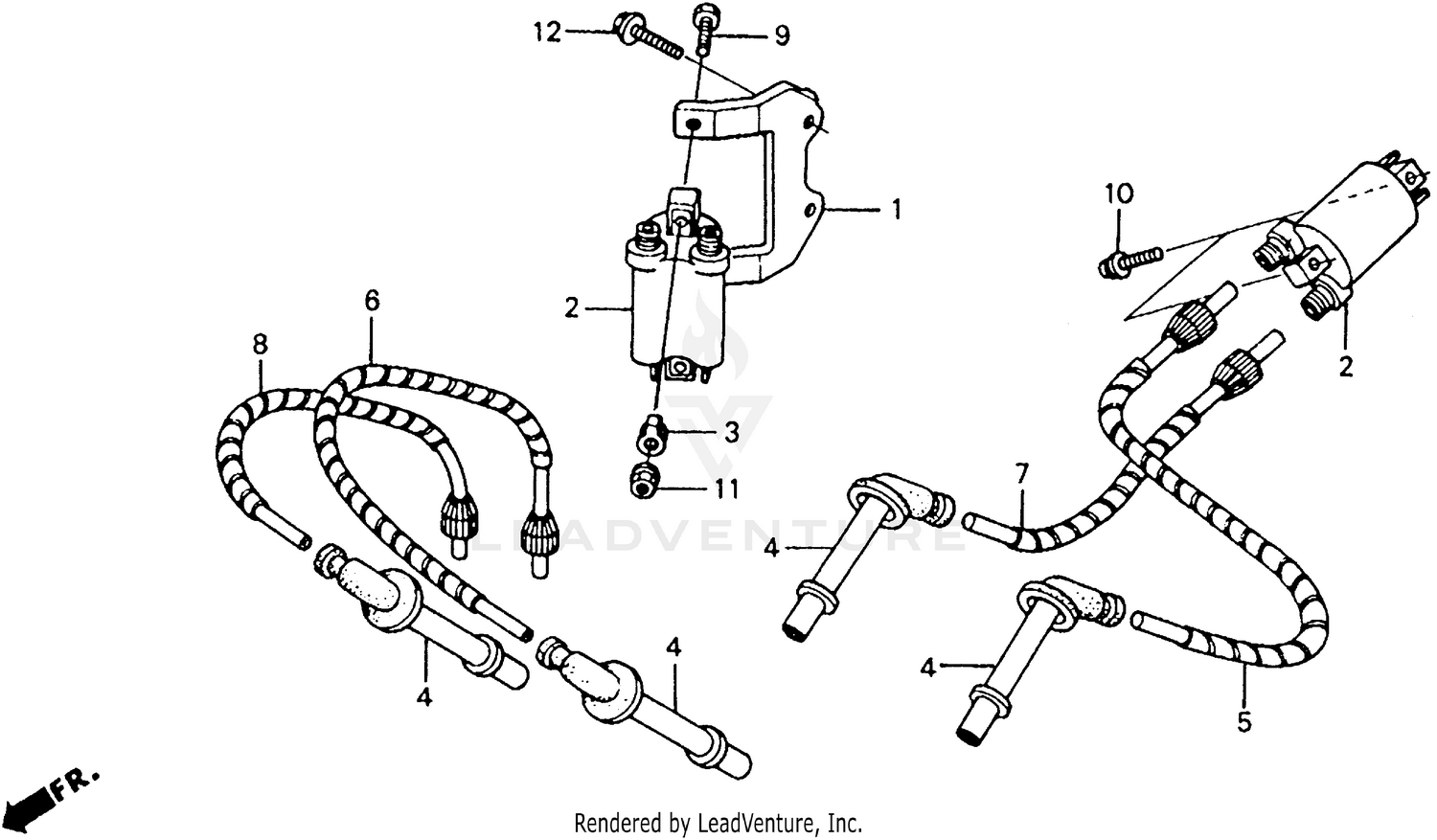

Ignition Coil Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
STAY, R. IGNITION COIL
30507-MW0-000
|
$25.31 | ||
|
Available to order. Add to View Price |
|||
|
#2
COIL, IGNITION
30510-KT7-023
|
$162.33 | ||
|
Available to order. Add to View Price |
|||
|
#3
SPACER, IGNITION COIL
30520-ML7-000
|
$4.27 | ||
|
Available to order. Add to View Price |
|||
|
#4
CAP ASSY., NOISE SUPPRESSOR
30700-MW4-000
|
$51.76 | ||
|
Available to order. Add to View Price |
|||
|
#5
WIRE 1, IGNITION
30731-MW4-000
|
$27.16 | ||
|
Available to order. Add to View Price |
|||
|
#6
WIRE 2, IGNITION
30732-MW4-000
|
$25.28 | ||
|
Available to order. Add to View Price |
|||
|
#7
WIRE 3, IGNITION
30733-MW4-000
|
$25.28 | ||
|
Available to order. Add to View Price |
|||
|
#8
WIRE 4, IGNITION
30734-MW4-000
|
$23.20 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT, HEX. (6X20)
92101-06020-4J
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
SCREW-WASHER (6X25)
93891-06025-00
|
$1.17 | ||
|
Available to order. Add to View Price |
|||
|
#11
NUT, FLANGE (6MM)
94050-06000
|
$0.60 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, FLANGE (6X20)
96001-06020-00
|
$1.35 | ||
|
Available to order. Add to View Price |
|||
