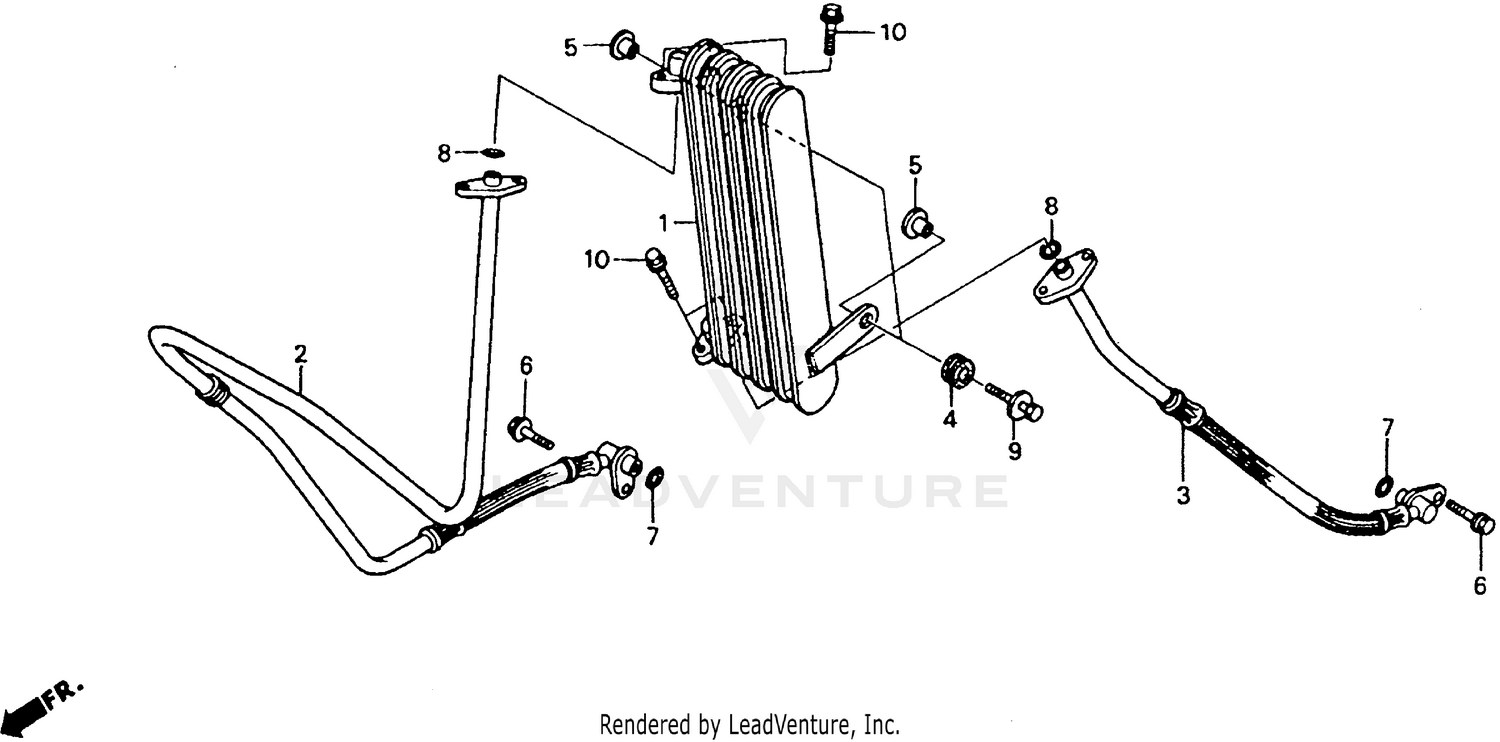

Oil Cooler Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COOLER, OIL
15600-MW4-003
|
$380.31 | ||
|
Available to order. Add to View Price |
|||
|
#2
PIPE, R. OIL HOSE
15650-MW4-000
|
$142.23 | ||
|
Available to order. Add to View Price |
|||
|
#3
PIPE, L. OIL HOSE
15660-MW4-000
|
$61.19 | ||
|
Available to order. Add to View Price |
|||
|
#4
RUBBER, RADIATOR MOUNTING
19051-KA3-830
|
$3.93 | ||
|
Available to order. Add to View Price |
|||
|
#5
COLLAR, RADIATOR MOUNTING
19052-MN8-000
Superseded by 19052-MGH-640
|
$2.67 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT, FLANGE (8X22)
90103-MJ1-000
Superseded by 90103-MJ1-010
|
$2.07 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT, FLANGE (8X22)
90103-MJ1-010
|
$2.07 | ||
|
Unavailable |
|||
|
#7
O-RING (11.1X3.5)
91255-MJ1-000
|
$3.15 | ||
|
Available to order. Add to View Price |
|||
|
#8
O-RING (10X2.6) (ARAI)
91314-ME5-003
|
$4.20 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT-WASHER (6X28)
93404-06028-00
|
$1.20 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, FLANGE (6X20)
96001-06020-00
|
$1.35 | ||
|
Available to order. Add to View Price |
|||
