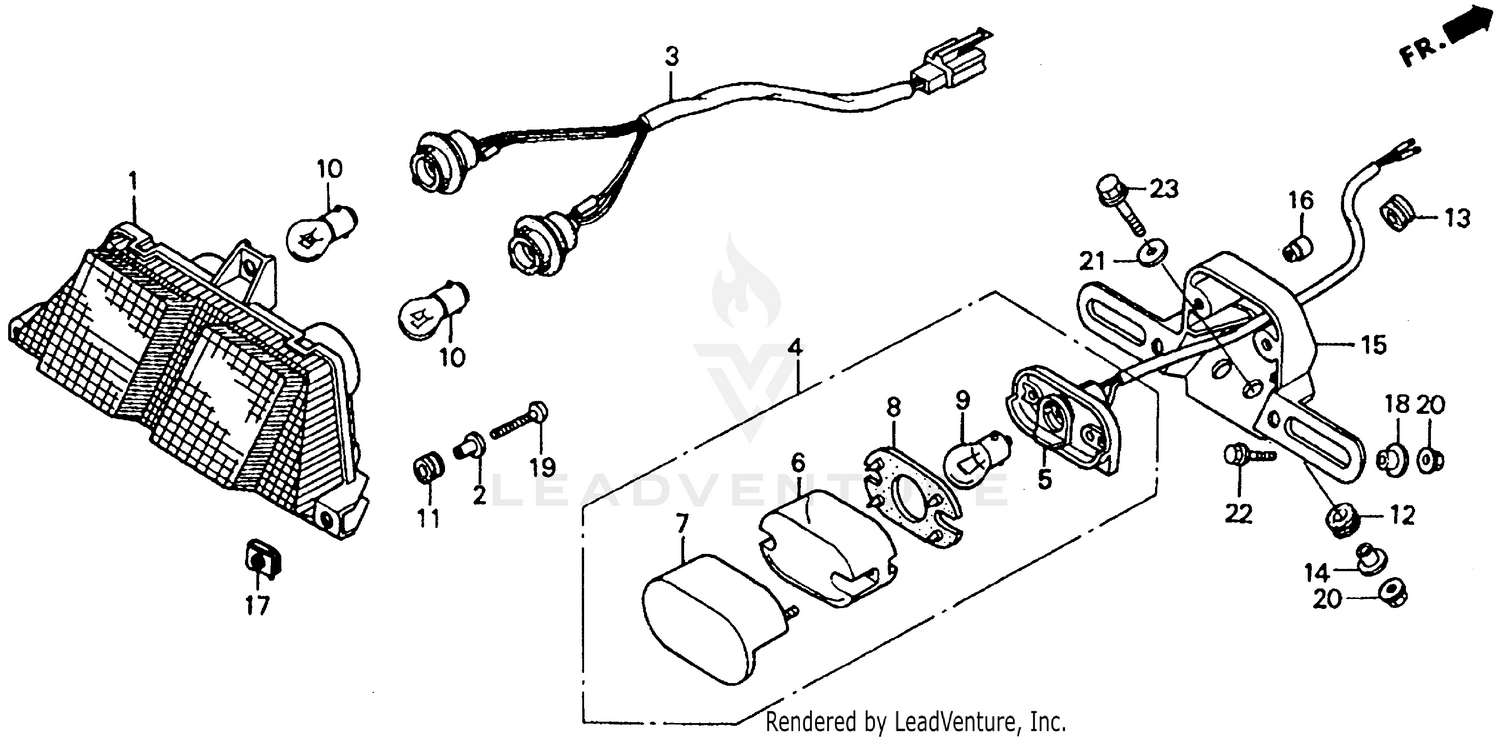

Taillight Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
TAILLIGHT SUB-ASSY.
33705-MR7-721
|
$101.87 | ||
|
Available to order. Add to View Price |
|||
|
#2
COLLAR, TAILLIGHT SETTING
33707-MR8-000
|
$7.36 | ||
|
Available to order. Add to View Price |
|||
|
#3
SOCKET, TAILLIGHT
33710-MW4-601
|
$36.00 | ||
|
Available to order. Add to View Price |
|||
|
#4
LIGHT ASSY., LICENSE
33720-MW4-671
|
$102.43 | ||
|
Available to order. Add to View Price |
|||
|
#5
BASE
33721-MW4-671
|
$24.77 | ||
|
Available to order. Add to View Price |
|||
|
#6
LENS, LICENSE LIGHT
33722-MB1-013
|
$22.47 | ||
|
Available to order. Add to View Price |
|||
|
#7
COVER, LICENSE LIGHT
33727-ME4-671
|
$29.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
GASKET, LENS
33729-MB1-003
|
$7.45 | ||
|
Available to order. Add to View Price |
|||
|
#9
BULB (12V8W)
34616-568-671
Superseded by 34909-505-003
|
$3.25 | ||
|
Unavailable |
|||
|
#9
BULB (12V8W)
34902-500-003
Superseded by 34909-505-003
|
$3.25 | ||
|
Unavailable |
|||
|
#9
BULB (12V8W)
34908-272-000
Superseded by 34909-505-003
|
$3.25 | ||
|
Unavailable |
|||
|
#9
BULB (12V8W4CP) (67) (STANLEY)
34909-505-003
|
$3.25 | ||
|
Unavailable |
|||
|
#9
BULB (12V8W)
34909-505-610
Superseded by 34909-505-003
|
$3.25 | ||
|
Unavailable |
|||
|
#10
BULB, STOP & TAILLIGHT (12V 27/7W)
34906-MG9-771
|
$4.92 | ||
|
Available to order. Add to View Price |
|||
|
#11
RUBBER, SPEEDOMETER SETTING
37244-MM4-000
|
$6.05 | ||
|
Available to order. Add to View Price |
|||
|
#12
RUBBER, FR. FENDER MOUNTING
61103-357-000
|
$3.65 | ||
|
Available to order. Add to View Price |
|||
|
#13
GROMMET, CABLE
80102-323-000
|
$1.88 | ||
|
Available to order. Add to View Price |
|||
|
#14
COLLAR, RR. FENDER
80114-KE2-940
|
$4.62 | ||
|
Available to order. Add to View Price |
|||
|
#15
BRACKET, NUMBER PLATE
84701-ML7-670
|
$44.47 | ||
|
Available to order. Add to View Price |
|||
|
#16
NUT, SPECIAL (4MM)
90302-MB2-000
|
$5.31 | ||
|
Available to order. Add to View Price |
|||
|
#17
NUT, SPRING (5MM)
90320-GC3-000
|
$2.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER (6X20)
90502-VA4-640
|
$3.65 | ||
|
Available to order. Add to View Price |
|||
|
#19
SCREW, PAN (5X25)
93500-05025-0A
|
$0.92 | ||
|
Available to order. Add to View Price |
|||
|
#20
NUT, FLANGE (6MM)
94050-06000
|
$0.60 | ||
|
Available to order. Add to View Price |
|||
|
#21
WASHER, PLAIN (6MM)
94103-06000
|
$0.97 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT, FLANGE (6X16)
95701-06016-00
|
$1.62 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT, FLANGE (6X25)
95701-06025-00
|
$1.77 | ||
|
Available to order. Add to View Price |
|||
