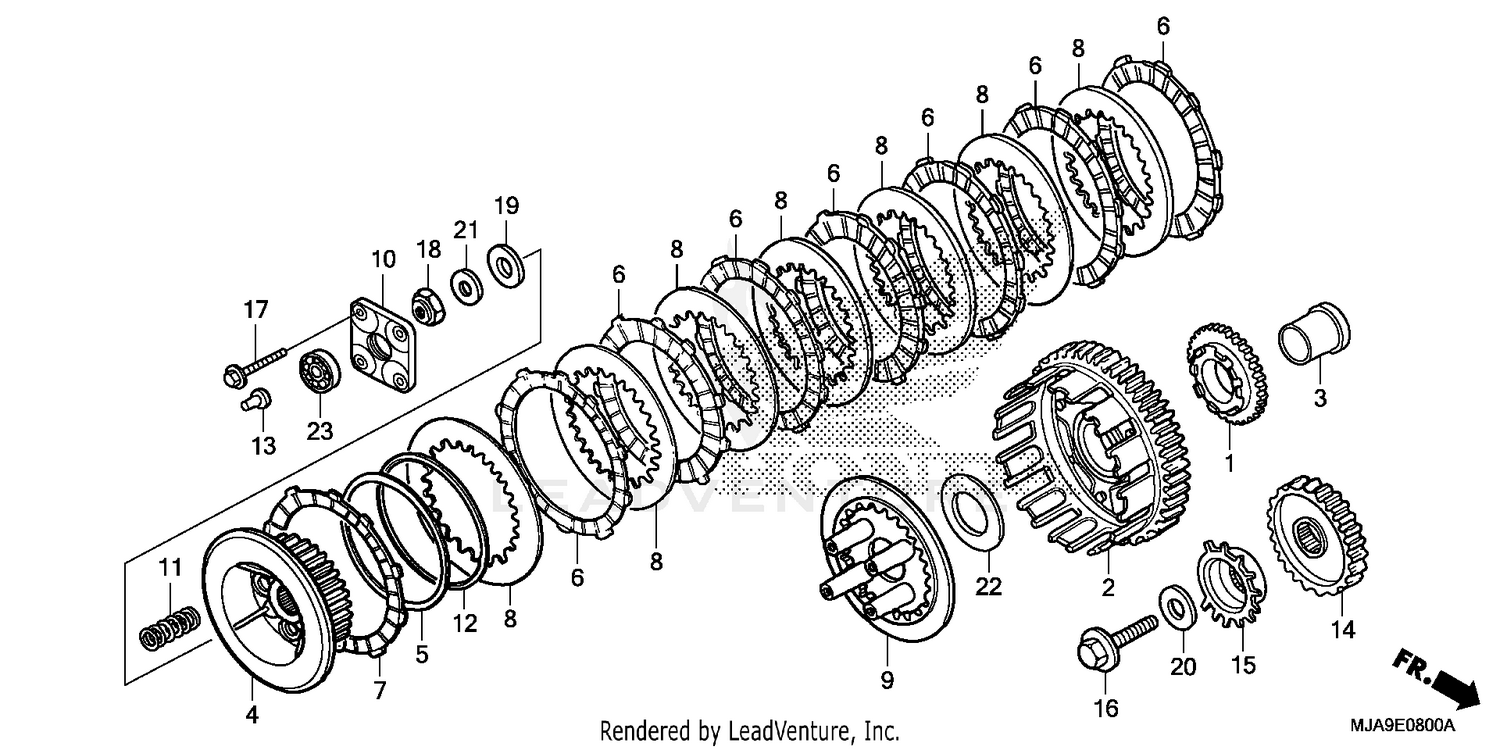

Clutch Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SPROCKET, OIL PUMP DRIVE (31T)
15131-MEW-921
|
$65.02 | ||
|
Available to order. Add to View Price |
|||
|
#2
CLUTCH OUTER (67T)
22100-MBL-610
|
$380.22 | ||
|
Available to order. Add to View Price |
|||
|
#3
COLLAR, PRIMARY DRIVEN
22116-MF5-000
|
$54.33 | ||
|
Available to order. Add to View Price |
|||
|
#4
CENTER, CLUTCH (24T)
22120-MBA-000
|
$101.80 | ||
|
Available to order. Add to View Price |
|||
|
#5
SEAT, JUDDER SPRING
22125-435-000
|
$10.59 | ||
|
Available to order. Add to View Price |
|||
|
#6
DISK, CLUTCH FRICTION
22201-MAV-000
|
$15.11 | ||
|
Available to order. Add to View Price |
|||
|
#7
DISK B, CLUTCH FRICTION
22202-MAE-000
|
$18.57 | ||
|
Available to order. Add to View Price |
|||
|
#8
PLATE, CLUTCH
22321-MN8-000
|
$10.87 | ||
|
Available to order. Add to View Price |
|||
|
#9
PLATE, CLUTCH PRESSURE
22350-MS6-922
|
$69.59 | ||
|
Available to order. Add to View Price |
|||
|
#10
PLATE, CLUTCH LIFTER
22361-MR1-000
|
$24.54 | ||
|
Available to order. Add to View Price |
|||
|
#11
SPRING, CLUTCH
22401-MEG-000
|
$4.89 | ||
|
Available to order. Add to View Price |
|||
|
#12
SPRING, JUDDER
22402-435-000
|
$39.84 | ||
|
Available to order. Add to View Price |
|||
|
#13
ROD, CLUTCH LIFTER
22847-MZ8-H00
|
$6.39 | ||
|
Available to order. Add to View Price |
|||
|
#14
GEAR, PRIMARY DRIVE (38T)
23103-MEG-010
|
$93.32 | ||
|
Available to order. Add to View Price |
|||
|
#15
ROTOR, PULSE
30211-MFE-640
|
$19.19 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, FLANGE (12X30)
90005-MN5-000
|
$9.19 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, SPECIAL FLANGE (6X30)
90007-MR1-000
|
$3.45 | ||
|
Available to order. Add to View Price |
|||
|
#18
NUT, LOCK (18MM)
90236-HA0-000
|
$12.11 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER (18MM)
90401-MZ8-B40
|
$2.77 | ||
|
Available to order. Add to View Price |
|||
|
#20
WASHER (12.5X34X5)
90403-MEW-920
|
$5.11 | ||
|
Available to order. Add to View Price |
|||
|
#21
WASHER, LOCK
90432-428-000
|
$9.10 | ||
|
Available to order. Add to View Price |
|||
|
#22
WASHER, THRUST (22MM)
90452-471-000
|
$5.72 | ||
|
Available to order. Add to View Price |
|||
|
#23
BEARING, RADIAL BALL (6001)
96100-60010-00
|
$19.86 | ||
|
Available to order. Add to View Price |
|||
