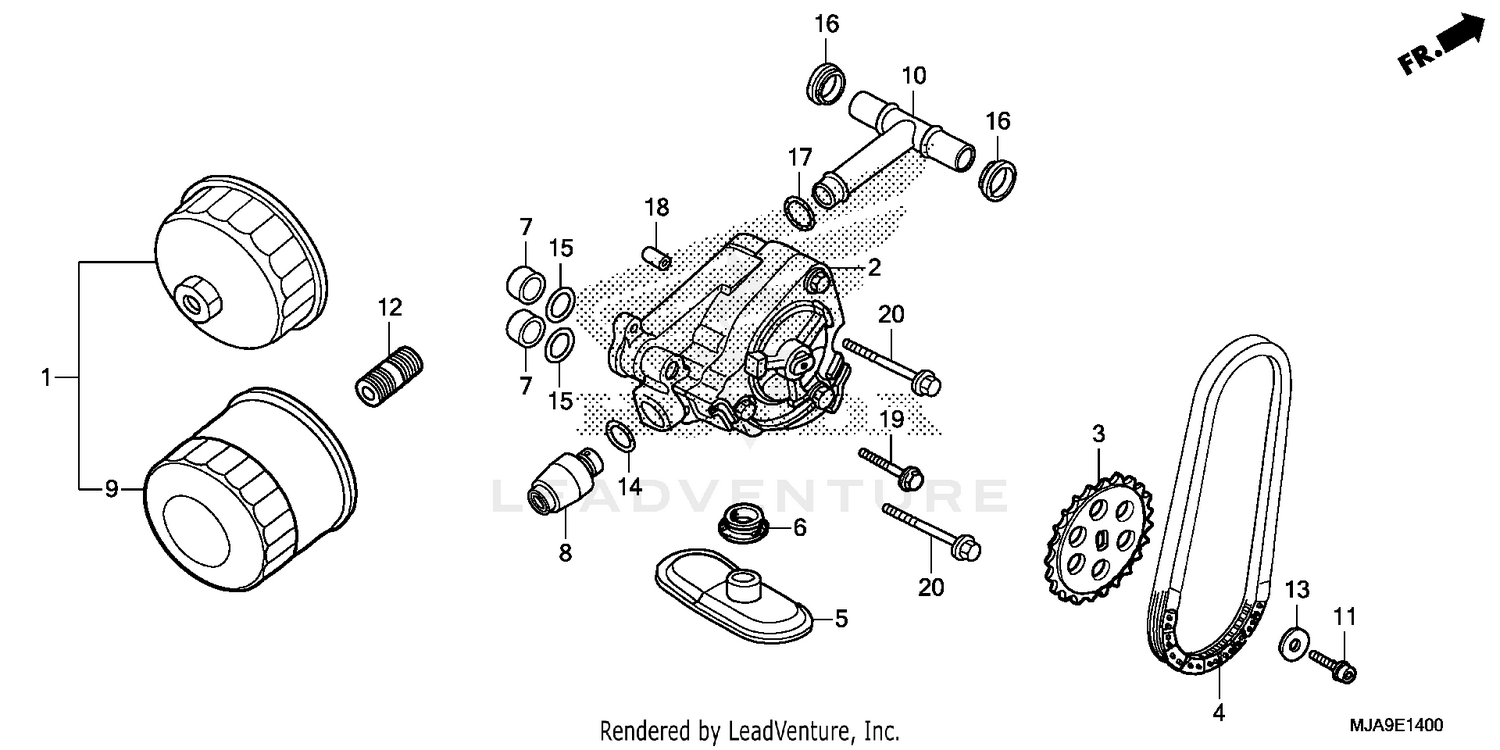

Oil Pump Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FILTER SET, OIL
15010-MCE-H51
Superseded by 15010-MKR-305
|
$23.88 | ||
|
Available to order. Add to View Price |
|||
|
#1
FILTER SET, OIL
15010-MKR-305
|
$23.88 | ||
|
Unavailable |
|||
|
#2
PUMP ASSY., OIL
15100-MFE-A41
|
$160.24 | ||
|
Available to order. Add to View Price |
|||
|
#3
SPROCKET, OIL PUMP DRIVEN (27T)
15134-MEW-920
|
$41.43 | ||
|
Available to order. Add to View Price |
|||
|
#4
CHAIN, OIL PUMP DRIVE (70L) (DAIDO)
15141-MEG-A21
|
$21.35 | ||
|
Available to order. Add to View Price |
|||
|
#5
STRAINER, OIL
15153-MZ6-000
|
$20.50 | ||
|
Available to order. Add to View Price |
|||
|
#6
GASKET, OIL STRAINER
15154-425-000
|
$9.60 | ||
|
Available to order. Add to View Price |
|||
|
#7
COLLAR, O-RING
15155-300-000
|
$4.17 | ||
|
Available to order. Add to View Price |
|||
|
#8
VALVE ASSY., RELIEF
15220-MFE-A41
|
$49.09 | ||
|
Available to order. Add to View Price |
|||
|
#9
FILTER, OIL (WAKO FILTER)
15410-MFJ-D01
Superseded by 15410-MFJ-D02
|
$18.63 | ||
|
Available to order. Add to View Price |
|||
|
#9
FILTER, OIL (WAKO FILTER)
15410-MFJ-D02
|
$18.63 | ||
|
Unavailable |
|||
|
#10
PIPE, OIL
15510-MY1-000
|
$36.91 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, FLANGE SOCKET (6X14)
90009-MZ8-H00
|
$1.72 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOSS, OIL FILTER (Honda Code 1243435)
90019-MB0-000
|
$9.98 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER (6X2.3)
90488-MB0-000
|
$5.26 | ||
|
Available to order. Add to View Price |
|||
|
#14
O-RING (14.7X2.2)
91302-MGS-D30
|
$2.31 | ||
|
Available to order. Add to View Price |
|||
|
#15
O-RING (14.8X2.4) (ARAI)
91303-KF0-003
|
$1.92 | ||
|
Available to order. Add to View Price |
|||
|
#16
OIL SEAL, PIPE
91315-MF5-003
|
$4.50 | ||
|
Available to order. Add to View Price |
|||
|
#17
O-RING (13X2.5)
91319-300-000
|
$6.09 | ||
|
Available to order. Add to View Price |
|||
|
#18
PIN, DOWEL (8X14) (Honda Code 0069310)
94301-08140
|
$2.25 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, FLANGE (6X28)
95701-06028-00
|
$1.81 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT, FLANGE (6X45)
95701-06045-00
Superseded by 95701-06045-07
|
$2.17 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT, FLANGE (6X45) BOLT, FLANGE (6X60)
95701-06045-07
|
$2.17 | ||
|
Unavailable |
|||
