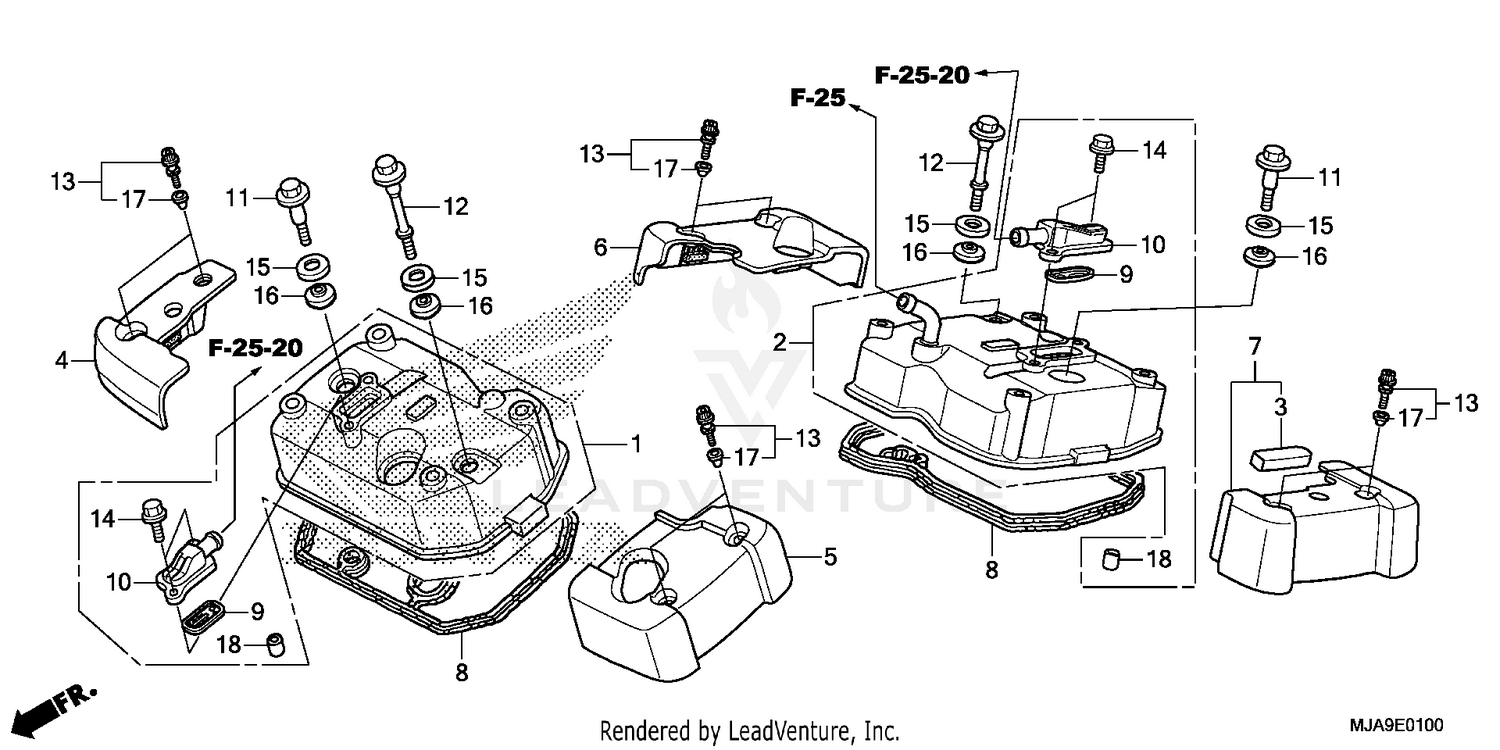

Cylinder Head Cover Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COVER ASSY., FR. CYLINDER HEAD
12310-MFE-640
|
$171.96 | ||
|
Available to order. Add to View Price |
|||
|
#2
COVER ASSY., RR. CYLINDER HEAD
12320-MFE-640
|
$171.96 | ||
|
Available to order. Add to View Price |
|||
|
#3
RUBBER, OVER HEAD COVER
12342-MEG-300
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
COVER, R. FR. OVER HEAD
12360-MJA-L60
|
$80.55 | ||
|
Available to order. Add to View Price |
|||
|
#5
COVER, L. FR. OVER HEAD
12370-MJA-L60
|
$80.55 | ||
|
Available to order. Add to View Price |
|||
|
#6
COVER, R. RR. OVER HEAD
12380-MJA-L60
|
$80.55 | ||
|
Available to order. Add to View Price |
|||
|
#7
COVER, L. RR. OVER HEAD
12390-MJA-L60
|
$77.07 | ||
|
Available to order. Add to View Price |
|||
|
#8
GASKET, HEAD COVER
12391-MEG-000
|
$20.32 | ||
|
Available to order. Add to View Price |
|||
|
#9
VALVE, REED
18601-MEG-901
|
$30.60 | ||
|
Available to order. Add to View Price |
|||
|
#10
COVER, REED VALVE
18612-MFE-640
|
$15.24 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, FLANGE (6X30)
90011-MA6-000
|
$4.67 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, HEAD COVER
90011-MEG-000
|
$6.77 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT ASSY., SPECIAL (6X22) (FRAME NO.)
90020-MBA-D20
|
$5.09 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, FLANGE (5X16)
90102-MEG-000
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER, MOUNTING RUBBER
90541-MB0-000
|
$5.26 | ||
|
Available to order. Add to View Price |
|||
|
#16
RUBBER, MOUNTING
90542-MB0-000
|
$3.78 | ||
|
Available to order. Add to View Price |
|||
|
#17
RUBBER, MOUNTING (FRAME NO.)
90543-MBA-000
|
$3.51 | ||
|
Available to order. Add to View Price |
|||
|
#18
PIN A, DOWEL (14X20)
94301-14200
|
$2.47 | ||
|
Available to order. Add to View Price |
|||
