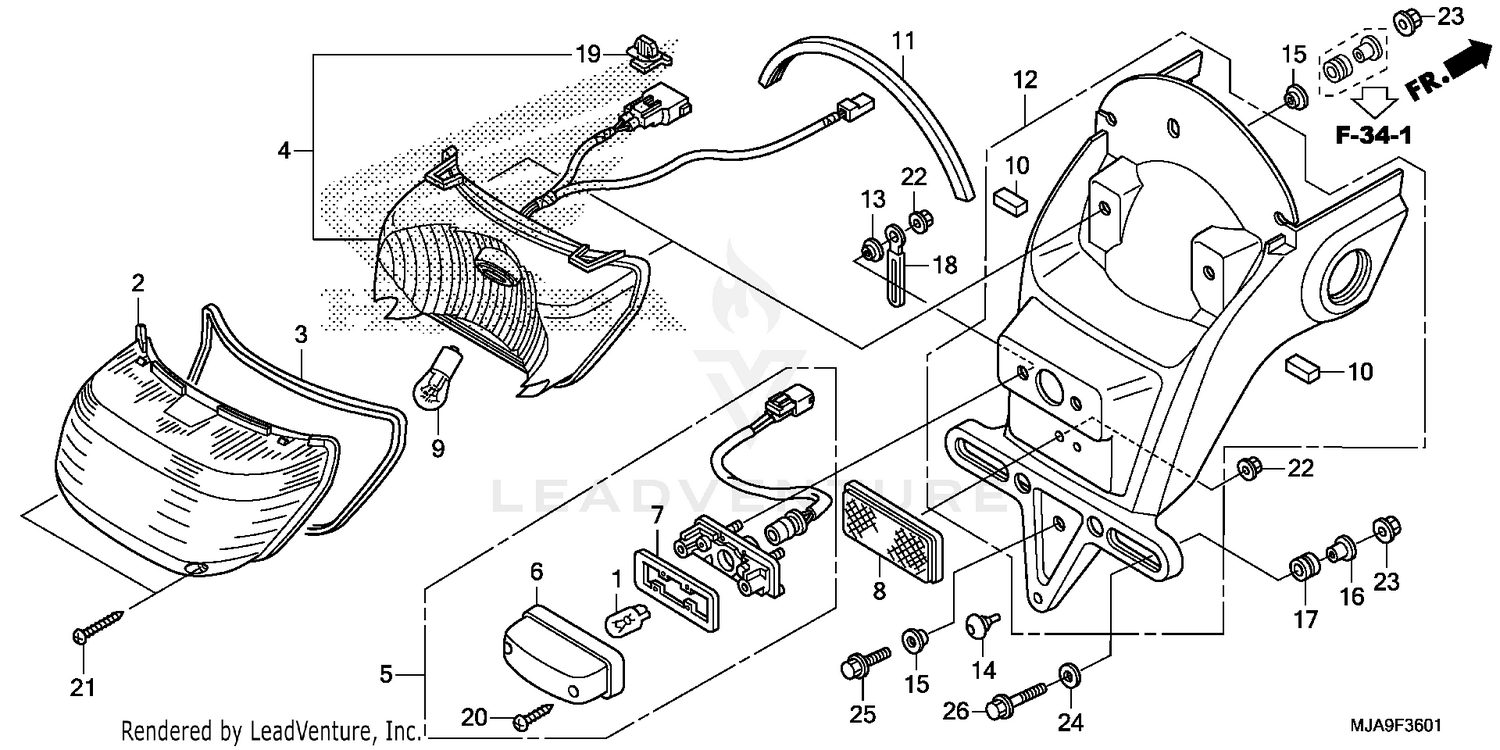

Taillight (2) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BULB (12V 5W) (STANLEY)
33301-SA0-741
|
$4.52 | ||
|
Available to order. Add to View Price |
|||
|
#2
LENS, TAILLIGHT
33702-MFE-305
Superseded by 33702-MFE-671
|
$29.42 | ||
|
Available to order. Add to View Price |
|||
|
#3
GASKET, TAILLIGHT
33703-MFE-671
|
$5.57 | ||
|
Available to order. Add to View Price |
|||
|
#4
BASE, TAILLIGHT
33707-MFE-671
|
$65.57 | ||
|
Available to order. Add to View Price |
|||
|
#5
LIGHT ASSY., LICENSE (12V 5W)
33720-MFE-305
Superseded by 33720-MFE-671
|
$85.52 | ||
|
Available to order. Add to View Price |
|||
|
#5
LIGHT ASSY., LICENSE (12V 5W)
33720-MFE-671
|
$85.52 | ||
|
Unavailable |
|||
|
#6
COVER, LICENSE
33721-GET-671
|
$20.67 | ||
|
Available to order. Add to View Price |
|||
|
#7
GASKET, LENS
33729-MCZ-003
|
$10.35 | ||
|
Available to order. Add to View Price |
|||
|
#8
REFLECTOR, REFLEX (STANLEY)
33741-MS6-921
|
$16.15 | ||
|
Available to order. Add to View Price |
|||
|
#9
BULB, TAIL/STOP LIGHT (12V 21/5W) (STANLEY) (FR.)
34906-447-711
|
$10.87 | ||
|
Available to order. Add to View Price |
|||
|
#10
RUBBER, TAILLIGHT
80103-MFE-670
|
$1.51 | ||
|
Available to order. Add to View Price |
|||
|
#11
MOUL, RR. FENDER COVER
80104-MFE-670
|
$9.26 | ||
|
Available to order. Add to View Price |
|||
|
#12
FENDER ASSY. A, RR.
80105-MFE-670
|
$38.84 | ||
|
Available to order. Add to View Price |
|||
|
#13
COLLAR, RR. FENDER
80114-KG7-000
|
$4.67 | ||
|
Available to order. Add to View Price |
|||
|
#14
PLUG, RR. COWL (NOT AVAILABLE)
80501-415-000
|
$2.90 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER (6X20)
90401-373-770
|
$6.20 | ||
|
Available to order. Add to View Price |
|||
|
#16
COLLAR, RR. FENDER
90502-GG2-000
|
$6.90 | ||
|
Available to order. Add to View Price |
|||
|
#17
RUBBER, CONTROL BOX
90852-898-000
|
$4.83 | ||
|
Available to order. Add to View Price |
|||
|
#18
CLIP (2X60)
91410-679-000
|
$11.67 | ||
|
Available to order. Add to View Price |
|||
|
#19
CLIP, CONNECTOR (BLACK) (Honda Code 7386865)
91565-SEL-003
|
$4.42 | ||
|
Available to order. Add to View Price |
|||
|
#20
SCREW, TAPPING (4X16)
93901-24480
|
$0.81 | ||
|
Available to order. Add to View Price |
|||
|
#21
SCREW, TAPPING (4X30)
93901-347G0
|
$2.42 | ||
|
Available to order. Add to View Price |
|||
|
#22
NUT, FLANGE (5MM)
94050-05000
|
$1.32 | ||
|
Available to order. Add to View Price |
|||
|
#23
NUT, FLANGE (6MM)
94050-06000
|
$0.60 | ||
|
Available to order. Add to View Price |
|||
|
#24
WASHER, PLAIN (6MM)
94103-06000
|
$0.98 | ||
|
Available to order. Add to View Price |
|||
|
#25
BOLT, FLANGE (6X14) (Honda Code 2410884)
95701-06014-00
|
$1.09 | ||
|
Available to order. Add to View Price |
|||
|
#26
BOLT, FLANGE (6X22)
95701-06022-00
|
$1.79 | ||
|
Available to order. Add to View Price |
|||
