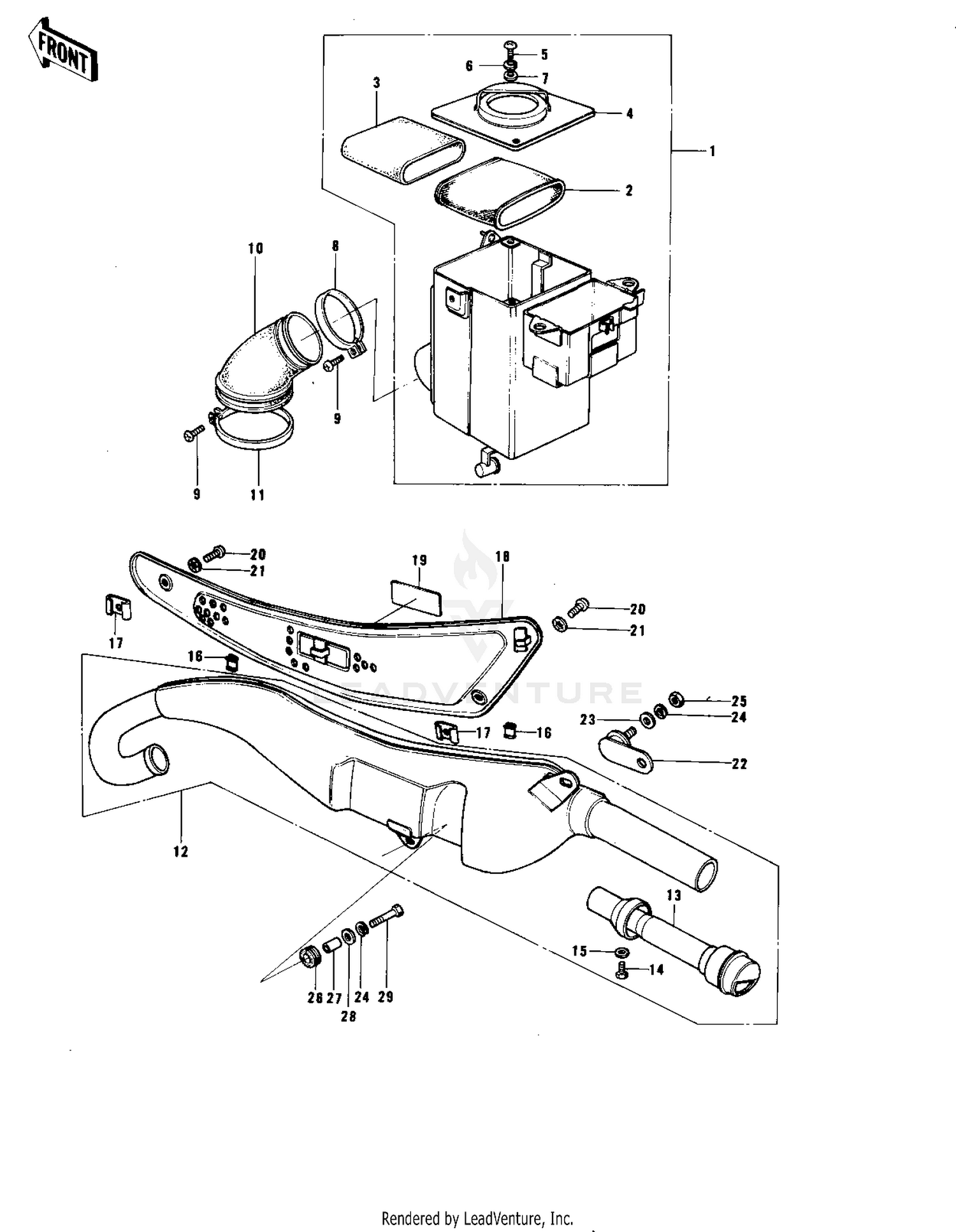

Air Cleaner/muffler Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
AIR CLEANER ASY,BLACK
11010-071-21
|
$110.59 | ||
|
Available to order. Add to View Price |
|||
|
#2
HOLDER,CLENER ELEMENT
11014-011
|
$20.65 | ||
|
Available to order. Add to View Price |
|||
|
#3
ELEMENT,AIR CLNR
11013-1033
|
$50.02 | ||
|
Available to order. Add to View Price |
|||
|
#4
CAP,AIR CLEANER,BLACK
11012-039-21
|
$13.81 | ||
|
Available to order. Add to View Price |
|||
|
#5
SCREW-PAN-CROS,6X12
220B0612
Superseded by 220AA0612
|
$1.16 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER-SPRING,6MM
461F0600
Superseded by 461DA0600
|
$0.69 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER-PLAIN,6MM
411B0600
Superseded by 411AA0600
|
$2.84 | ||
|
Available to order. Add to View Price |
|||
|
#8
CLAMP,AIR CLEANER
92037-129
|
$16.09 | ||
|
Available to order. Add to View Price |
|||
|
#9
SCREW,6X35
220C0635
Superseded by 92009-1357
|
$5.21 | ||
|
Available to order. Add to View Price |
|||
|
#10
CONNECTOR,AIR CLEANE
11026-014
|
$9.53 | ||
|
Unavailable |
|||
|
#11
CLAMP,AIR CLEANER
92037-128
|
$7.51 | ||
|
Available to order. Add to View Price |
|||
|
#12
MUFFLER ASSY,BLACK
18001-150-21
|
$407.74 | ||
|
Available to order. Add to View Price |
|||
|
#13
BAFFLE TUBE
18033-091
|
$82.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT-UPSET
112G0612
Superseded by 112BA0612
|
$1.45 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER,6.2X11X1.5
92022-183
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
|
#16
INSULATOR
18065-007
|
$5.41 | ||
|
Available to order. Add to View Price |
|||
|
#17
INSULATOR,HEAT
18065-010
|
$4.87 | ||
|
Available to order. Add to View Price |
|||
|
#18
COVER,MUFFLER
18064-014
|
$49.65 | ||
|
Available to order. Add to View Price |
|||
|
#19
EMBLEM MUFFLER COVER
56018-225
|
$18.60 | ||
|
Available to order. Add to View Price |
|||
|
#20
SCREW PAN HEAD 6X12
220E0612
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#21
WASHER LOCK 6MM
463H0600
|
$0.80 | ||
|
Available to order. Add to View Price |
|||
|
#22
BRACKET,MUFFLER
18061-054
|
$23.44 | ||
|
Available to order. Add to View Price |
|||
|
#23
WASHER,8.5X20X1.6
92022-1561
|
$4.17 | ||
|
Available to order. Add to View Price |
|||
|
#24
WASHER-SPRING,8MM
461F0800
Superseded by 461DA0800
|
$0.40 | ||
|
Available to order. Add to View Price |
|||
|
#25
NUT-HEX-SMALL,8MM
311B0800
Superseded by 317AA0800
|
$0.67 | ||
|
Available to order. Add to View Price |
|||
|
#26
DAMPER RUBBER-MUFFLER
18063-005
|
$5.04 | ||
|
Unavailable |
|||
|
#27
COLLAR,8.8X12X10.7
92027-102
|
$1.06 | ||
|
Available to order. Add to View Price |
|||
|
#28
WASHER,8X26X2.3
92022-1564
|
$4.17 | ||
|
Available to order. Add to View Price |
|||
|
#29
BOLT-SMALL-USET,8X30
115G0830
Superseded by 115BA0830
|
$6.59 | ||
|
Available to order. Add to View Price |
|||
