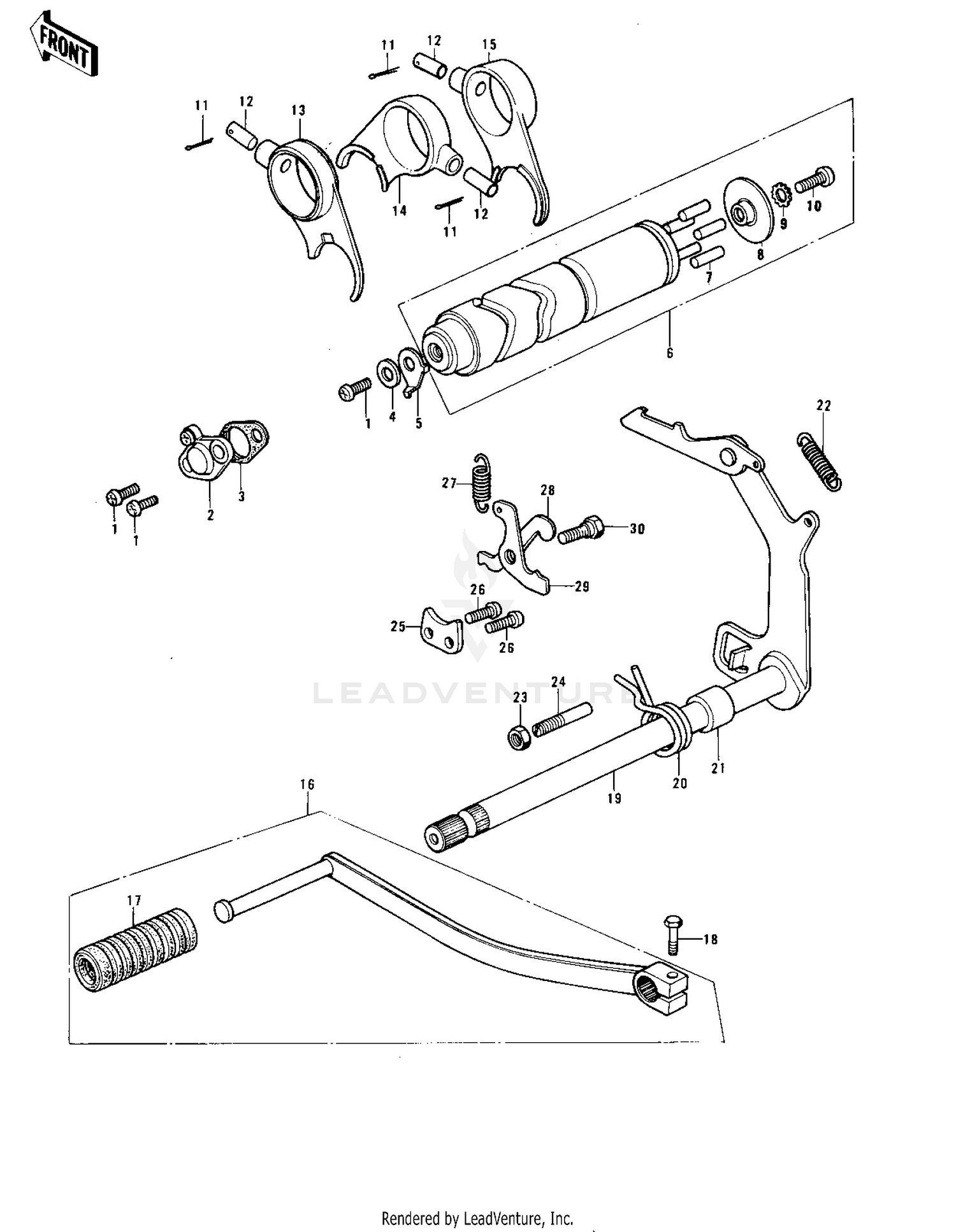

Gear Change Mechanism Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SCREW-PAN-CROS,6X16
220B0616
Superseded by 220AA0616
|
$2.95 | ||
|
Available to order. Add to View Price |
|||
|
#2
SWITCH,NEUTRAL
13151-1001
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
SWITCH,NEUTRAL
13151-1001
|
$13.99 | ||
|
Unavailable |
|||
|
#3
GASKET NEUTRAL SWITCH
13146-002
|
$4.21 | ||
|
Available to order. Add to View Price |
|||
|
#4
WASHER-PLAIN-SMALL
410B0600
Superseded by 410AA0600
|
$1.28 | ||
|
Available to order. Add to View Price |
|||
|
#5
ROTOR,NEUTRAL INDICTR
21007-1003
|
$7.36 | ||
|
Available to order. Add to View Price |
|||
|
#5
ROTOR,NEUTRAL INDICTR
21007-1003
|
$7.36 | ||
|
Unavailable |
|||
|
#6
DRUM ASSY-GEAR CHANGE
13239-002
|
$139.33 | ||
|
Available to order. Add to View Price |
|||
|
#7
PIN,DOWEL,4X15.8
92042-014
|
$0.43 | ||
|
Available to order. Add to View Price |
|||
|
#8
PLATE-CHANGE DRUM PIN
13142-009
|
$4.24 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER LOCK 6MM
464H0600
|
$0.67 | ||
|
Available to order. Add to View Price |
|||
|
#10
SCREW-PAN-CROS,6X14
220B0614
Superseded by 220AA0614
|
$1.44 | ||
|
Available to order. Add to View Price |
|||
|
#11
PIN-COTTER,3.0X20
550D3020
Superseded by 550AA3020
|
$1.73 | ||
|
Available to order. Add to View Price |
|||
|
#12
PIN SELECT FORK GUIDE
92043-005
|
$5.23 | ||
|
Available to order. Add to View Price |
|||
|
#13
FORK-SELECTOR
13140-030
|
$88.87 | ||
|
Available to order. Add to View Price |
|||
|
#14
FORK-SELECTOR,TOP
13140-049
|
$57.69 | ||
|
Available to order. Add to View Price |
|||
|
#15
FORK-SELECTOR,LOW
13140-050
|
$53.89 | ||
|
Available to order. Add to View Price |
|||
|
#16
PEDAL,GEAR CHANGE
13156-064
|
$99.23 | ||
|
Available to order. Add to View Price |
|||
|
#17
DAMPER,CHANGE PEDAL
13157-004
Superseded by 92161-1532
|
$6.04 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT-UPSET
112G0620
Superseded by 112BA0620
|
$2.22 | ||
|
Available to order. Add to View Price |
|||
|
#19
LEVER ASSY GEAR CHNG
13161-019
|
$67.61 | ||
|
Available to order. Add to View Price |
|||
|
#20
SPRING,TENSION
92081-1129
|
$9.10 | ||
|
Available to order. Add to View Price |
|||
|
#20
SPRING,TENSION
92081-1129
|
$9.10 | ||
|
Unavailable |
|||
|
#21
COLLAR,12X18X11.5
92027-121
Superseded by 92152-0582
|
$8.91 | ||
|
Available to order. Add to View Price |
|||
|
#22
SPRING,CHANGE LEVER
92144-1720
|
$4.59 | ||
|
Available to order. Add to View Price |
|||
|
#23
NUT-HEX-SMALL,8MM
312B0800
Superseded by 318AA0800
|
$0.58 | ||
|
Available to order. Add to View Price |
|||
|
#24
BOLT,RETURN SPRING
92001-1401
Superseded by 92001-1455
|
$4.54 | ||
|
Available to order. Add to View Price |
|||
|
#25
PLATE CHNG DRUM PSTN
13169-002
|
$5.80 | ||
|
Available to order. Add to View Price |
|||
|
#26
SCREW-PAN-CROS,6X14
220B0614
Superseded by 220AA0614
|
$1.44 | ||
|
Unavailable |
|||
|
#27
SPRING-COIL
92081-091
|
$7.66 | ||
|
Available to order. Add to View Price |
|||
|
#28
LEVER-CHANGE DRUM,B
13168-017
|
$6.28 | ||
|
Available to order. Add to View Price |
|||
|
#29
LEVER-GEAR CHNG DRUM
13168-021
|
$3.05 | ||
|
Available to order. Add to View Price |
|||
|
#30
SCREW-PAN HEAD
92011-023
|
$3.94 | ||
|
Available to order. Add to View Price |
|||
