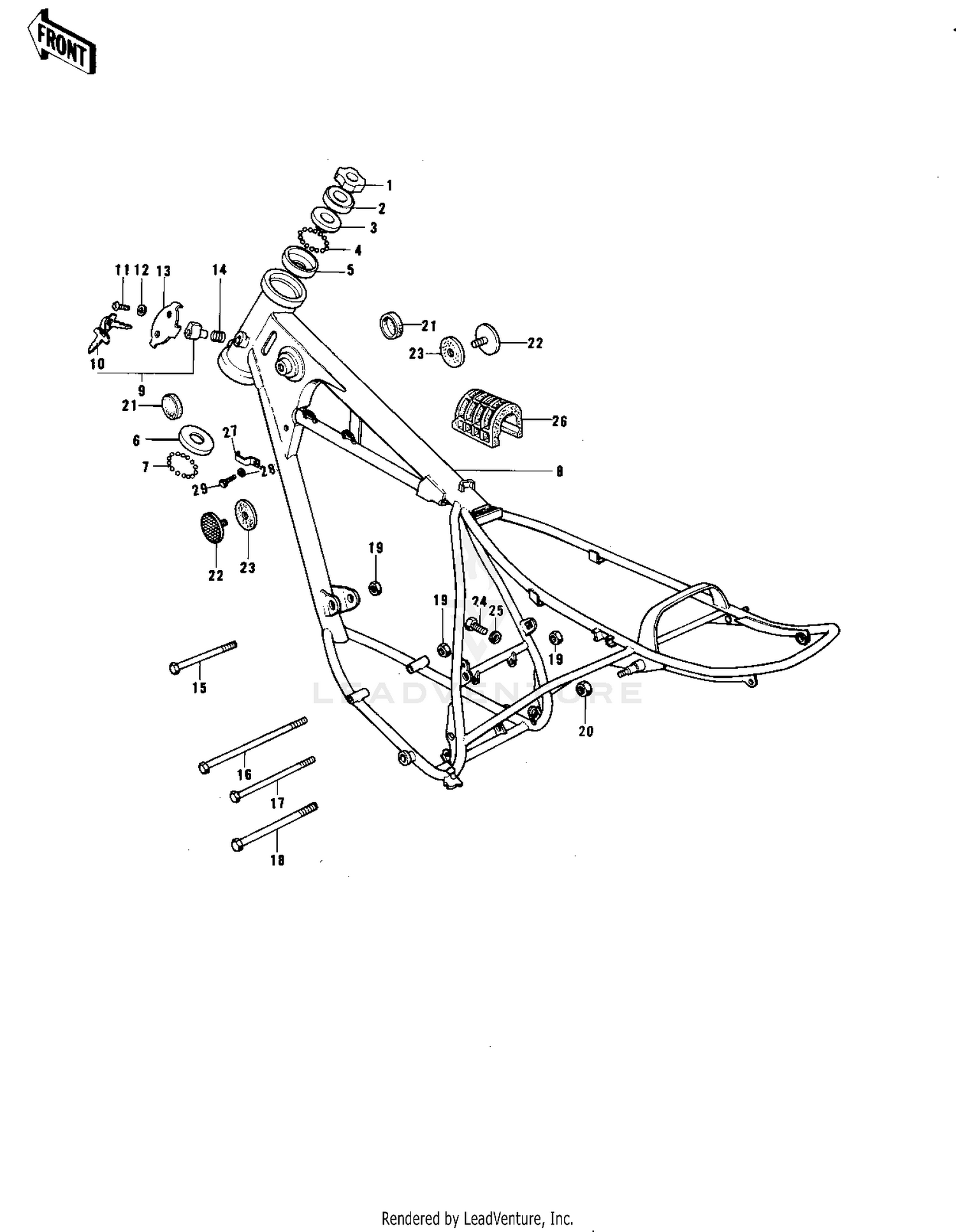

Frame/frame Fittings Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
NUT,STEERING STEM
92090-022
|
$20.84 | ||
|
Available to order. Add to View Price |
|||
|
#2
CAP,STEERING STEM
46098-012
|
$7.88 | ||
|
Available to order. Add to View Price |
|||
|
#3
RACE,STEERING STEM BEARING
92047-014
Superseded by 92048-0035
|
$12.27 | ||
|
Available to order. Add to View Price |
|||
|
#4
BALL-STEEL,3/16
600A0600
|
$1.04 | ||
|
Available to order. Add to View Price |
|||
|
#5
RACE,STEERING STEM BEARING
92048-009
Superseded by 92048-0038
|
$13.60 | ||
|
Available to order. Add to View Price |
|||
|
#6
RACE STEERING BEARING
92048-005
|
$11.93 | ||
|
Available to order. Add to View Price |
|||
|
#7
BALL-STEEL,1/4
600A0800
|
$0.61 | ||
|
Available to order. Add to View Price |
|||
|
#8
FRAME
32002-1080
|
$550.37 | ||
|
Available to order. Add to View Price |
|||
|
#9
LOCK ASSY,STEERING
27016-042
|
$43.91 | ||
|
Available to order. Add to View Price |
|||
|
#10
KEY SET #431
27008-054-31
|
$21.15 | ||
|
Available to order. Add to View Price |
|||
|
#10
KEY SET #432
27008-054-32
|
$15.26 | ||
|
Available to order. Add to View Price |
|||
|
#10
KEY SET #433
27008-054-33
|
$15.05 | ||
|
Available to order. Add to View Price |
|||
|
#10
KEY SET # 434
27008-054-34
|
$21.11 | ||
|
Available to order. Add to View Price |
|||
|
#10
KEY SET #435
27008-054-35
|
$21.11 | ||
|
Available to order. Add to View Price |
|||
|
#10
KEY SET #436
27008-054-36
|
$21.11 | ||
|
Available to order. Add to View Price |
|||
|
#10
KEY SET #437
27008-054-37
|
$15.26 | ||
|
Available to order. Add to View Price |
|||
|
#10
KEY SET #438
27008-054-38
|
$21.15 | ||
|
Available to order. Add to View Price |
|||
|
#10
KEY SET #439
27008-054-39
|
$15.26 | ||
|
Available to order. Add to View Price |
|||
|
#10
KEY SET #440
27008-054-40
|
$15.05 | ||
|
Available to order. Add to View Price |
|||
|
#11
SCREW,3.51MM
92008-007
|
$3.98 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER,WAVE
92097-003
|
$4.36 | ||
|
Available to order. Add to View Price |
|||
|
#13
CAP,STEERING LOCK
11012-1134
|
$6.65 | ||
|
Available to order. Add to View Price |
|||
|
#13
CAP,STEERING LOCK
11012-1134
|
$6.65 | ||
|
Unavailable |
|||
|
#14
SPRING-STEERING LOCK
27032-001
|
$5.08 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT,FLANGED,10X70
92001-1618
|
$10.01 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT FLANGED 10X220
92002-1197
|
$23.18 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT,HEX HEAD,10X120
92001-1247
|
$8.18 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT,HEX HEAD,12X115
113B12115
|
$3.91 | ||
|
Available to order. Add to View Price |
|||
|
#19
NUT,LOCK,10MM
92019-021
Superseded by 92210-1184
|
$5.91 | ||
|
Available to order. Add to View Price |
|||
|
#20
NUT,LOCK,12MM
92019-009
Superseded by 92210-1373
|
$7.04 | ||
|
Available to order. Add to View Price |
|||
|
#21
DAMPER,FUEL TANK
92075-101
|
$6.02 | ||
|
Available to order. Add to View Price |
|||
|
#22
REFLECTOR,REFLEX,REAR
28012-009
|
$25.23 | ||
|
Available to order. Add to View Price |
|||
|
#23
DAMPER RUBBER,REFLECT
92094-011
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#24
BOLT-UPSET
112B0622
Superseded by 112BA0622
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#24
BOLT-HEX HEAD,6X32
110B0632
Superseded by 110N0632
|
$6.61 | ||
|
Available to order. Add to View Price |
|||
|
#25
NUT-HEX,6MM
311B0600
Superseded by 311AA0600
|
$0.93 | ||
|
Available to order. Add to View Price |
|||
|
#26
DAMPER RUBBER
92075-284
|
$19.15 | ||
|
Available to order. Add to View Price |
|||
|
#27
CLAMP,WIRE HARNESS
92037-150
|
$6.46 | ||
|
Available to order. Add to View Price |
|||
|
#28
WASHER-SPRING,6MM
461F0600
Superseded by 461DA0600
|
$0.69 | ||
|
Available to order. Add to View Price |
|||
|
#29
BOLT-UPSET
112B0614
Superseded by 112AA0614
|
$0.48 | ||
|
Available to order. Add to View Price |
|||
