1978 Kawasaki KE175 Front Fork OEM Parts

Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Other
+
Seat
+
Suspension
+
< Back to Assembly Types

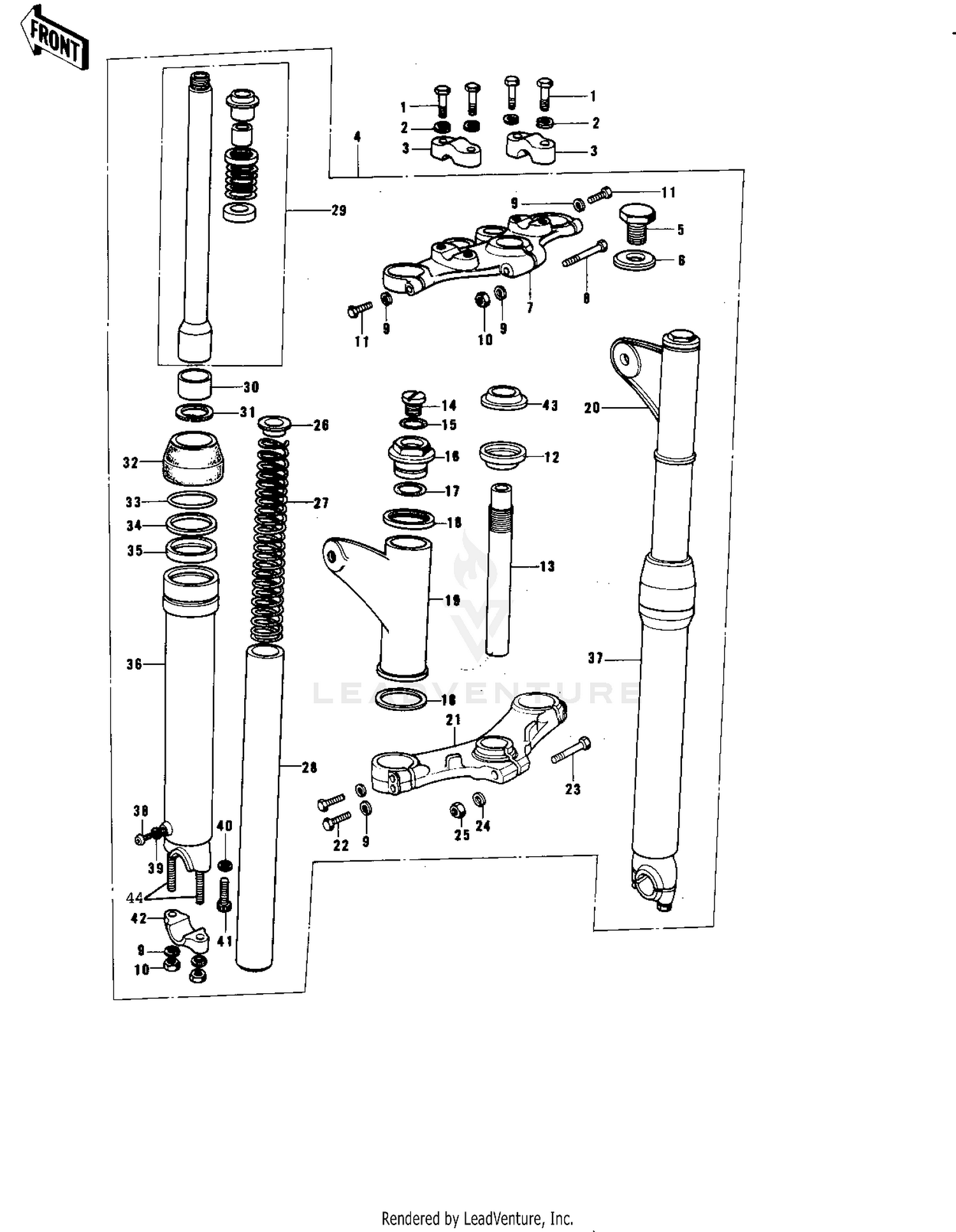

Front Fork Diagram

Item MSRP Qty
#1 BOLT 8X38
92001-1405
 $15.91
Available to order.
Add to View Price
#2 WASHER-SPRING,8MM
461F0800
Superseded by 461DA0800
 $0.40
Available to order.
Add to View Price
#3 HOLDER,HANDLEBAR
46012-014
 $24.09
Available to order.
Add to View Price
#4 FORK-FRONT
44001-171
 $663.41
Available to order.
Add to View Price
#5 BOLT STRNG STEM HEAD
44041-007
 $15.47
Available to order.
Add to View Price
#6 WASHER STRNG STEM HD
44043-016
 $10.60
Available to order.
Add to View Price
#7 HEAD,STEERING STEM
44039-068
 $115.80
Available to order.
Add to View Price
#8 BOLT,FORK TOP
44041-065
 $26.35
Available to order.
Add to View Price
#9 WASHER-SPRING,8MM
461F0800
Superseded by 461DA0800
 $0.40
Unavailable
#10 NUT-HEX-SMALL,8MM
311B0800
Superseded by 317AA0800
 $0.67
Available to order.
Add to View Price
#11 BOLT-STEERING STEM HD
44041-044
 $8.96
Available to order.
Add to View Price
#12 DUST SHIELD-STRNG STM
44010-020
 $3.49
Available to order.
Add to View Price
#13 SHAFT,STEERING STEM
44052-011
 $73.06
Available to order.
Add to View Price
#14 SCREW,TOP BOLT
44041-082
 $4.52
Available to order.
Add to View Price
#15 O RING
44046-024
 $1.51
Available to order.
Add to View Price
#16 BOLT,FORK TOP
44032-013
 $20.52
Available to order.
Add to View Price
#17 'O' RING FORK FIT BLT
44046-013
 $5.58
Available to order.
Add to View Price
#18 GASKET,FORK COVER
44045-055
 $4.93
Available to order.
Add to View Price
#19 COVER,L.H FORK
44033-075
 $58.94
Available to order.
Add to View Price
#20 COVER,R.H FORK
44034-075
 $58.94
Available to order.
Add to View Price
#21 STEM,STEERING
44038-010
 $264.42
Available to order.
Add to View Price
#22 BOLT HEX HEAD 8X35
110N0835
 $3.00
Available to order.
Add to View Price
#23 BOLT-STEERING STEM HD
44041-042
 $5.00
Available to order.
Add to View Price
#24 WASHER-SPRING,10MM
461F1000
Superseded by 461DA1000
 $0.67
Available to order.
Add to View Price
#25 NUT (10MM)
311B1000
 $0.54
Available to order.
Add to View Price
#26 GUIDE,FORK SPRING
44028-038
 $5.56
Available to order.
Add to View Price
#27 SPRING,FORK
44026-069
 $28.41
Available to order.
Add to View Price
#28 TUBE,FORK INNER
44013-053
 $117.47
Available to order.
Add to View Price
#29 CYLINDER-FORK
44022-036
 $57.58
Available to order.
Add to View Price
#30 PISTON,FORK
44018-010
 $8.61
Available to order.
Add to View Price
#31 CIRCLIP,26MM
481J2600
 $1.23
Available to order.
Add to View Price
#32 DUST SHIELD
44010-033
 $23.66
Available to order.
Add to View Price
#33 CIRCLIP,FORK OUT TUB
44044-022
 $2.53
Available to order.
Add to View Price
#34 WASHER
44043-059
 $2.37
Available to order.
Add to View Price
#35 OIL SEAL
44009-025
 $23.66
Available to order.
Add to View Price
#36 TUBE,LH,FORK OUTER
44005-062
 $180.10
Available to order.
Add to View Price
#37 TUBE,RH,FORK OUTER
44006-060
 $157.16
Available to order.
Add to View Price
#38 SCREW-PAN-CROS,4X8
220B0408
Superseded by 220AA0408
 $0.67
Available to order.
Add to View Price
#39 GASKET,FORK DRAIN PLUG
44045-002
 $5.02
Available to order.
Add to View Price
#40 GASKET,FORK CYLINDER
44045-057
 $4.71
Available to order.
Add to View Price
#41 BOLT,SOCKET,FORK CYLINDER
44041-040
 $6.36
Available to order.
Add to View Price
#42 HOLDER,FORK AXLE
44063-013
 $22.50
Available to order.
Add to View Price
#43 CONE STERNG BERG LOW
92047-010
 $10.14
Available to order.
Add to View Price
#44 BOLT-STUD,8X30
172G0830
Superseded by 172BA0830
 $2.49
Available to order.
Add to View Price
