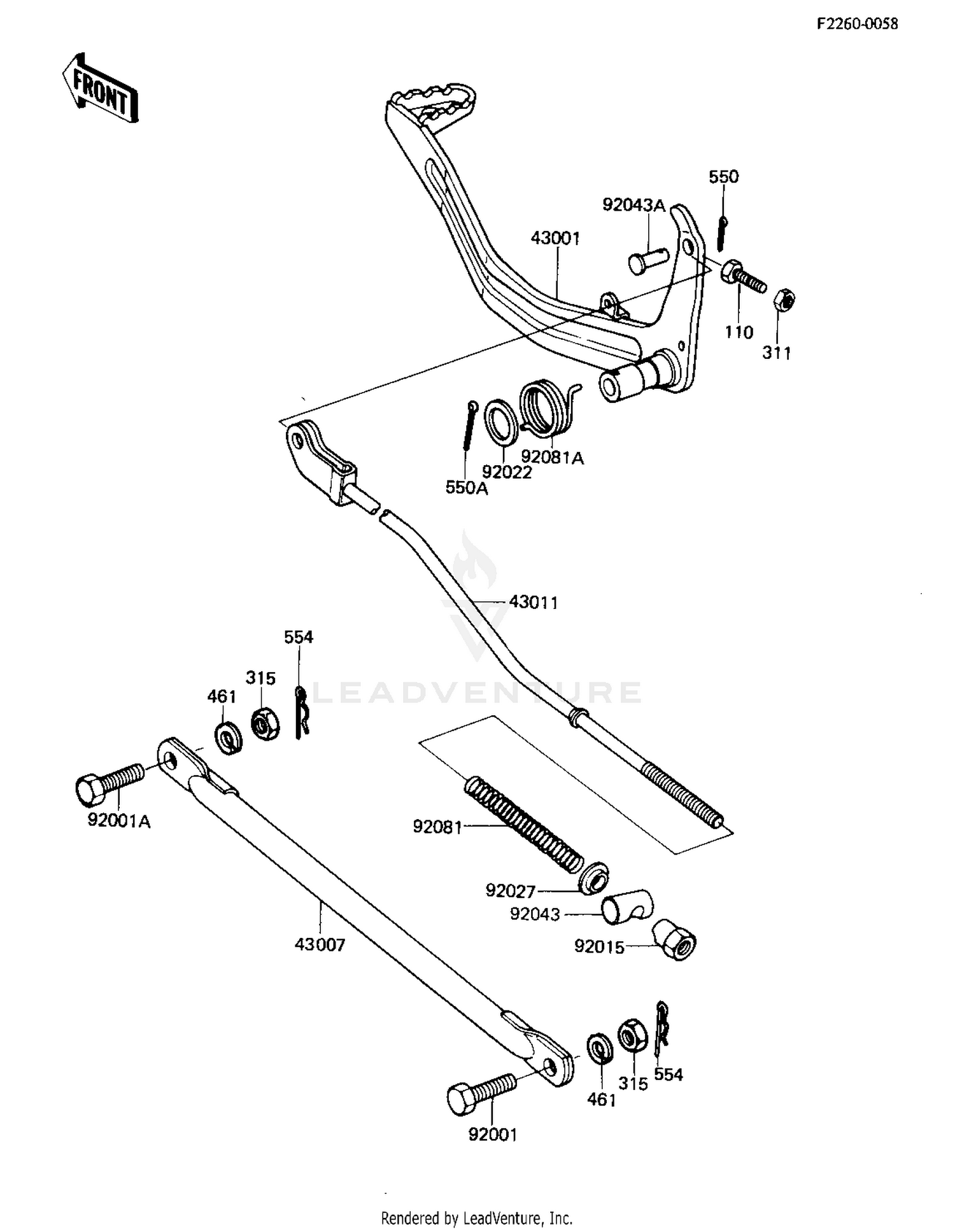

Brake Pedal/torque Link Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#43001
PEDAL,BRAKE
43001-1031
|
$87.85 | ||
|
Available to order. Add to View Price |
|||
|
#43007
TORQUE LINK,REAR BRAK
43007-048
|
$25.46 | ||
|
Available to order. Add to View Price |
|||
|
#43011
ROD,BRAKE
43011-1013
|
$21.20 | ||
|
Available to order. Add to View Price |
|||
|
#92001
BOLT,10X32
92003-003
Superseded by 92150-1872
|
$6.02 | ||
|
Available to order. Add to View Price |
|||
|
#92001A
BOLT TORQUE LINK FIT
92003-017
|
$5.53 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT,BRAKE ROD
92015-042
|
$6.02 | ||
|
Available to order. Add to View Price |
|||
|
#92022
WASHER,16.5X24X1.6
92022-1126
|
$4.09 | ||
|
Available to order. Add to View Price |
|||
|
#92027
COLLAR
92027-122
|
$8.30 | ||
|
Available to order. Add to View Price |
|||
|
#92043
PIN-BRAKE ROD
92043-065
|
$5.39 | ||
|
Available to order. Add to View Price |
|||
|
#92043A
PIN,6X11
92043-092
|
$4.54 | ||
|
Available to order. Add to View Price |
|||
|
#92081
SPRING,BRAKE ROD
43012-001
|
$4.50 | ||
|
Available to order. Add to View Price |
|||
|
#92081A
SPRING,BRAKE PEDAL
92081-1131
|
$5.14 | ||
|
Available to order. Add to View Price |
|||
|
#110
BOLT-UPSET
112G0620
Superseded by 112BA0620
|
$2.22 | ||
|
Available to order. Add to View Price |
|||
|
#311
NUT-HEX,6MM
311B0600
Superseded by 311AA0600
|
$0.93 | ||
|
Available to order. Add to View Price |
|||
|
#315
NUT-HEX-FINE,10MM
315B1000
Superseded by 315AA1000
|
$0.58 | ||
|
Available to order. Add to View Price |
|||
|
#461
WASHER-SPRING,10MM
461F1000
Superseded by 461DA1000
|
$0.67 | ||
|
Available to order. Add to View Price |
|||
|
#550
PIN-COTTER,2.0X15
550D2015
Superseded by 550AA2015
|
$1.09 | ||
|
Available to order. Add to View Price |
|||
|
#550A
PIN,COTTER,2.5X40
550D2540
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#554
PIN-SNAP
554A0800
Superseded by 554DA0800
|
$1.32 | ||
|
Available to order. Add to View Price |
|||
