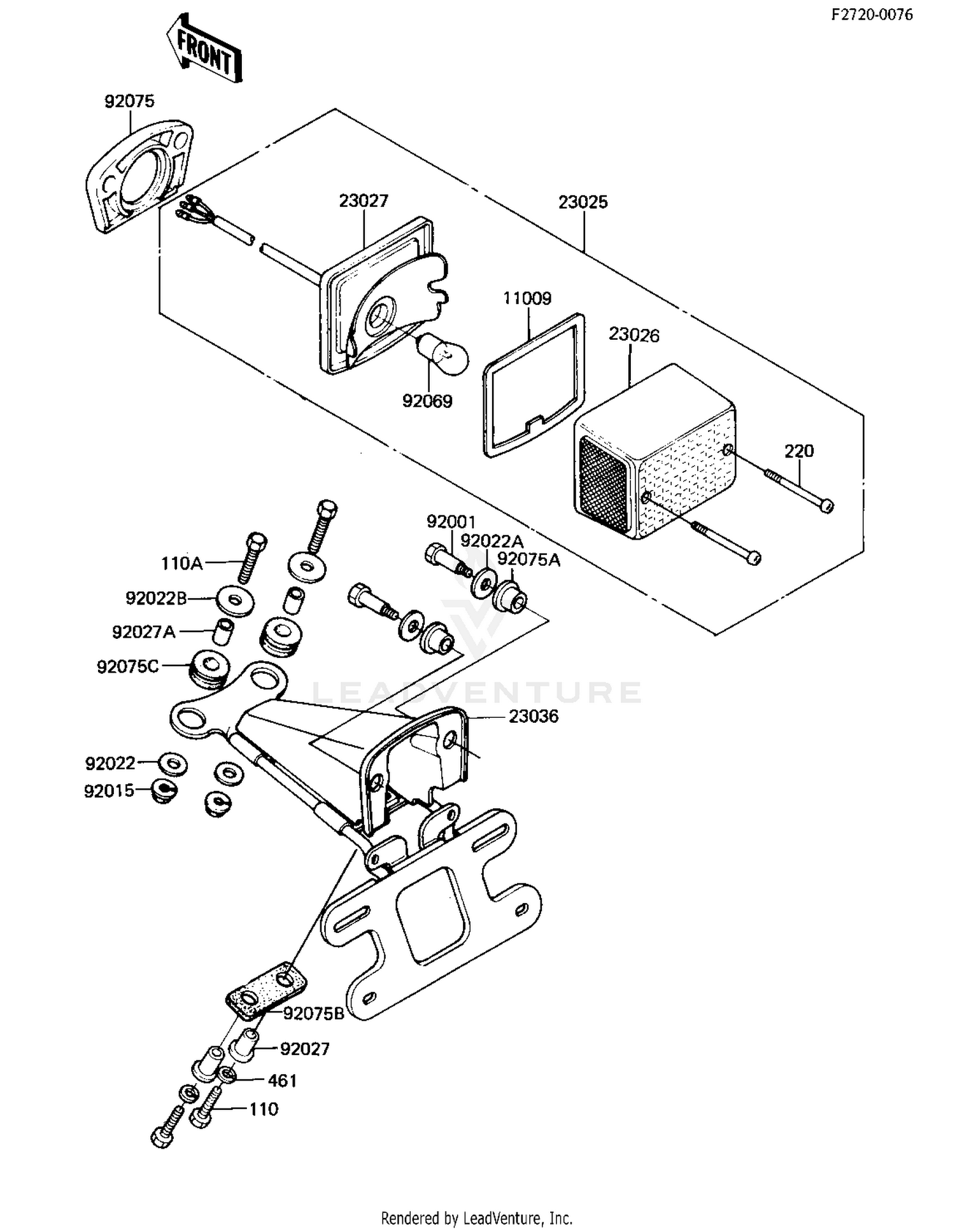

Taillight Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#11009
GASKET,TAIL LAMP LENS
11009-1078
|
$7.29 | ||
|
Available to order. Add to View Price |
|||
|
#23025
LAMP-TAIL
23025-1032
|
$134.57 | ||
|
Available to order. Add to View Price |
|||
|
#23026
LENS,TAIL LAMP
23026-1003
|
$54.40 | ||
|
Available to order. Add to View Price |
|||
|
#23027
CASE,TAIL LAMP
23027-1020
|
$90.78 | ||
|
Available to order. Add to View Price |
|||
|
#23036
BRACKET,TAIL LAMP
23036-1019
|
$89.33 | ||
|
Available to order. Add to View Price |
|||
|
#92001
BOLT,
92001-1197
|
$4.09 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT,LOCK 6MM
92017-014
|
$7.25 | ||
|
Available to order. Add to View Price |
|||
|
#92022
WASHER,6.5X20X1.6
92022-125
Superseded by 92200-0283
|
$1.36 | ||
|
Available to order. Add to View Price |
|||
|
#92022A
WASHER,8.5X20X1.6
92022-1561
|
$4.17 | ||
|
Available to order. Add to View Price |
|||
|
#92022B
WASHER,6.5X22X1.6
92022-237
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
|
#92027
COLLAR
92027-1276
|
$16.95 | ||
|
Available to order. Add to View Price |
|||
|
#92027A
COLLAR,6.8X10X12
92027-162
|
$6.36 | ||
|
Available to order. Add to View Price |
|||
|
#92069
BULB,60-32/3CP
92069-074
|
$5.57 | ||
|
Available to order. Add to View Price |
|||
|
#92075
DAMPER RUBBER,TL LAMP
92075-1094
|
$15.51 | ||
|
Available to order. Add to View Price |
|||
|
#92075A
DAMPER RUBBER
92075-1162
|
$4.64 | ||
|
Available to order. Add to View Price |
|||
|
#92075B
DAMPER RUBBER
92075-1163
|
$3.49 | ||
|
Available to order. Add to View Price |
|||
|
#92075C
DAMPER
92075-209
|
$4.54 | ||
|
Available to order. Add to View Price |
|||
|
#110
BOLT-UPSET
112G0630
Superseded by 112BA0630
|
$1.36 | ||
|
Available to order. Add to View Price |
|||
|
#110A
BOLT 6X35
110R0635
|
$5.77 | ||
|
Available to order. Add to View Price |
|||
|
#220
SCREW-PAN-CROS,4X40
220R0440
|
$5.83 | ||
|
Available to order. Add to View Price |
|||
|
#461
WASHER-SPRING,6MM
461F0600
Superseded by 461DA0600
|
$0.69 | ||
|
Available to order. Add to View Price |
|||
