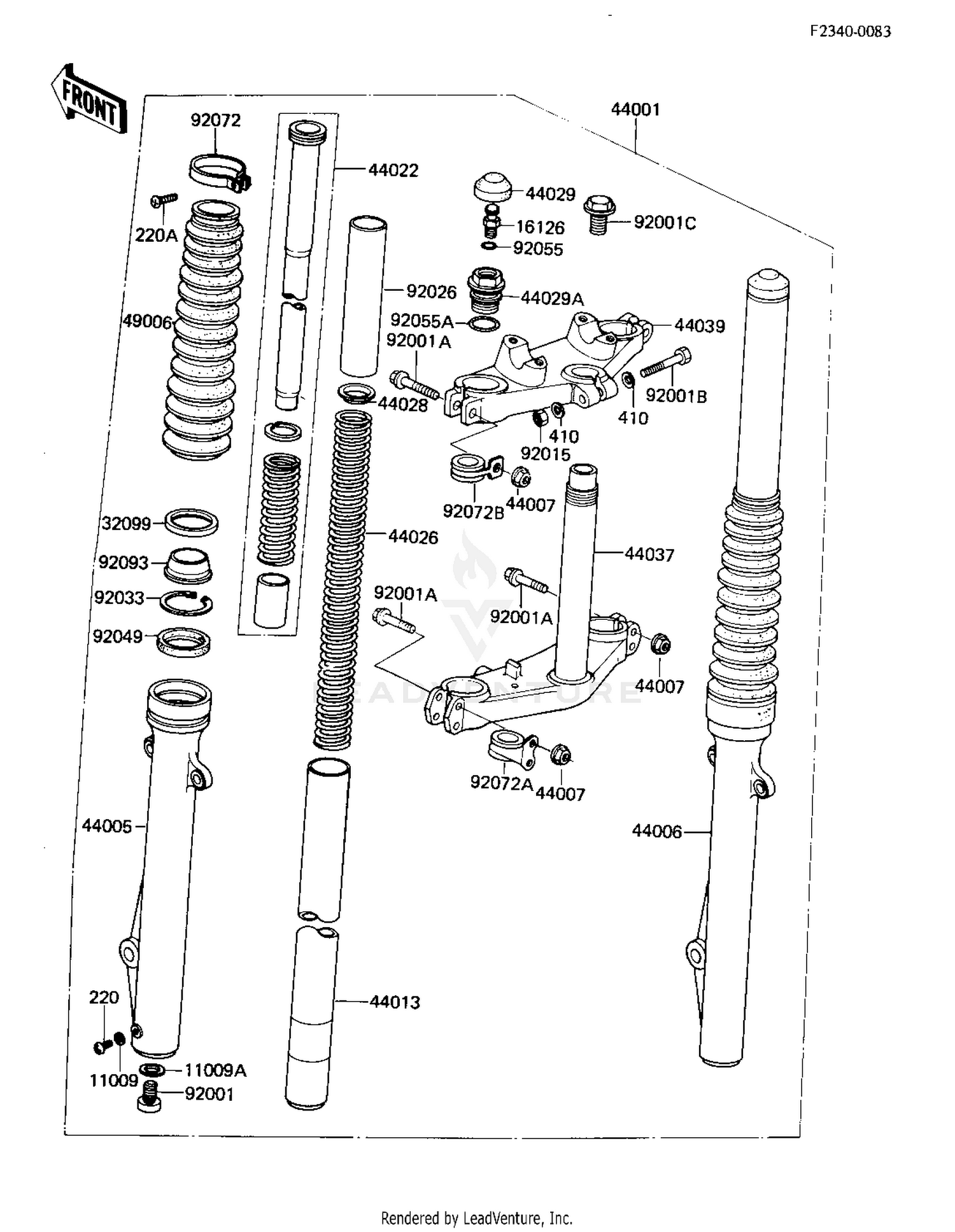

Front Fork Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#11009
GASKET,FORK DRAIN PLUG
44045-002
|
$5.02 | ||
|
Available to order. Add to View Price |
|||
|
#11009A
GASKET,FORK CYLINDER
44045-057
|
$4.71 | ||
|
Available to order. Add to View Price |
|||
|
#16126
VALVE ASSY,AIR
16126-1003
|
$40.11 | ||
|
Available to order. Add to View Price |
|||
|
#32099
CASE,DUST SHIELD
32099-1012
|
$9.70 | ||
|
Available to order. Add to View Price |
|||
|
#44001
FORK-FRONT
44001-1434
|
$1,342.75 | ||
|
Available to order. Add to View Price |
|||
|
#44005
TUBE,LH,FORK OUTER
44005-1026
|
$230.16 | ||
|
Available to order. Add to View Price |
|||
|
#44006
TUBE,RH,FORK OUTER
44006-1026
|
$351.78 | ||
|
Available to order. Add to View Price |
|||
|
#44007
NUT,8M/M
44007-1002
|
$3.48 | ||
|
Available to order. Add to View Price |
|||
|
#44013
TUBE, FORK INNER
44013-1093
|
$244.69 | ||
|
Available to order. Add to View Price |
|||
|
#44022
CYLINDER-FORK
44022-1022
|
$91.93 | ||
|
Available to order. Add to View Price |
|||
|
#44026
SPRING,FORK INNER
44026-1033
|
$28.15 | ||
|
Available to order. Add to View Price |
|||
|
#44028
GUIDE,FORK SPRING
44028-033
|
$8.43 | ||
|
Available to order. Add to View Price |
|||
|
#44029
CAP,RUBBER,FORK TOP
44029-1009
|
$10.13 | ||
|
Available to order. Add to View Price |
|||
|
#44029A
CAP,FORK TOP
44029-1011
|
$85.79 | ||
|
Available to order. Add to View Price |
|||
|
#44037
STEM,STEERING
44037-1023
|
$269.49 | ||
|
Available to order. Add to View Price |
|||
|
#44039
HEAD,STEERING STEM
44039-1019
|
$161.98 | ||
|
Available to order. Add to View Price |
|||
|
#49006
BOOT,FORK,BLACK
49006-1009
Superseded by 49006-1009-BD
|
$70.19 | ||
|
Available to order. Add to View Price |
|||
|
#92001
BOLT,SOCKET,FORK CYLINDER
44041-040
|
$6.36 | ||
|
Available to order. Add to View Price |
|||
|
#92001A
BOLT,FLANGED,8X45
92001-1205
|
$8.60 | ||
|
Available to order. Add to View Price |
|||
|
#92001B
BOLT,8X50
92002-1168
|
$5.12 | ||
|
Available to order. Add to View Price |
|||
|
#92001C
BOLT,FLANGED,14X20
92001-1316
|
$15.72 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT,LOCK,8MM
92015-1124
|
$5.25 | ||
|
Available to order. Add to View Price |
|||
|
#92026
SPACER,FORK INNER SPR
92026-1053
|
$9.38 | ||
|
Available to order. Add to View Price |
|||
|
#92033
RING-SNAP,FORK OIL
92033-1100
|
$14.41 | ||
|
Available to order. Add to View Price |
|||
|
#92049
SEAL-OIL,FORK OUTER P
92049-1009
Superseded by 92049-1216
|
$22.38 | ||
|
Available to order. Add to View Price |
|||
|
#92055
0 RING,AIR VALVE
92055-1018
|
$6.12 | ||
|
Available to order. Add to View Price |
|||
|
#92055A
RING-O,FORK TOP CAP
92055-1051
|
$5.34 | ||
|
Available to order. Add to View Price |
|||
|
#92072
BAND,BOOT
92072-1008
Superseded by 92072-1168
|
$10.55 | ||
|
Available to order. Add to View Price |
|||
|
#92072A
CLAMP,CABLE
92072-1027
|
$18.99 | ||
|
Available to order. Add to View Price |
|||
|
#92072B
CLAMP,CABLE
92072-1045
|
$18.78 | ||
|
Available to order. Add to View Price |
|||
|
#92093
DUST SHIELD,FORK OUT
92093-1036
|
$15.68 | ||
|
Available to order. Add to View Price |
|||
|
#220
SCREW-PAN-CROS,4X8
220B0408
Superseded by 220AA0408
|
$0.67 | ||
|
Available to order. Add to View Price |
|||
|
#220A
SCREW-PAN-CROS,4X20
220B0420
Superseded by 220AA0420
|
$2.59 | ||
|
Available to order. Add to View Price |
|||
|
#410
WASHER-PLAIN-SMALL,8MM
410B0800
Superseded by 410AA0800
|
$0.93 | ||
|
Available to order. Add to View Price |
|||
