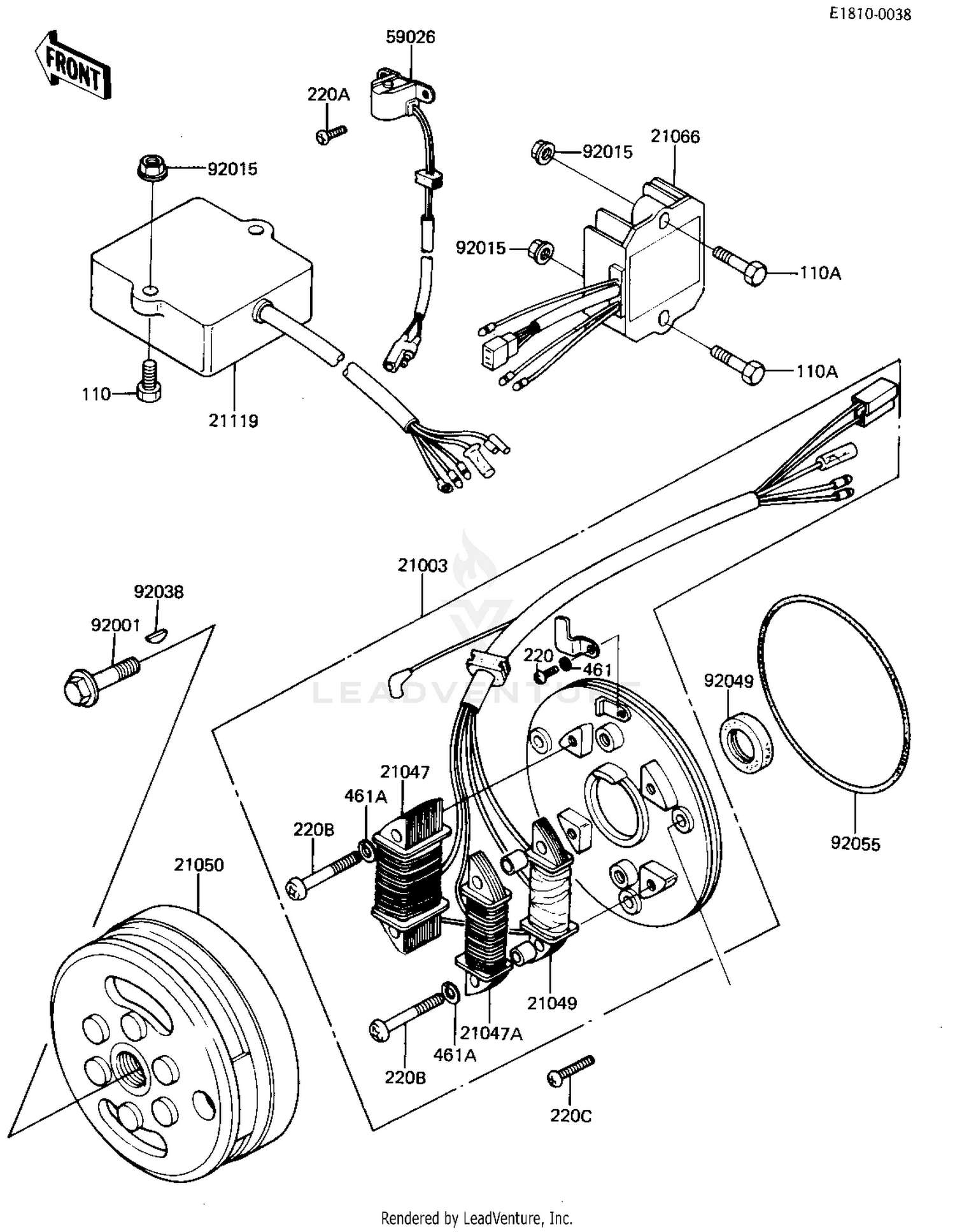

Ignition/generator/regulator Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#21003
STATOR ASSY,MAGNETO
21003-1034
|
$397.75 | ||
|
Available to order. Add to View Price |
|||
|
#21047
COIL,LIGHTING"A"
21047-1011
|
$127.31 | ||
|
Available to order. Add to View Price |
|||
|
#21047A
COIL,LIGHTING"B"
21047-1012
|
$127.31 | ||
|
Available to order. Add to View Price |
|||
|
#21049
COIL,EXCITING
21049-1008
|
$121.85 | ||
|
Available to order. Add to View Price |
|||
|
#21050
FLYWHEEL,MAGNETO
21050-1017
|
$474.54 | ||
|
Available to order. Add to View Price |
|||
|
#21066
REGULATOR,VOLTAGE
21066-1010
|
$489.68 | ||
|
Available to order. Add to View Price |
|||
|
#21119
IGNITER
21119-1006
|
$835.39 | ||
|
Available to order. Add to View Price |
|||
|
#59026
COIL,PULSING
59026-1005
|
$183.01 | ||
|
Available to order. Add to View Price |
|||
|
#92001
BOLT,FLANGED,10X40
92001-1201
Superseded by 92002-1296
|
$10.28 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT,FLANGED,6MM
92015-1078
Superseded by 92210-0630
|
$1.94 | ||
|
Available to order. Add to View Price |
|||
|
#92038
KEY,WOODRUFF
92038-001
|
$4.80 | ||
|
Available to order. Add to View Price |
|||
|
#92049
OIL SEAL,S-27408-LHS
92049-1004
|
$8.98 | ||
|
Available to order. Add to View Price |
|||
|
#92055
O RING,MAGNETO BASE
92055-1006
|
$9.21 | ||
|
Available to order. Add to View Price |
|||
|
#110
BOLT-UPSET
112B0614
Superseded by 112AA0614
|
$0.48 | ||
|
Available to order. Add to View Price |
|||
|
#110A
BOLT-UPSET,6X25
112G0625
Superseded by 112BA0625
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#220
SCREW-PAN CROS,4X6
220B0406
Superseded by 220AA0406
|
$1.62 | ||
|
Available to order. Add to View Price |
|||
|
#220A
SCREW-PAN-CROS,5X8
220B0508
Superseded by 220AA0508
|
$0.46 | ||
|
Available to order. Add to View Price |
|||
|
#220B
SCREW-PAN-CROS
220B0535
Superseded by 220AA0535
|
$3.58 | ||
|
Available to order. Add to View Price |
|||
|
#220C
SCREW-PAN-CROS,6X25
220B0625
Superseded by 220AA0625
|
$2.70 | ||
|
Available to order. Add to View Price |
|||
|
#461
WASHER SPRING 4MM
461F0400
|
$0.46 | ||
|
Available to order. Add to View Price |
|||
|
#461A
WASHER-SPRING,5MM
461F0500
Superseded by 461DA0500
|
$0.69 | ||
|
Available to order. Add to View Price |
|||
