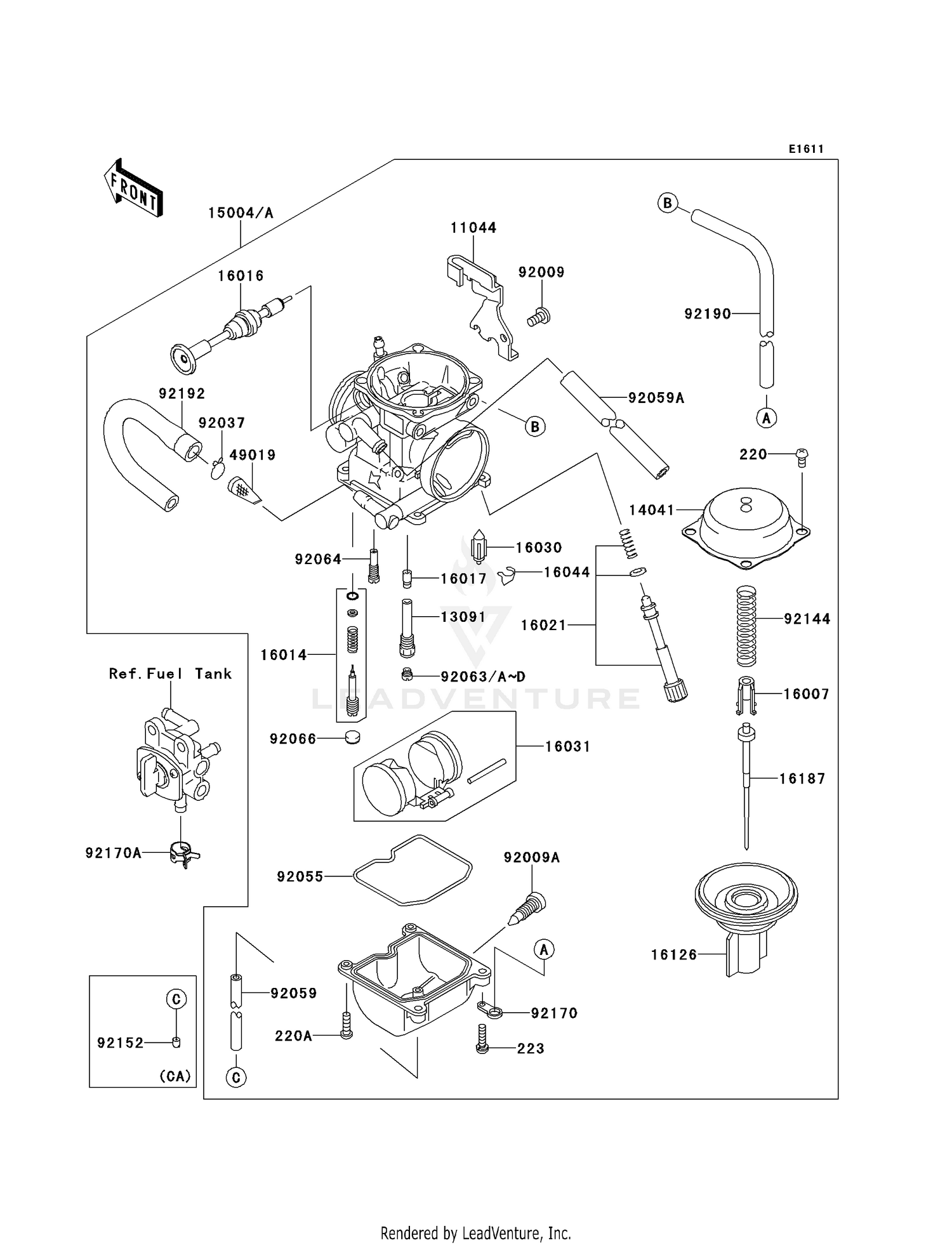

Carburetor Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#11044
BRACKET,THROTTLE CABL
11044-1353
|
$57.29 | ||
|
Available to order. Add to View Price |
|||
|
#13091
HOLDER,NEEDLE JET
13091-1332
|
$29.34 | ||
|
Available to order. Add to View Price |
|||
|
#14041
TOP-CHAMBER,MIXING
14041-1061
Superseded by 16005-1065
|
$69.39 | ||
|
Available to order. Add to View Price |
|||
|
#15004
CARBURETOR-ASSY,CVK34
15004-0023
|
$556.88 | ||
|
Available to order. Add to View Price |
|||
|
#15004A
CARBURETOR-ASSY,CVK34
15004-0029
|
$556.88 | ||
|
Available to order. Add to View Price |
|||
|
#16007
SEAT-SPRING,VALVE
16007-1117
|
$24.14 | ||
|
Available to order. Add to View Price |
|||
|
#16014
SCREW-PILOT AIR
16014-1081
|
$23.70 | ||
|
Available to order. Add to View Price |
|||
|
#16016
PLUNGER,STARTER
16016-0013
|
$40.59 | ||
|
Available to order. Add to View Price |
|||
|
#16017
JET-NEEDLE
16017-1439
|
$41.79 | ||
|
Available to order. Add to View Price |
|||
|
#16021
SCREW-THROTTLE STOP
16021-1201
|
$45.11 | ||
|
Available to order. Add to View Price |
|||
|
#16030
VALVE-FLOAT
16030-1007
|
$46.13 | ||
|
Available to order. Add to View Price |
|||
|
#16031
FLOAT
16031-1077
|
$51.51 | ||
|
Available to order. Add to View Price |
|||
|
#16044
CLAMP,FLOAT VALVE
16044-007
|
$7.64 | ||
|
Available to order. Add to View Price |
|||
|
#16126
VALVE,VACUUM
16126-1339
|
$175.20 | ||
|
Available to order. Add to View Price |
|||
|
#16187
NEEDLE-JET,NNLA
16187-0284
|
$37.29 | ||
|
Available to order. Add to View Price |
|||
|
#49019
FILTER-FUEL
49019-1097
|
$8.91 | ||
|
Available to order. Add to View Price |
|||
|
#92009
SCREW,5X10
92009-1365
|
$7.09 | ||
|
Available to order. Add to View Price |
|||
|
#92009A
SCREW,DRAIN,6X0.75
92009-1551
|
$9.56 | ||
|
Available to order. Add to View Price |
|||
|
#92037
CLAMP,FUEL TUBE
92037-1075
|
$3.84 | ||
|
Available to order. Add to View Price |
|||
|
#92055
RING-O,FLOAT CHAMBER
92055-1222
|
$16.82 | ||
|
Available to order. Add to View Price |
|||
|
#92059
TUBE,3.5X6.5X420
92059-1110
Superseded by 92059-1748
|
$22.42 | ||
|
Available to order. Add to View Price |
|||
|
#92059A
TUBE,L=350
92059-1237
|
$22.95 | ||
|
Available to order. Add to View Price |
|||
|
#92063
JET-MAIN,#118
92063-1071
|
$14.26 | ||
|
Available to order. Add to View Price |
|||
|
#92063A
JET-MAIN,#120
92063-1072
|
$14.26 | ||
|
Available to order. Add to View Price |
|||
|
#92063B
JET-MAIN,2ND,#122
92063-1073
|
$14.26 | ||
|
Available to order. Add to View Price |
|||
|
#92063C
JET-MAIN,#112
92063-1117
|
$14.26 | ||
|
Available to order. Add to View Price |
|||
|
#92063D
JET-MAIN,#115
92063-1118
|
$14.26 | ||
|
Available to order. Add to View Price |
|||
|
#92064
JET-PILOT,#35
92064-1209
|
$31.95 | ||
|
Available to order. Add to View Price |
|||
|
#92066
PLUG,PILOT AIR SCREW,6.9X2
92066-1051
|
$4.89 | ||
|
Available to order. Add to View Price |
|||
|
#92144
SPRING,VACUUM VALVE
92144-1538
|
$22.08 | ||
|
Available to order. Add to View Price |
|||
|
#92152
COLLAR,0.8X4.2X5.0
92152-0218
|
$2.89 | ||
|
Available to order. Add to View Price |
|||
|
#92170
CLAMP,TUBE
92170-1496
|
$12.58 | ||
|
Available to order. Add to View Price |
|||
|
#92170A
CLAMP
92170-1872
|
$3.86 | ||
|
Available to order. Add to View Price |
|||
|
#92190
TUBE,5X8X430
92190-1560
|
$21.66 | ||
|
Available to order. Add to View Price |
|||
|
#220
SCREW-PAN-CROS,4X8
220AA0408
|
$0.67 | ||
|
Available to order. Add to View Price |
|||
|
#220A
SCREW-PAN-CROS
220AA0414
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#223
SCREW-PAN-WS-CROS,4X16
223AA0416
|
$0.67 | ||
|
Available to order. Add to View Price |
|||
|
#92192
TUBE,FUEL,L=150
92192-0742
|
$15.79 | ||
|
Available to order. Add to View Price |
|||
