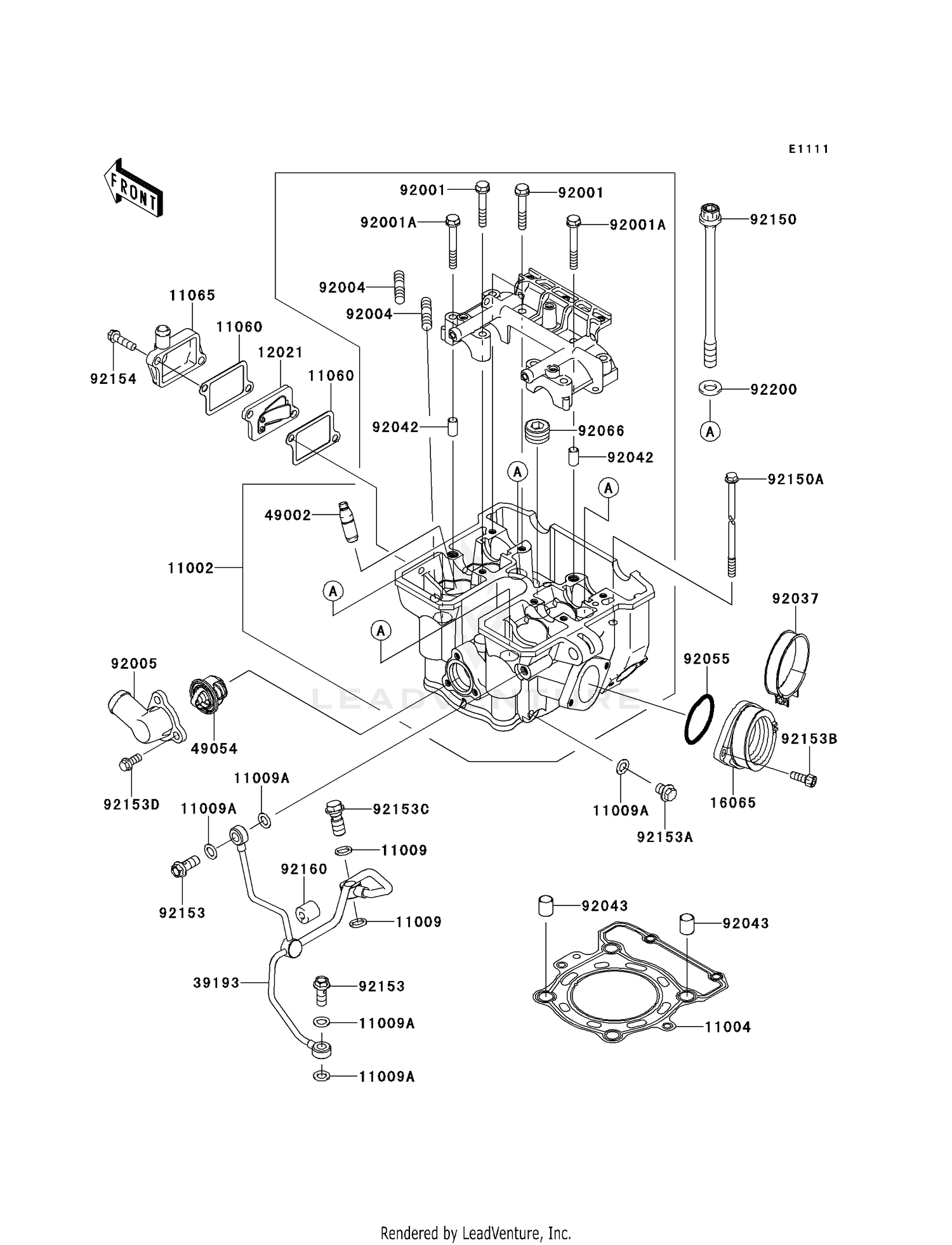

Cylinder Head Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#11002
HEAD-ASSY-CYLINDER
11002-0072
|
$952.81 | ||
|
Available to order. Add to View Price |
|||
|
#11004
GASKET-HEAD
11004-1249
|
$44.19 | ||
|
Available to order. Add to View Price |
|||
|
#11009
GASKET,10X14.5X1.5
11009-1105
|
$6.30 | ||
|
Available to order. Add to View Price |
|||
|
#11009A
GASKET,8.2X14X1.0
11009-1344
|
$3.14 | ||
|
Available to order. Add to View Price |
|||
|
#11060
GASKET,AIR SUCTION VALVE
11060-1886
|
$3.53 | ||
|
Available to order. Add to View Price |
|||
|
#11065
CAP
11065-1190
Superseded by 11065-0293
|
$26.14 | ||
|
Available to order. Add to View Price |
|||
|
#12021
VALVE-ASSY-REED
12021-1115
Superseded by 12021-0049
|
$46.32 | ||
|
Available to order. Add to View Price |
|||
|
#16065
HOLDER-CARBURETOR
16065-1283
|
$47.79 | ||
|
Available to order. Add to View Price |
|||
|
#39193
PIPE-OIL
39193-0045
|
$106.87 | ||
|
Available to order. Add to View Price |
|||
|
#49002
GUIDE-VALVE
49002-1126
|
$32.90 | ||
|
Available to order. Add to View Price |
|||
|
#49054
THERMOSTAT
49054-1053
|
$52.44 | ||
|
Available to order. Add to View Price |
|||
|
#92001
BOLT,FLANGED,6X38
92001-1105
|
$4.54 | ||
|
Available to order. Add to View Price |
|||
|
#92001A
BOLT,6X46
92001-1872
|
$4.17 | ||
|
Available to order. Add to View Price |
|||
|
#92004
STUD
92004-0050
|
$3.50 | ||
|
Available to order. Add to View Price |
|||
|
#92005
FITTING
92005-0107
|
$30.63 | ||
|
Available to order. Add to View Price |
|||
|
#92037
CLAMP,ID=53,BLACK
92037-1304
|
$9.92 | ||
|
Available to order. Add to View Price |
|||
|
#92042
PIN,DOWEL,6.3X8X14
92042-007
|
$5.52 | ||
|
Available to order. Add to View Price |
|||
|
#92043
PIN,10.1X12X14
92043-4009
|
$6.02 | ||
|
Available to order. Add to View Price |
|||
|
#92055
RING-O
92055-1255
|
$17.91 | ||
|
Available to order. Add to View Price |
|||
|
#92066
PLUG,PT1/2X12.5
92066-0002
|
$8.67 | ||
|
Available to order. Add to View Price |
|||
|
#92150
BOLT,10X165
92150-1368
|
$18.22 | ||
|
Available to order. Add to View Price |
|||
|
#92150A
BOLT,6X135
92150-1552
|
$7.09 | ||
|
Available to order. Add to View Price |
|||
|
#92153
BOLT,BANJO,8X20
92153-0651
|
$10.81 | ||
|
Available to order. Add to View Price |
|||
|
#92153A
BOLT,FLANGED,8X10
92153-1342
|
$3.29 | ||
|
Available to order. Add to View Price |
|||
|
#92153B
BOLT,SOCKET,6X16
92153-1344
|
$2.89 | ||
|
Available to order. Add to View Price |
|||
|
#92153C
BOLT,BANJO,10X23
92153-1345
|
$9.94 | ||
|
Available to order. Add to View Price |
|||
|
#92153D
BOLT
92153-1805
|
$2.54 | ||
|
Available to order. Add to View Price |
|||
|
#92154
BOLT,FLANGED,6X22
92154-0504
|
$1.89 | ||
|
Available to order. Add to View Price |
|||
|
#92160
DAMPER,6.3X15X14
92160-1523
|
$2.62 | ||
|
Available to order. Add to View Price |
|||
|
#92200
WASHER,10.5X19X2.3
92200-1042
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
