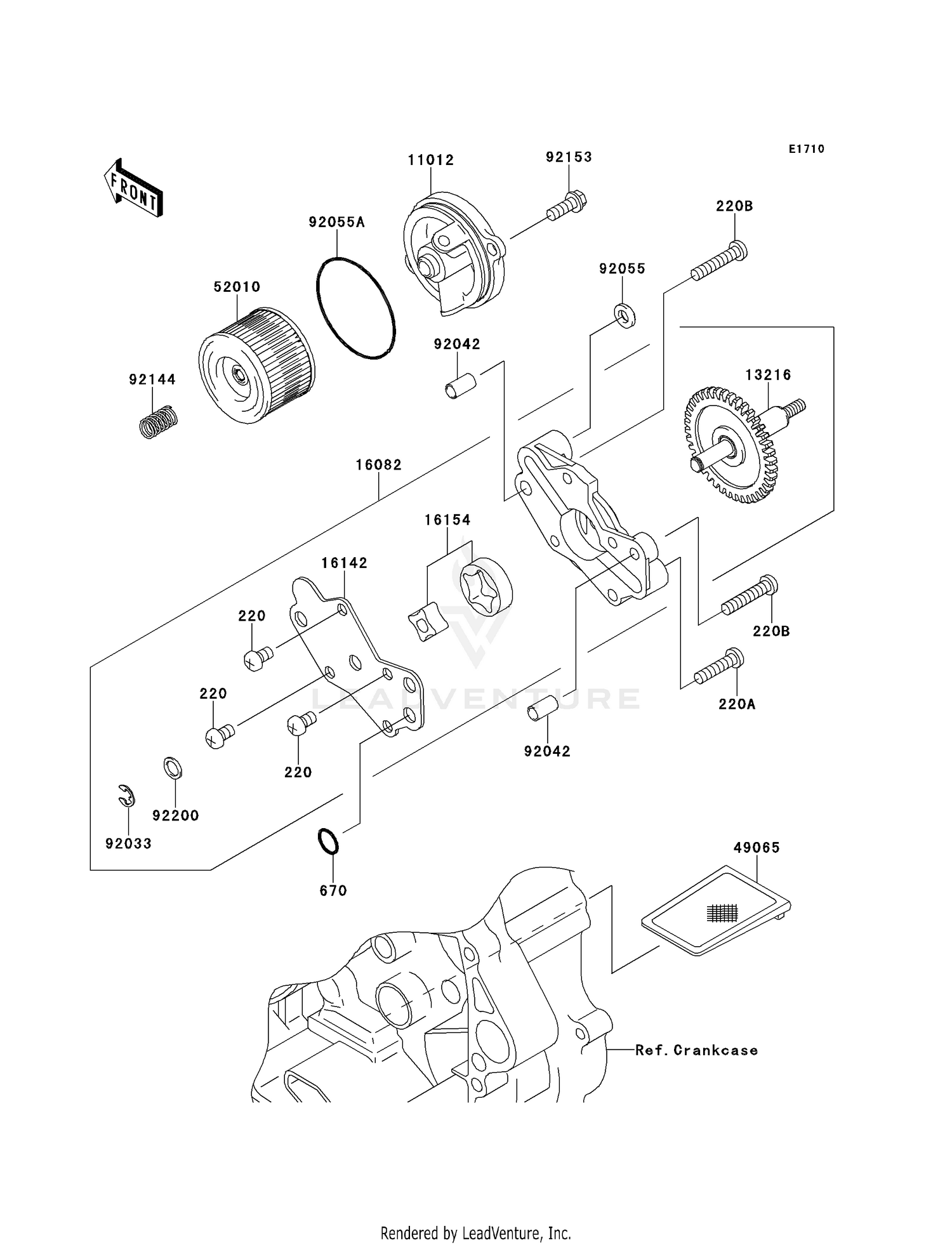

Oil Pump Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#220
SCREW-PAN-CROS,6X10
220AA0610
|
$3.14 | ||
|
Available to order. Add to View Price |
|||
|
#220A
SCREW-PAN-CROS,6X25
220AA0625
|
$2.70 | ||
|
Available to order. Add to View Price |
|||
|
#220B
SCREW-PAN-CROS,6X30
220AA0630
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#670
O RING,10MM
670D2010
|
$1.90 | ||
|
Available to order. Add to View Price |
|||
|
#11012
CAP,OIL FILTER
11012-1915
|
$56.16 | ||
|
Available to order. Add to View Price |
|||
|
#13216
GEAR-COMP,OIL PUMP
13216-1193
Superseded by 13216-0878
|
$113.15 | ||
|
Available to order. Add to View Price |
|||
|
#16082
PUMP-ASSY-OIL
16082-1163
Superseded by 16082-0727
|
$166.13 | ||
|
Available to order. Add to View Price |
|||
|
#16142
COVER-PUMP
16142-1123
Superseded by 16142-0713
|
$41.98 | ||
|
Available to order. Add to View Price |
|||
|
#16154
ROTOR-PUMP
16154-1130
Superseded by 16154-0714
|
$34.33 | ||
|
Available to order. Add to View Price |
|||
|
#49065
FILTER-OIL
49065-1058
|
$12.31 | ||
|
Available to order. Add to View Price |
|||
|
#52010
ELEMENT-OIL FILTER
52010-1053
|
$8.78 | ||
|
Available to order. Add to View Price |
|||
|
#92033
CIRCLIP-TYPE-E,6MM
92033-1327
Superseded by 482J6000
|
$0.67 | ||
|
Available to order. Add to View Price |
|||
|
#92042
PIN,DOWEL,6.3X8X14
92042-007
|
$5.52 | ||
|
Available to order. Add to View Price |
|||
|
#92055
RING-O,OD=13
92055-074
|
$8.28 | ||
|
Available to order. Add to View Price |
|||
|
#92055A
RING-O,52.6X2.4
92055-1577
|
$4.54 | ||
|
Available to order. Add to View Price |
|||
|
#92144
SPRING
92144-1761
|
$4.50 | ||
|
Available to order. Add to View Price |
|||
|
#92153
BOLT,6X16
92153-0695
|
$2.98 | ||
|
Available to order. Add to View Price |
|||
|
#92200
WASHER,10.2X14.5X1.0
92200-1591
|
$4.24 | ||
|
Available to order. Add to View Price |
|||
