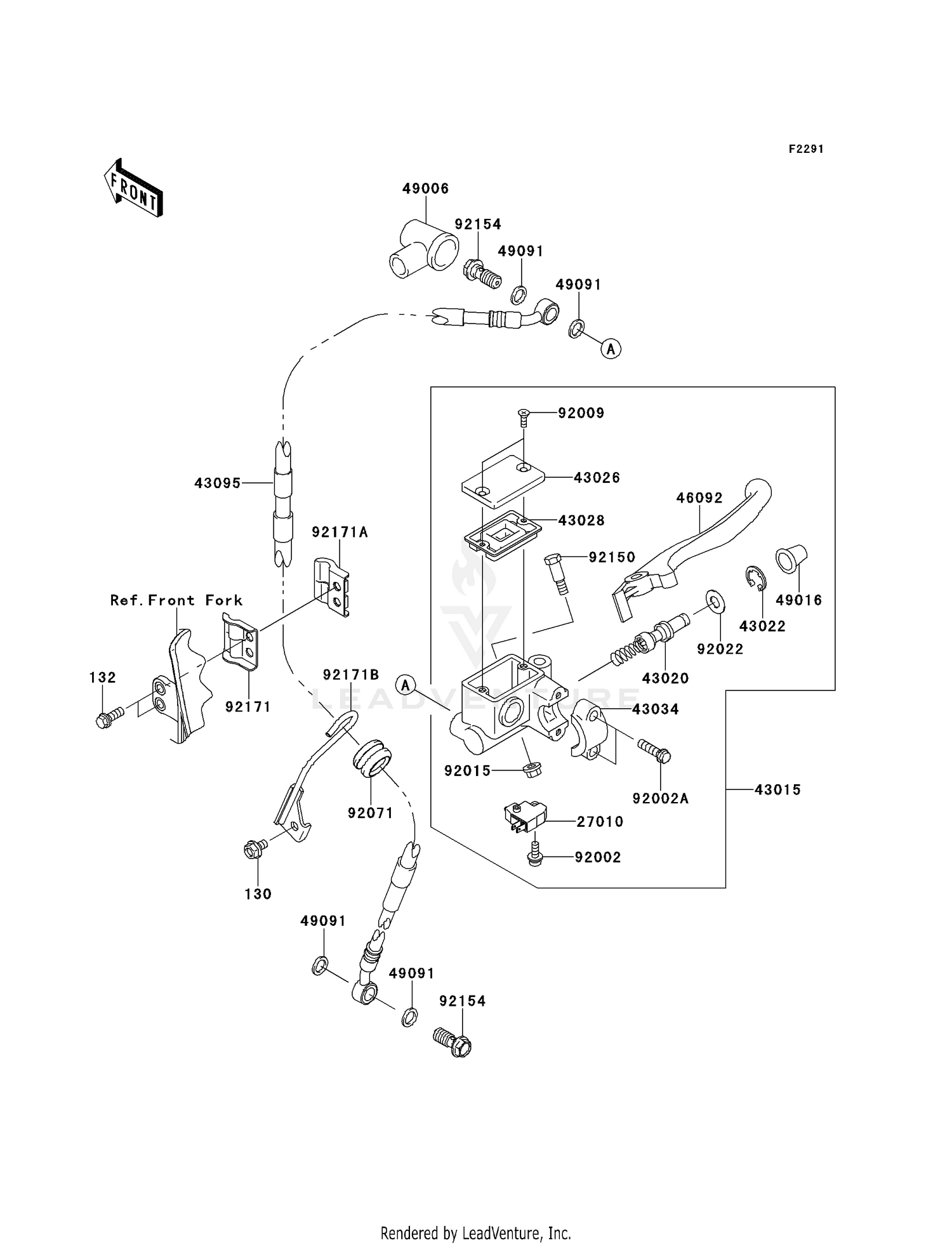

Front Master Cylinder Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#130
BOLT-FLANGED,6X10
130BB0610
|
$2.42 | ||
|
Available to order. Add to View Price |
|||
|
#132
BOLT-FLANGED-SMALL,6X16
132BB0616
|
$2.42 | ||
|
Available to order. Add to View Price |
|||
|
#27010
SWITCH,BRAKE
27010-0025
Superseded by 27010-1170
|
$28.14 | ||
|
Available to order. Add to View Price |
|||
|
#43015
CYLINDER-ASSY-MASTER,FR
43015-1697
Superseded by 43015-0705
|
$266.92 | ||
|
Available to order. Add to View Price |
|||
|
#43020
PISTON-COMP-BRAKE
43020-1126
|
$48.07 | ||
|
Available to order. Add to View Price |
|||
|
#43022
STOPPER-BRAKE,PISTON
43022-1010
|
$4.50 | ||
|
Available to order. Add to View Price |
|||
|
#43026
CAP-BRAKE
43026-1074
|
$24.68 | ||
|
Available to order. Add to View Price |
|||
|
#43028
DIAPHRAGM
43028-1061
|
$15.60 | ||
|
Available to order. Add to View Price |
|||
|
#43034
HOLDER-BRAKE,MASTER CYLINDER
43034-1016
|
$18.76 | ||
|
Available to order. Add to View Price |
|||
|
#43095
HOSE-BRAKE,FR
43095-0687
Superseded by 43095-1814
|
$116.58 | ||
|
Unavailable |
|||
|
#46092
LEVER-GRIP,FRONT BRAKE
46092-1140
|
$20.14 | ||
|
Available to order. Add to View Price |
|||
|
#49006
BOOT,DUST
49006-1040
Superseded by 49006-1041
|
$11.08 | ||
|
Available to order. Add to View Price |
|||
|
#49016
COVER-SEAL,MASTER CYLINDER
49016-1044
|
$8.38 | ||
|
Available to order. Add to View Price |
|||
|
#49091
WASHER-SEAL,10.1X14.5X1.5
49091-0001
|
$2.09 | ||
|
Available to order. Add to View Price |
|||
|
#92002
BOLT,SCREW,4X12
92002-1323
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
|
#92002A
BOLT
92002-1894
|
$5.34 | ||
|
Available to order. Add to View Price |
|||
|
#92009
SCREW,4MM
92009-1458
|
$3.12 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT,FLANGED,6MM
92015-1528
|
$5.34 | ||
|
Available to order. Add to View Price |
|||
|
#92022
WASHER
92022-1814
|
$4.54 | ||
|
Available to order. Add to View Price |
|||
|
#92071
GROMMET,15X20X16
92071-0056
|
$3.93 | ||
|
Available to order. Add to View Price |
|||
|
#92150
BOLT,LEVER SET
92150-1451
|
$13.72 | ||
|
Available to order. Add to View Price |
|||
|
#92154
BOLT,FLANGED,10X23
92154-0732
|
$4.89 | ||
|
Available to order. Add to View Price |
|||
|
#92171
CLAMP,BRAKE HOSE
92171-1626
|
$7.34 | ||
|
Available to order. Add to View Price |
|||
|
#92171A
CLAMP,BRAKE HOSE
92171-1627
|
$7.34 | ||
|
Available to order. Add to View Price |
|||
|
#92171B
CLAMP,BRAKE HOSE
92171-1839
|
$12.11 | ||
|
Available to order. Add to View Price |
|||
