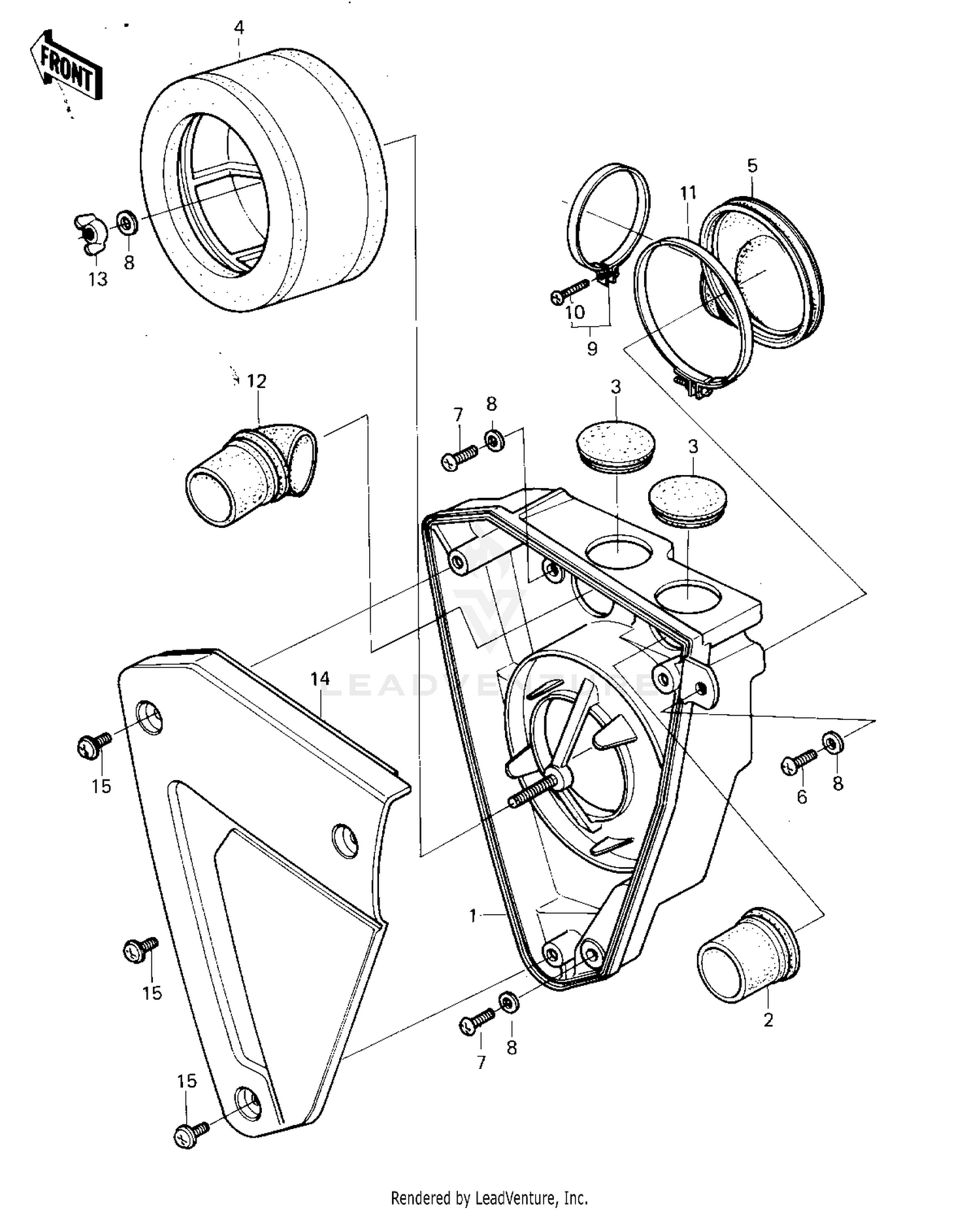

Air Cleaner ('80 A6) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BODY,AIR CLEANER
11011-1047
|
$65.84 | ||
|
Available to order. Add to View Price |
|||
|
#2
CAP,AIR CLEANER
11012-1109
|
$13.35 | ||
|
Available to order. Add to View Price |
|||
|
#3
CAP,AIR CLEANER
11012-1111
|
$14.52 | ||
|
Available to order. Add to View Price |
|||
|
#4
ELEMENT,AIR CLNR
11013-1031
|
$62.30 | ||
|
Available to order. Add to View Price |
|||
|
#5
DUCT
14073-1066
|
$39.89 | ||
|
Available to order. Add to View Price |
|||
|
#6
SCREW-PAN-CROS,6X12
220B0612
Superseded by 220AA0612
|
$1.16 | ||
|
Available to order. Add to View Price |
|||
|
#7
SCREW-PAN-CROS,6X16
220B0616
Superseded by 220AA0616
|
$2.95 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER,6.5X20X1.6
92022-125
Superseded by 92200-0283
|
$1.36 | ||
|
Available to order. Add to View Price |
|||
|
#9
CLAMP
92037-171
Superseded by 92171-1563
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
SCREW-PAN-CROS
220B0535
Superseded by 220AA0535
|
$3.58 | ||
|
Available to order. Add to View Price |
|||
|
#11
CLAMP,AIR CLANER DUCT
92037-1186
|
$10.05 | ||
|
Available to order. Add to View Price |
|||
|
#12
CAP,AIR CLEANER
11012-1123
|
$23.86 | ||
|
Available to order. Add to View Price |
|||
|
#13
NUT,AIR CLEANER CAP
92016-062
|
$4.63 | ||
|
Available to order. Add to View Price |
|||
|
#14
COVER,AIR FILTER,F.BK
14025-1192-21
|
$80.65 | ||
|
Available to order. Add to View Price |
|||
|
#15
SCREW,6X14
92009-1287
Superseded by 92172-0401
|
$2.48 | ||
|
Available to order. Add to View Price |
|||
