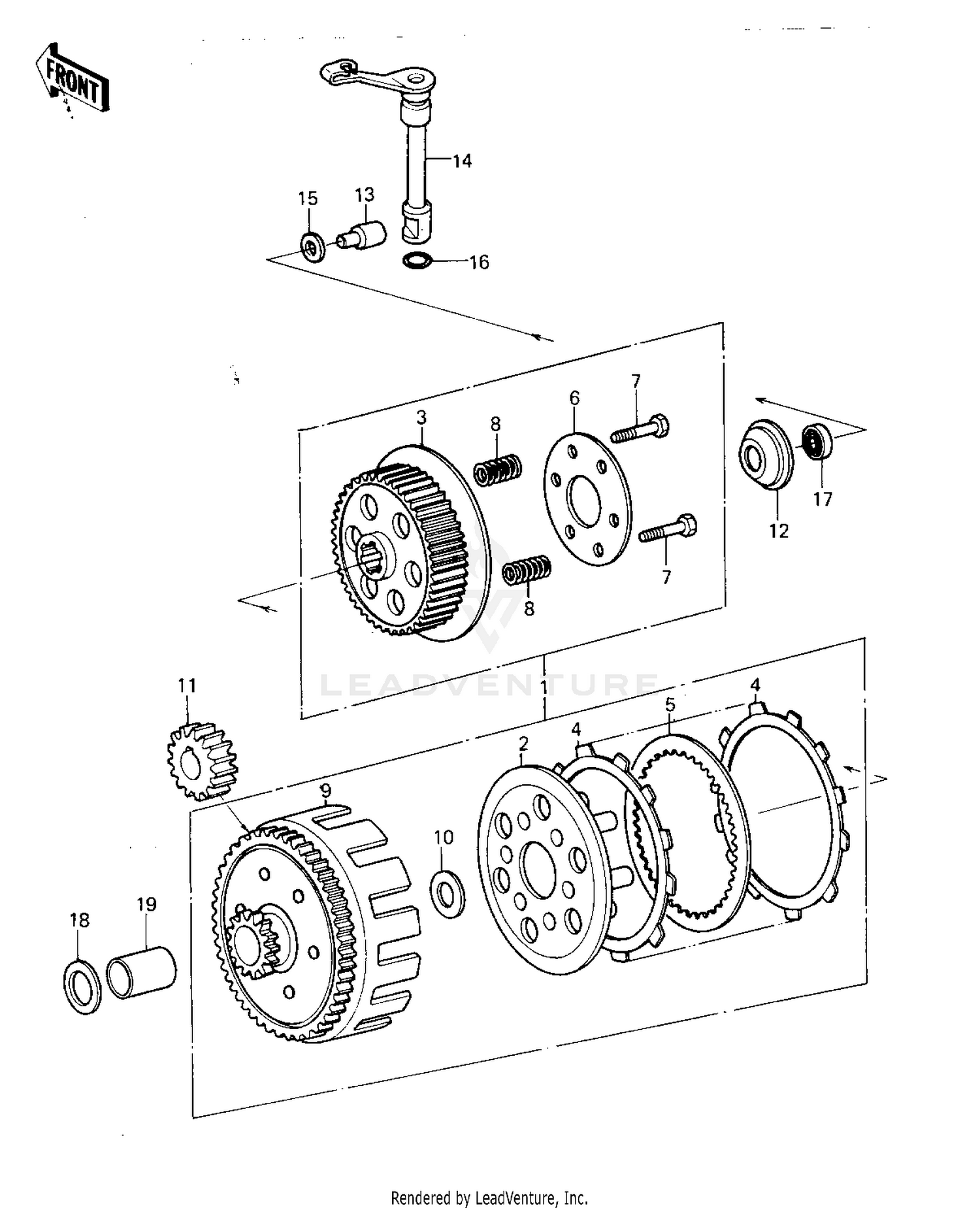

Clutch ('80 A6) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CLUTCH-ASSY
13081-1060
|
$363.01 | ||
|
Available to order. Add to View Price |
|||
|
#2
WHEEL,CLUTCH
13086-1001
|
$28.32 | ||
|
Available to order. Add to View Price |
|||
|
#3
HUB,CLUTCH
13087-1002
|
$53.32 | ||
|
Available to order. Add to View Price |
|||
|
#4
PLATE-FRICTION
13088-1015
|
$19.82 | ||
|
Available to order. Add to View Price |
|||
|
#5
PLATE CLUTCH STEEL
13089-003
|
$13.71 | ||
|
Available to order. Add to View Price |
|||
|
#6
HOLDER,CLUTCH
13091-015
|
$21.78 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT,HEX HEAD,5X18
110G0518A
|
$0.68 | ||
|
Available to order. Add to View Price |
|||
|
#8
SPRING,CLUTCH
92081-123
|
$8.72 | ||
|
Available to order. Add to View Price |
|||
|
#9
HOUSING,CLUTCH
13095-1028
|
$297.51 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER,17.3X30X1.4
92022-270
|
$9.50 | ||
|
Available to order. Add to View Price |
|||
|
#11
GEAR,PRIMARY,20T
13097-1032
|
$56.40 | ||
|
Available to order. Add to View Price |
|||
|
#12
HOLDER,CLUTCH PUSHER
13091-1071
|
$26.63 | ||
|
Available to order. Add to View Price |
|||
|
#13
PUSHER,CLUTCH
13114-1004
|
$32.12 | ||
|
Available to order. Add to View Price |
|||
|
#14
LEVER ASSY,CLUTCH RLS
13236-1022
|
$43.63 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER-PLAIN,6MM
411B0600
Superseded by 411AA0600
|
$2.84 | ||
|
Available to order. Add to View Price |
|||
|
#16
O RING,10MM
670B2010
|
$1.47 | ||
|
Available to order. Add to View Price |
|||
|
#17
BEARING-BALL,626MC3
92045-1211
Superseded by 92045-1304
|
$11.46 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER,17.3X30X1.4
92022-270
|
$9.50 | ||
|
Unavailable |
|||
|
#19
BUSHING,CLUTCH
92028-1018
|
$15.32 | ||
|
Available to order. Add to View Price |
|||
