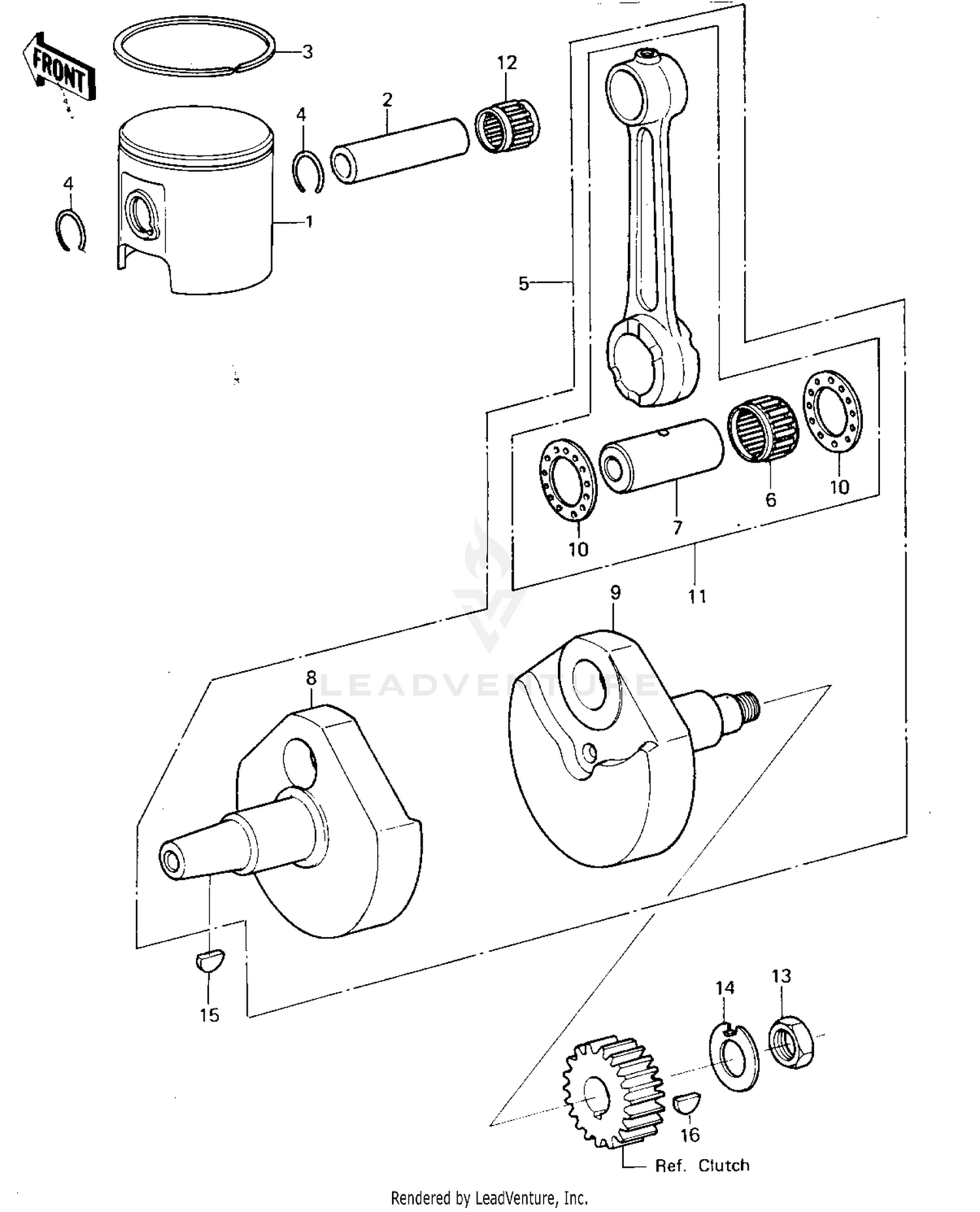

Crankshaft/piston ('80 A6) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PISTON-ENGINE
13001-1052
|
$164.98 | ||
|
Available to order. Add to View Price |
|||
|
#2
PIN-PISTON
13002-1003
|
$21.42 | ||
|
Available to order. Add to View Price |
|||
|
#3
RING,PISTON,S.T.D
13003-1060
|
$110.80 | ||
|
Available to order. Add to View Price |
|||
|
#4
CIRCLIP PISTON PIN
92036-004
|
$0.64 | ||
|
Available to order. Add to View Price |
|||
|
#5
CRANKSHAFT ASSY
13031-1032
|
$192.85 | ||
|
Available to order. Add to View Price |
|||
|
#6
NEEDLE BEARING,BIG EN
13034-1002
|
$111.29 | ||
|
Available to order. Add to View Price |
|||
|
#7
PIN,CRANK
13035-1001
|
$45.78 | ||
|
Available to order. Add to View Price |
|||
|
#8
CRANKSHAFT,L.H
13037-1062
|
$164.47 | ||
|
Available to order. Add to View Price |
|||
|
#9
CRANKSHAFT,R.H
13037-1063
|
$243.62 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER SIDE
92026-011
|
$9.54 | ||
|
Available to order. Add to View Price |
|||
|
#11
CONNECTING ROD ASSY
13044-5017
|
$261.69 | ||
|
Available to order. Add to View Price |
|||
|
#12
NEEDLE BEARING,SML EN
13033-1001
|
$26.98 | ||
|
Available to order. Add to View Price |
|||
|
#13
NUT 12MM
92015-006
|
$5.41 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER,LOCK
92022-1063
|
$7.73 | ||
|
Available to order. Add to View Price |
|||
|
#15
KEY,WOODRUFF
92038-001
|
$4.80 | ||
|
Available to order. Add to View Price |
|||
|
#16
WOODRUFF KEY PRY PINI
92038-003
|
$5.27 | ||
|
Available to order. Add to View Price |
|||
